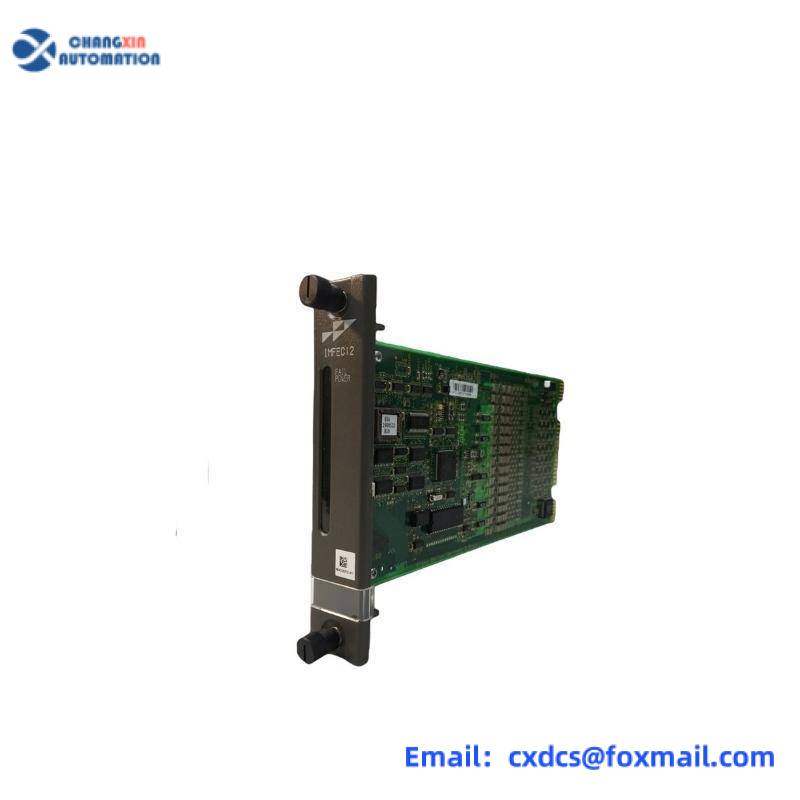

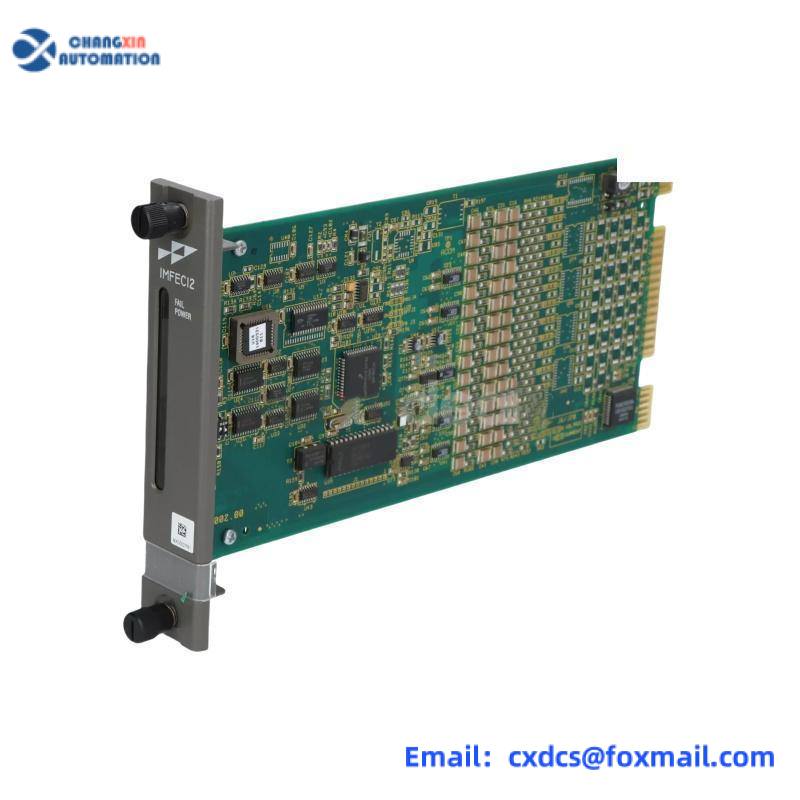

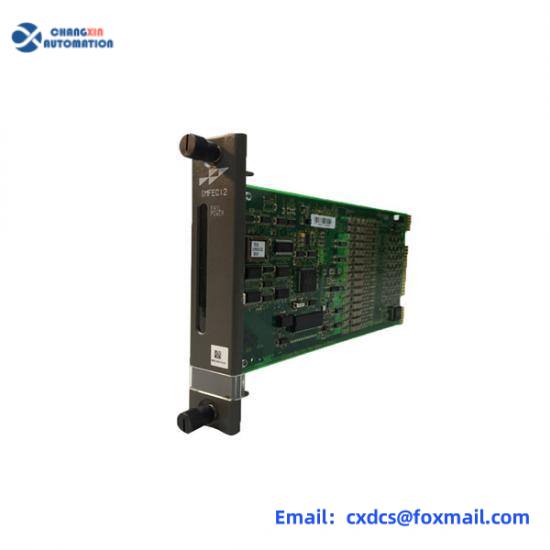

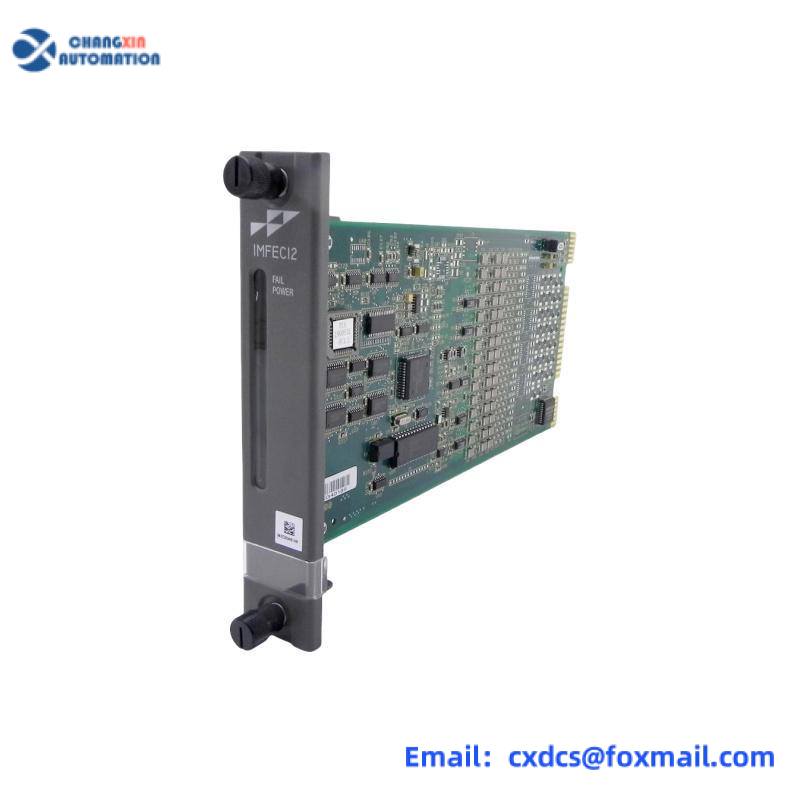

ABB IMFEC12 Analog Input Module – Precision Control and Monitoring for Industrial Automation
The ABB IMFEC12 Analog Input Module delivers high-precision analog signal acquisition and conversion for demanding industrial automation applications. Engineered to enhance system reliability and measurement accuracy, this module ensures seamless integration with ABB control systems while supporting flexible configuration for diverse operational requirements.
Key Features
- 16-bit High-Resolution Conversion – Captures subtle analog signal variations with ±0.1% accuracy for precise process monitoring
- 4-Channel Input Configuration – Supports simultaneous multi-sensor integration with isolated channel design
- Wide Operating Range – Functions reliably from -40°C to +85°C in harsh industrial environments
- Compact DIN-Rail Mounting – Space-efficient 229x93x65mm design with standard 35mm rail compatibility
- ±10V Signal Range – Accommodates diverse analog input sources including temperature, pressure, and flow sensors
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB IMFEC12 |
| Input Range | ±10V DC |
| Resolution | 16-bit (0.0015% of range) |
| Channels | 4 isolated differential channels |
| Communication | Modbus RTU over RS485 |
| Power Supply | 24V DC (±20% tolerance) |
| Environmental Rating | IP20, -40°C to +85°C operating temperature |
Application Fields
Engineered for mission-critical systems, the IMFEC12 excels in process control (chemical/petrochemical), power generation monitoring, HVAC automation, and manufacturing quality control. Its high noise immunity and isolation features make it ideal for applications requiring reliable signal integrity in electrically noisy environments.
