ABB PCS6000 Medium Voltage Full Power Converter for Wind Turbines PDF

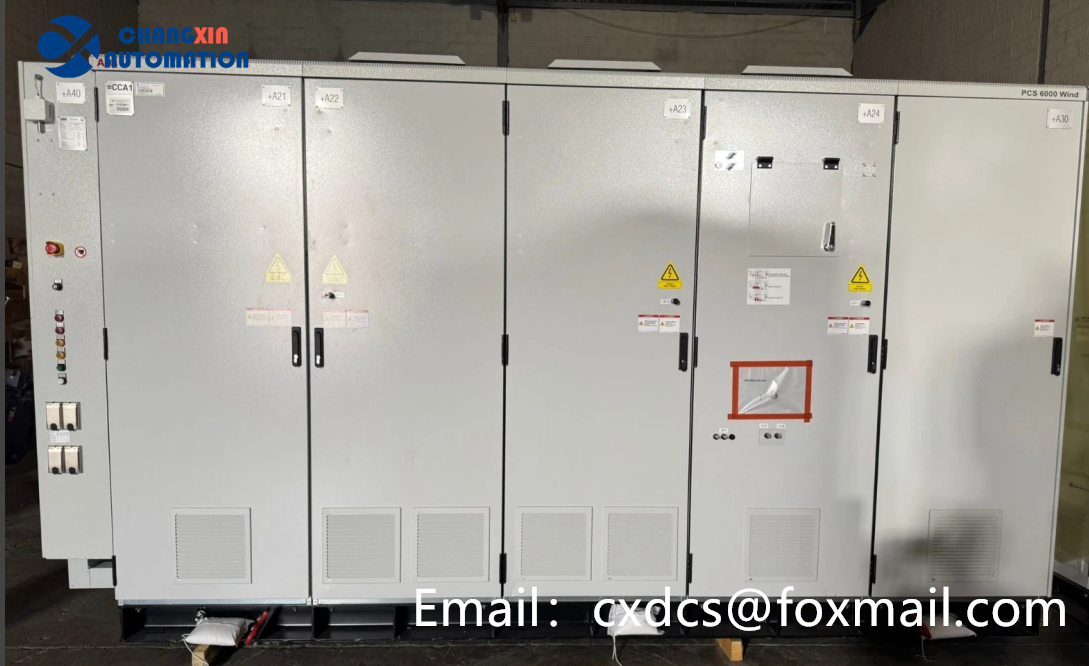

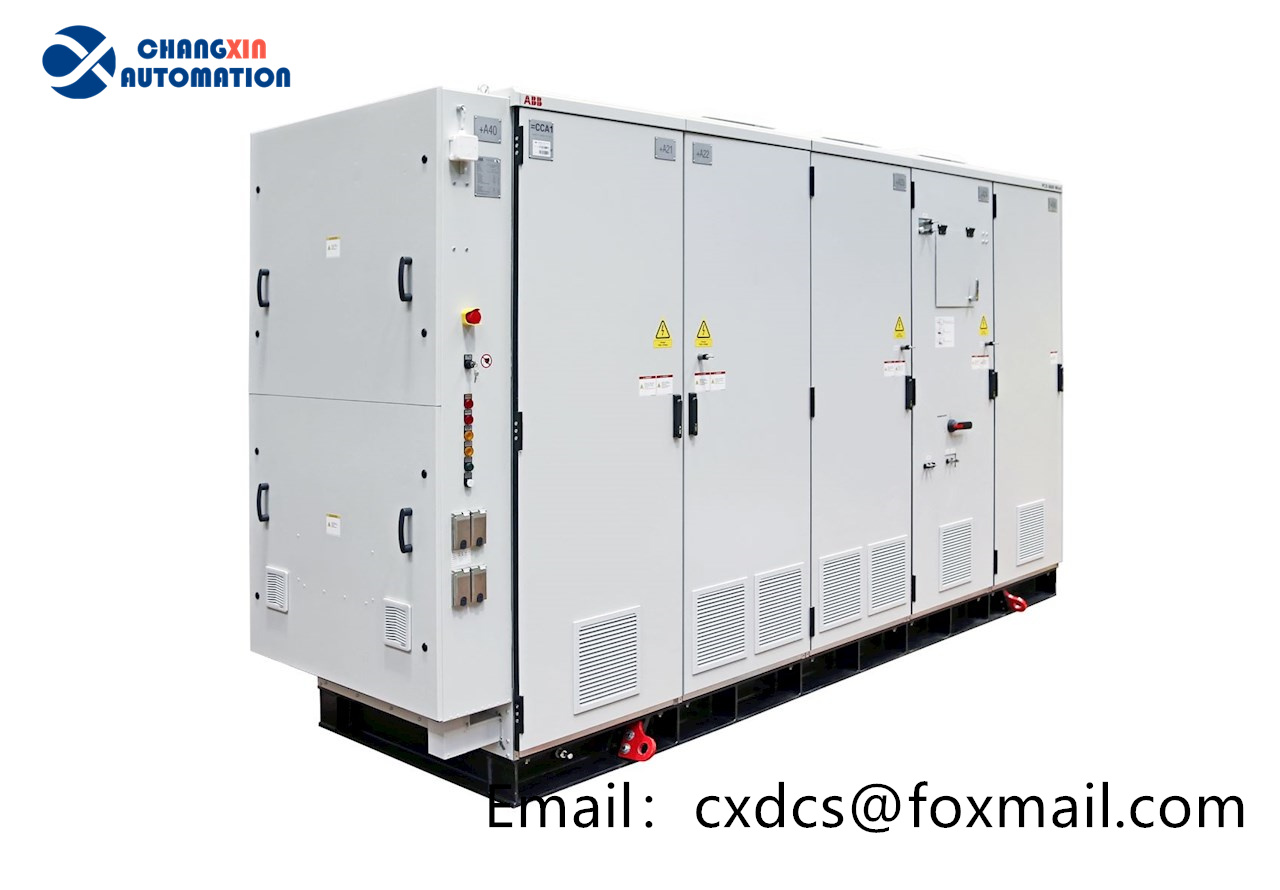

1.Product Overview：ABB PCS6000
The ABB PCS6000 is a medium voltage full power converter specifically designed for large-scale wind turbines and tidal energy applications, providing a reliable and efficient solution for converting variable frequency power generated by wind turbines into grid-compatible electricity. As part of ABB’s 6000-series of liquid-cooled IGCT (Integrated Gate-Commutated Thyristor) converters, the PCS6000 is renowned for its exceptional durability and reliable operation in demanding industrial environments.
This converter represents the next generation of full-size power converters, featuring a modular design that allows for easy customization to meet specific customer requirements while maintaining high efficiency and performance. With its compact footprint and lightweight design, the PCS6000 offers flexibility in installation, being suitable for both nacelle and tower base mounting configurations.
What truly distinguishes the PCS6000 is its ability to provide grid code compliance and fault ride-through capabilities, ensuring that wind farms can continue operating even during grid disturbances. This feature is particularly important for modern wind energy installations that must maintain stable connections to the power grid while delivering consistent power output.PCS6000
The PCS6000 has gained widespread acceptance in the global wind energy market, with certifications from leading testing organizations including DNV-GL, CGC (China General Certification Center), and UL. These certifications demonstrate the converter’s compliance with international standards and its suitability for deployment in various markets worldwide.
2.Technical Specifications and Performance Parameters：ABB PCS6000
2.1 Basic Technical Parameters
| Parameter | Value |
|---|---|
| Product Model | PCS6000 |
| Manufacturer | ABB |
| Product Type | Medium Voltage Full Power Converter |
| Power Rating | 4-15 MW |
| Voltage Rating | 3.3 kV |
| Voltage Range | 0 to 3.4 kV |
| Frequency Range (Generator Side) | 8 to 100 Hz |
| Frequency Range (Grid Side) | 50/60 Hz |
| Efficiency | Approximately 98% at rated point |
| Switching Technology | IGCT (Integrated Gate-Commutated Thyristor) |
| Cooling System | Liquid-cooled |
| Protection Rating | IP54 |
| Ambient Operating Temperature | -15°C to +50°C |
| Altitude | Up to 1000 meters |
| Control System | ABB AC 800PEC |
| Fieldbus Interfaces | Profibus DP/DPV1, Profinet IO, Modbus TCP, EtherCAT, CANopen |
2.2 System Architecture and Design Features
The PCS6000 employs a 3-level, 4-quadrant VSI-NPC (Voltage Source Inverter-Neutral Point Clamped) topology, which provides several advantages over traditional converter designs. This configuration features a fuse-less design, eliminating the need for fuses and reducing maintenance requirements while enhancing system reliability.

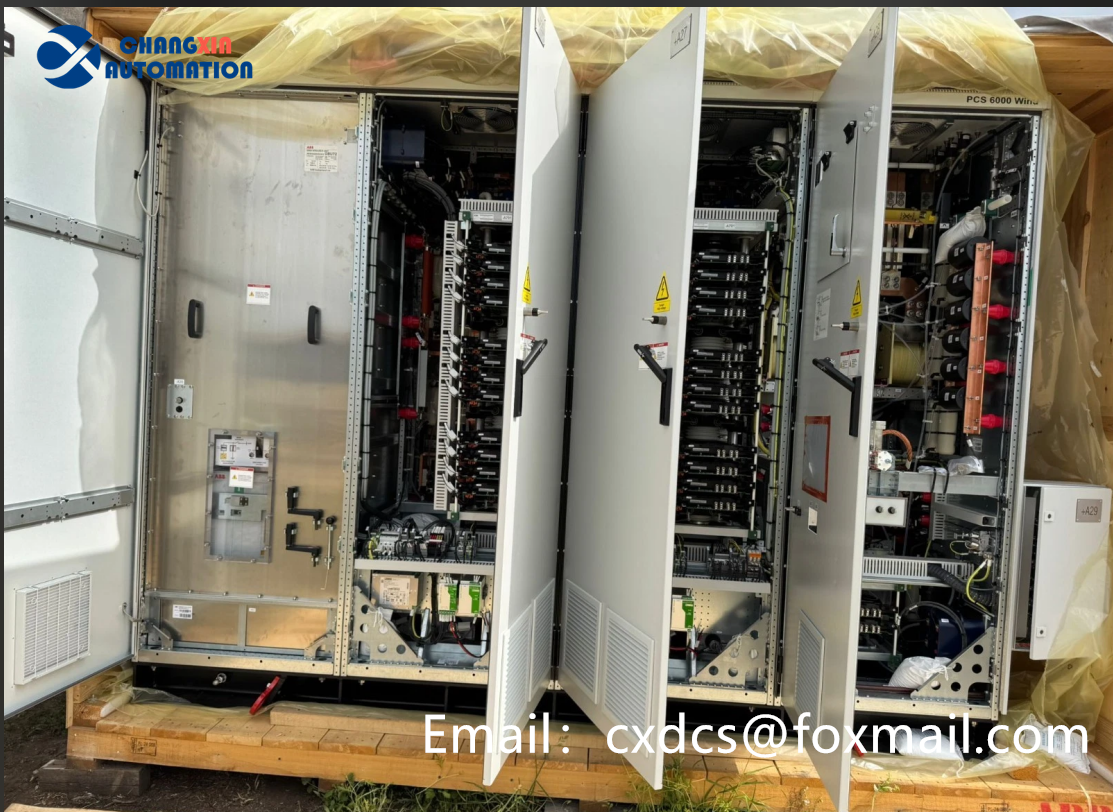

The converter system includes all necessary components integrated within the IP54-rated cabinets, creating an unmatched power density in the industry. Key integrated components include:
- Voltage limiting unit
- Precharging unit
- Cooling unit
This all-inclusive design approach simplifies installation and reduces the overall system footprint, making the PCS6000 suitable for both new installations and retrofits of existing wind turbines.
2.3 Control and Communication Capabilities
The PCS6000 incorporates advanced control algorithms to optimize the performance of wind turbines:
- Generator-side control using pulse width modulation (PWM)
- Grid-side control using optimized pulse pattern technology
These control strategies work together to ensure that the wind turbine operates at the maximum power point at all times, maximizing energy capture and system efficiency. The converter’s control system is based on the ABB AC 800PEC, a robust and proven automation platform designed for demanding industrial applications.
For communication and integration with higher-level systems, the PCS6000 offers multiple fieldbus interfaces, including:
- Profibus DP/DPV1
- Profinet IO
- Modbus TCP
- EtherCAT
- CANopen
These interfaces enable seamless integration with wind turbine control systems, SCADA systems, and other components of modern wind farms. The converter also supports Ethernet-based service and maintenance access through an installed IPC, with VPN remote access capabilities for convenient remote monitoring and troubleshooting.
3.Core Functions and Technical Advantages：ABB PCS6000
3.1 Advanced Power Conversion Technology
The PCS6000 utilizes high-efficiency IGCT technology, which represents a significant advancement over traditional power semiconductor devices. IGCTs combine the advantages of both transistors and thyristors, offering:
- Higher power handling capabilities
- Lower conduction losses
- Faster switching speeds
- Improved thermal performance
This technology enables the PCS6000 to achieve conversion efficiencies of approximately 98% at rated load, significantly reducing energy losses and improving the overall efficiency of wind power generation systems. The converter’s design also ensures low part count, which contributes to its high reliability and availability.
3.2 Grid Code Compliance and Fault Ride-Through
One of the most critical features of the PCS6000 is its ability to comply with stringent grid connection requirements and provide fault ride-through capability. This means that the converter can maintain its connection to the grid and continue operating normally during voltage dips or other grid disturbances, which is essential for modern wind farms that must provide stable and reliable power to the grid.
The PCS6000 has been designed to meet grid code requirements in major markets around the world, including:
- United States
- European countries
- China
This global compliance allows wind farm operators to deploy the PCS6000 in diverse geographical locations without needing to modify the converter for each specific market.
3.3 Maximum Power Point Tracking
The PCS6000 full-scale converter technology enables wind turbines to operate consistently at their maximum power point, regardless of wind conditions. This is achieved through advanced control algorithms that continuously optimize the generator’s operating point based on real-time wind speed and other environmental factors.
By ensuring that the wind turbine always operates at the optimal efficiency point, the PCS6000 helps maximize energy production, which is particularly important for offshore wind farms where installation and maintenance costs are high. In fact, wind farms equipped with the PCS6000 have demonstrated energy production that is approximately 10% higher than initially estimated, significantly improving the return on investment for wind farm operators.
3.4 Modular Design and Customization Options
The modular design of the PCS6000 allows for easy customization to meet specific customer requirements while maintaining high reliability and performance. This modular approach offers several key benefits:
- Simplified maintenance and component replacement
- Easier system upgrades and expansions
- Greater flexibility in system configuration
- Reduced inventory requirement
The converter’s design also features a low part count, which contributes to its high availability and reduces the likelihood of component failures. Additionally, the PCS6000 employs a fuse-less design, eliminating the need for fuse replacement and further reducing maintenance requirements.
3.5 Lightweight and Compact Design
The PCS6000 stands out in the market for its lightweight construction and compact installation footprint, which enable fast and easy installation either in the wind turbine nacelle or tower base. This design flexibility is particularly valuable for offshore wind turbines, where space is limited and weight considerations are critical.
The converter’s compact design also results in lower cable installation costs and more efficient use of available space within wind turbine nacelles or towers. Despite its compact size, the PCS6000 offers exceptional power density, packing high power conversion capabilities into a relatively small package.
3.6 High Reliability and Availability
With its robust construction and proven IGCT technology, the PCS6000 is designed to deliver exceptional reliability and availability in even the most challenging operating environments. Key factors contributing to its high reliability include:
- Liquid-cooled IGCT technology that maintains optimal operating temperatures
- Low part count design reduces potential failure points
- Fuse-less design eliminates fuse-related failures
- IP54 protection rating provides excellent protection against dust and water ingress
- Comprehensive diagnostic capabilities enable early detection of potential issues
These reliability features are backed by ABB’s extensive experience in developing power conversion solutions for the wind energy industry, ensuring that the PCS6000 meets the highest standards for performance and durability.
