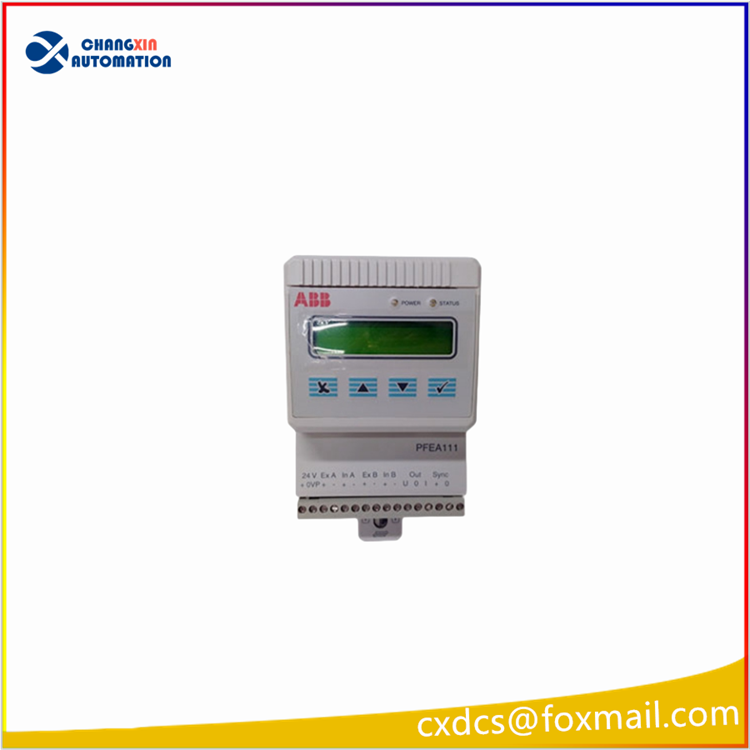

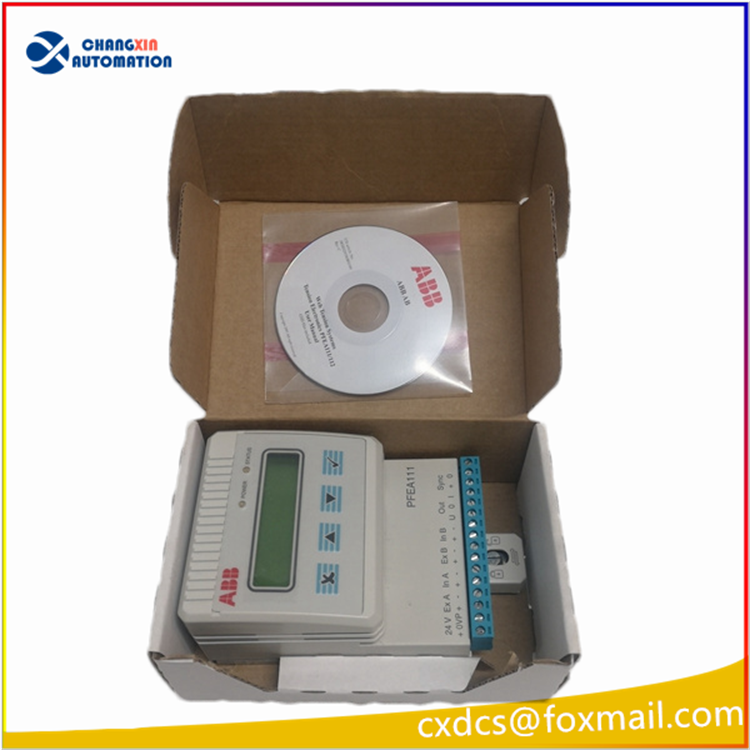

The ABB PFEA111-20 3BSE028140R0020 tension control module is a high-precision industrial tension control module launched by ABB. It is specifically designed for industrial scenarios such as sheet material processing, metal processing, papermaking, and textile manufacturing. The following is a detailed analysis of this module:
I. Core Functions
Tension Control: Supports constant tension mode. It can be connected to pressure sensors (such as ABB PFCL/PFTL series), brakes, clutches, and torque output devices like motors, enabling closed-loop tension control during the sheet processing process.
Signal Processing and Display: Features dual-channel tension sensor input, real-time display of total tension (SUM) and difference (DIFF), built-in digital filtering with an accuracy of ±0.1%, effectively suppressing tension fluctuations.
Communication and Integration: Integrates Profibus, Modbus, etc. protocols. Can be connected to ABB 800xA PLC or DCS systems, supports remote monitoring and data exchange, facilitating integration with existing automation systems.
Control Mode Switching: Supports manual/automatic mode switching. Users can set the target tension through the interface, adjust PID parameters, or enable “simulation mode” to pre-verify system behavior, reducing debugging time.
Technical Specifications
Electrical Characteristics:
Power Supply: DC 24V (18-36V)
Output: Supports 0-10V/4-20mA output
Maximum Load: 5A
Power Consumption: 7.5W
Response Time: Millisecond level
Mechanical and Environmental:
Size: 120mm×80mm×30mm
Weight: 0.2kg
Installation Method: DIN rail installation
Protection Level: IP20 (requires protection by the power cabinet)
Operating Temperature: -40°C to +70°C
Anti-EMC Interference: Compliant with EMC standards, suitable for strong electromagnetic environments (such as near frequency converters)
Expansion and Safety:
Supports cascading multi-module expansion, with a built-in self-diagnostic system (detecting sensor breakage, signal over-limit, etc.).
Includes overload/overheating protection functions to ensure safe operation of the equipment.
Application fields:
Traditional industries:
Metal processing: scenarios such as stainless steel cold rolling, aluminum foil cutting, etc., achieve a wide range of tension control from 7 to 280 kN, ensuring the stability of ultra-thin strip steel production.
Paper and printing: tension control for coating machines and intaglio printing machines, ensuring uniform tension of paper or film and avoiding breakage or wrinkling.
Textile and packaging: processes such as film stretching and yarn winding, through high-precision tension control to improve product quality.
Emerging fields:
Lithium battery separator coating: achieve a film tension fluctuation of ±0.5%, with a 12% increase in product qualification rate.
Photovoltaic backsheet cutting: precisely control tension to ensure cutting accuracy and material utilization rate.
