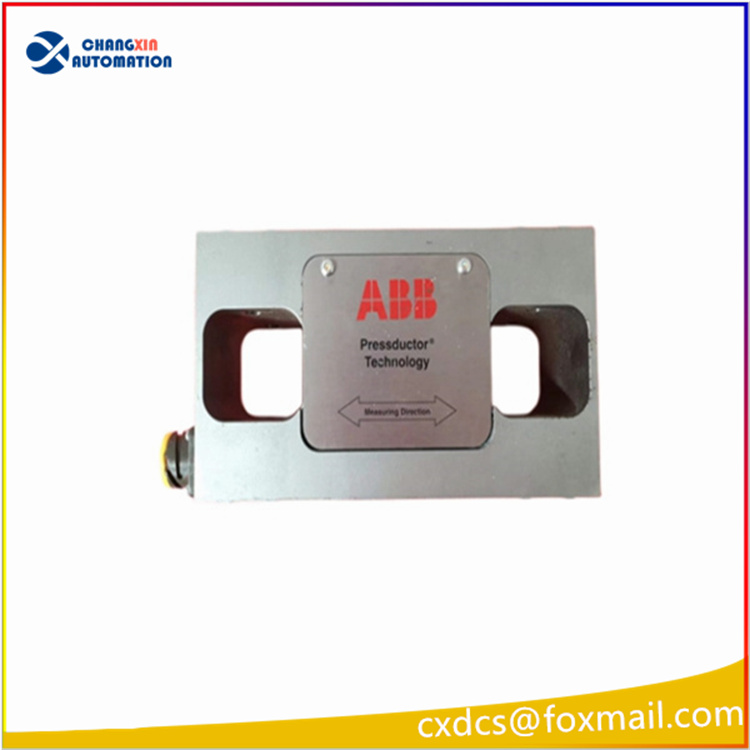

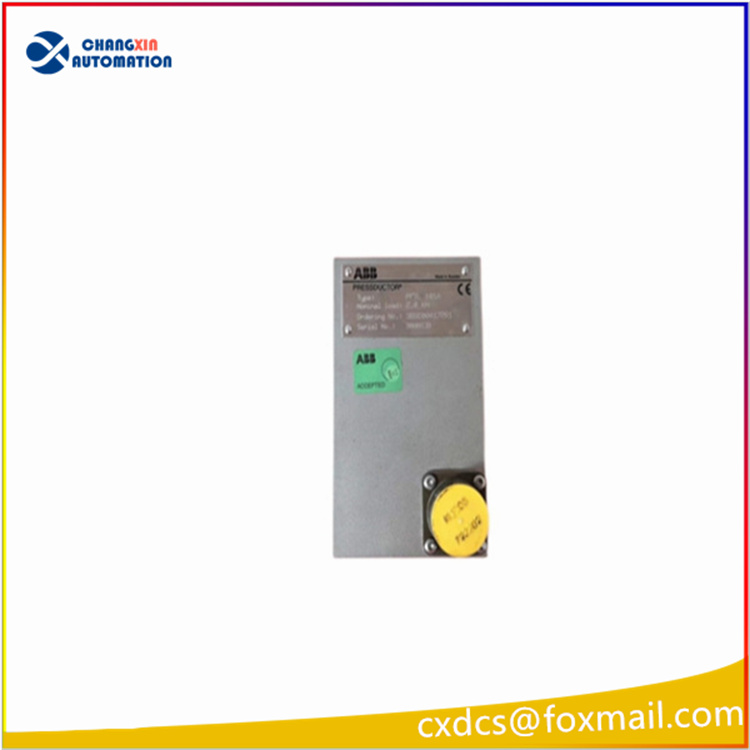

ABB PFTL 101B-10.0kN is a high-precision and highly stable tension sensor based on the pressurized magnetic (Pressductor®) technology. The following is a detailed introduction to this product:
I. Core Parameters
Rated Load: 10.0kN (approximately 1020kgf), suitable for medium and light industrial load scenarios.
Accuracy: Non-linear error ±0.03%FS, repeatability error ≤±0.2%FS, meeting high-precision measurement requirements.
Response Time: 125μs, supports bidirectional horizontal/vertical force measurement, compatible with high-speed dynamic tension control.
Protection Level: IP67 (optional IP66/IP68), excellent dust and water resistance, resistant to chemical corrosive media and 95% humidity.
Operating Temperature: -25℃ to +90℃, shock and vibration resistant (10Hz-200Hz/3Grms), suitable for extreme climates and vibrating environments.
Overload Capacity: Measurement direction overload 25kN, lateral anti-shock load 30kN, built-in temperature compensation algorithm ensures error <0.05%FS in the entire temperature range.
Cable Design: With protective hose, compatible with explosion-proof ATEX Zone 2 area, resistant to vibration and shock.
Signal and Communication
Output Signal: Supports 4-20mA analog signal or mV/V signal, compatible with industrial protocols such as Profibus DP, Modbus RTU, and EtherCAT.
System Integration: Can be seamlessly integrated with ABB Ability™ platform and PLCs like Siemens S7-1500 and Rockwell ControlLogix, enabling remote monitoring and data synchronization.
