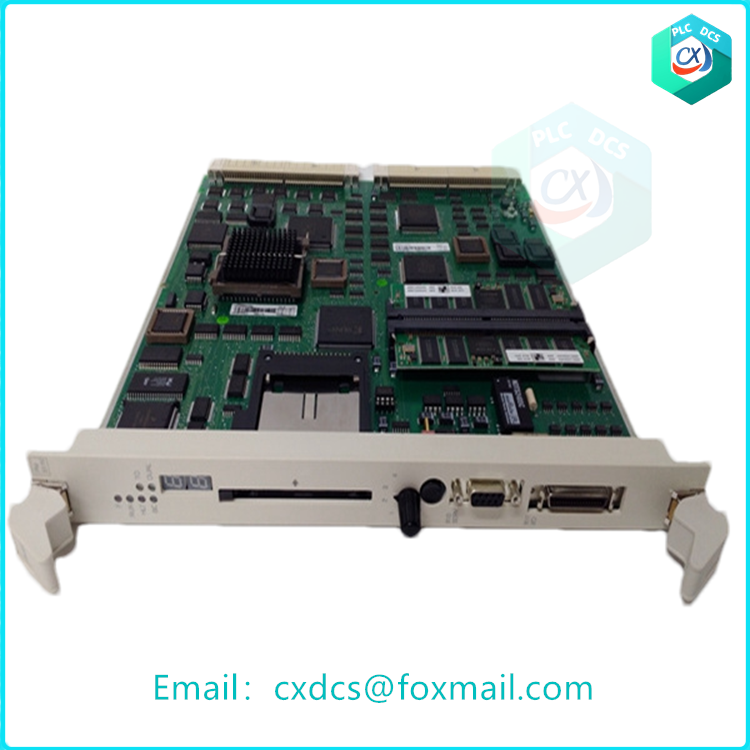

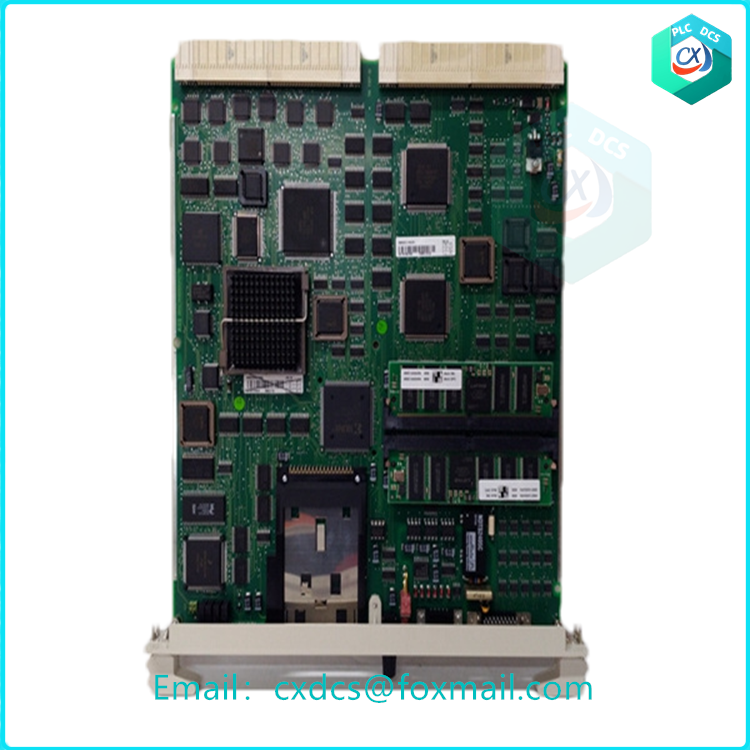

The ABB PM511V6 processor module is an industrial automation product of ABB. It is mainly used in ABB’s automation systems. The following is an introduction to this module:
I. Product Features
High-performance processor: The module contains a microprocessor (such as Motorola 68040) with a running frequency of 25 MHz, capable of quickly executing complex control algorithms and data processing tasks.
Large-capacity memory: The module is equipped with 8M or 16M bytes of dynamic random access memory (DRAM) and comes with error correction code (ECC), providing sufficient memory capacity to store the programs and data required by the control system.
Multiple communication protocols: The module supports a wide range of communication protocols, such as MODBUS, Profibus, Masterbus 300/300E, Advant Fieldbus 100, etc., to enable communication with other control devices, sensors, and actuators, and achieve the coordinated operation of the entire automation system.
Diagnostic function: There are indicator lights and character displays on the side of the module, which can be used for advanced system diagnosis, helping operators monitor the performance of the system and perform troubleshooting when necessary.
Modular design: The processor module usually has a modular design, which can be easily integrated with other modules to expand the functionality of the control system.
High reliability: ABB’s processor modules usually have high reliability to ensure the stability and continuity of the automation system.
Operating equipment and interfaces
There is a four-digit rotary switch for starting and mode selection, as well as a restart button, on the front of the module.
The module also has a connection port for S100 I/O bus communication.
The input voltage of the module is 24V DC, the output voltage is the output voltage of the frequency converter, the output power is 16kW, and the frequency range is 0 – 400Hz.
Application scenario
The ABB PM511V processor module is applicable to various application scenarios such as industrial automation, power systems, process control, manufacturing, building automation, transportation systems, water treatment, and food and beverage industries. For example:
In industrial automation systems, it can be used for control of production lines, factories and manufacturing processes.
In the power industry, it can be used for monitoring and controlling power plants, substations or distribution systems.
In process industries such as chemicals, oil and gas, etc., it can be used for monitoring and regulating production processes.
