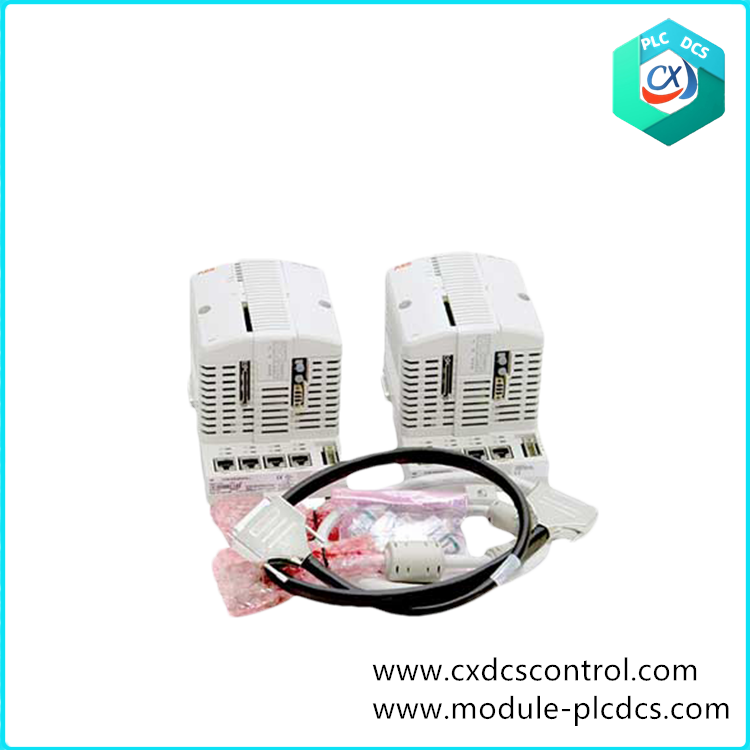

ABB PM862K02 3BSE081636R1 Programmable logic controller

ABB PM862K02 3BSE081636R1 is a programmable logic controller (PLC), the following is a detailed introduction:

1. Basic information
Model: 3BSE081636R1
Brand: ABB
Use: Control
Application scope: Automation
Certification: Has obtained EMC certification to ensure stable operation in various electromagnetic environments
Second, hardware characteristics
CPU board: Contains microprocessor and RAM memory, real-time clock, LED indicator, INIT button and CompactFlash interface.
Communication port:
The base plate has two RJ45 Ethernet ports (CN1 and CN2) for connecting to the control network.
There are two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is the RS-232C port with the modem control signal, while the other port (COM4) is isolated and used to connect to the configuration tool.
Redundancy function: Support CPU redundancy for higher availability (CPU, CEX bus, communication interface and S800 I/O), built-in redundant Ethernet communication port, improve system availability and reliability.
Installation: Simple DIN rail connection/removal procedure using slide and locking mechanism.
Other features:
IP20 protection, no case required.
The 800xA control builder can be used for configuration.
Low power design, reduce energy consumption, no external fan.
Modular design allows for gradual expansion.

3. Performance parameters
Clock frequency: 67 Mhz
Memory: 32 MB of memory is available for applications
Flash: 23,521 MB for storage
Network time switching: Processor type MPC866
Number of applications: Up to 32 applications per controller
Number of programs: 64 programs per application
Number of graphs: 128 graphs per application
Number of tasks: 32 tasks for each controller
I/O capacity:
CPU (CPU) 1 electrical+7 optical components
I/O Cluster on Modulebus with red: CPU (CPU) 7 Optical, maximum I/O capacity on module bus 96 (single PM862) or 84 (red PM862)
Ethernet channel: Two Ethernet interfaces, conforming to IEEE 802.3 standard, 10 mbit, RJ-45 interface
Real-time clock stability: 100 ppm (approximate), that is, 1 hour/year
