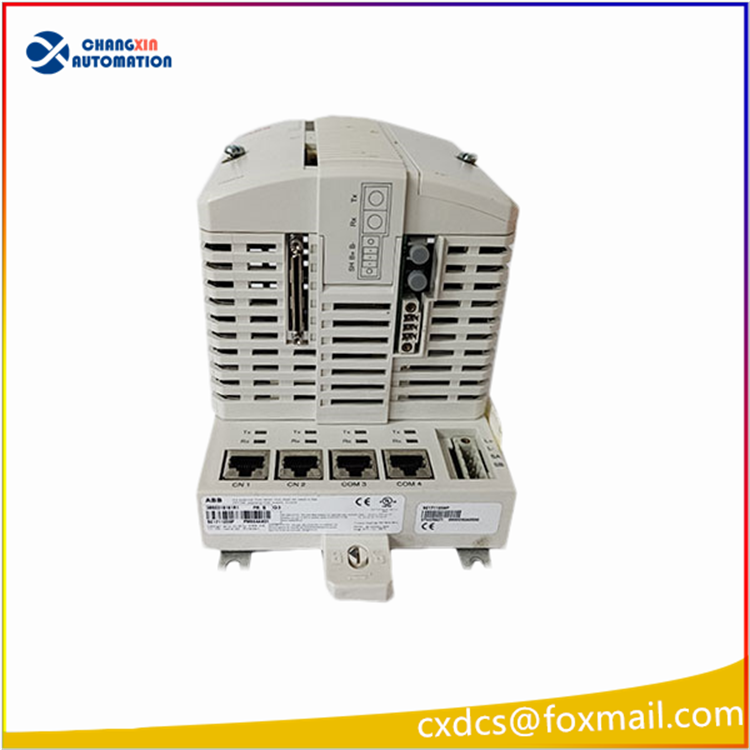

The ABB PM864AK01 3BSE018161R1 controller module is a high-performance and highly reliable industrial controller produced by ABB. It is part of the ABB AC 800M series and is widely used in industrial automation and control systems. The following is an introduction to this module:
I. Core Function
Complex Control Strategy Execution: The PM864AK01 controller module adopts a multi-core processor architecture with a clock frequency of up to 96 MHz, enabling efficient execution of complex control strategies and meeting the control requirements of large industrial installations.
Massive I/O Data Processing: The module is equipped with a large-capacity memory, capable of handling massive I/O data and supporting advanced process optimization tasks, ensuring the stable operation of the system.
System Communication Coordination: As the core control component of the ABB Ability™ 800xA distributed control system, the PM864AK01 module is responsible for coordinating system communication, ensuring real-time data transmission and sharing.
Redundant Switching Support: It supports 1:1 hardware hot standby redundancy configuration. The primary and backup controllers synchronize the program status, process data, and internal registers through a dedicated optical fiber synchronous link in real time. In the event of a failure, a non-disruptive switch can be completed within 100 milliseconds, ensuring the continuous and uninterrupted execution of control tasks.
Technical Specifications
Processor: Multi-core processor, clock frequency 96 MHz.
Memory: 32MB RAM, 256MB flash memory, available application RAM 23.522MB.
Communication interfaces:
2 Ethernet RJ45 ports (CN1, CN2), used for connecting control network.
2 serial ports (COM3, COM4), among which COM3 is an RS-232C port, and COM4 is an isolated serial port, used for connecting configuration tools.
Supported protocols: TCP/IP, OPC UA, PROFINET, Modbus TCP, IEC 61850 and other mainstream industrial protocols.
Rated power supply: 24VDC (19.2 – 30VDC).
Power consumption: Typical 6.9W, maximum 11.4W.
Operating temperature range: 0°C to 60°C.
Storage temperature range: -40°C to 85°C.
Relative humidity: 5% to 95%, no condensation.
Vibration resistance: 2g (5 – 500Hz).
Protection level: IP20.
Physical dimensions: 196mm × 119mm × 135mm (including base).
Physical weight: Approximately 1.2kg.
Installation method: DIN rail installation, compatible with AC 800M dedicated rack (such as TP867).
Application fields
Petrochemical industry: Used to control and monitor various equipment and systems in the petrochemical production process to ensure the safe and stable operation of production.
Electricity and energy industry: Used for monitoring and controlling generators, switchgear, transformers and power distribution systems in the power system, improving the reliability and efficiency of the power system.
Metallurgical and steel industry: Used to control and monitor various equipment and systems in the metallurgical and steel production process to optimize the production process and improve product quality.
Pharmaceutical industry: Used for automated control in the pharmaceutical production process to ensure the accuracy and consistency of the production process and improve drug quality.
Paper industry: Used for automated control in the paper production process to optimize the production process and improve production efficiency and product quality.
Water treatment industry: Used for automated control in the water treatment process to ensure stable water quality compliance and improve water treatment efficiency.
Basic materials industry: Used for automated control in the production process of basic materials to optimize the production process and improve production efficiency and product quality.
Aerospace industry: Used for automated control in the aerospace field to ensure the safe and stable operation of aircraft and spacecraft.
Industrial automation industry: As the core control component of industrial automation systems, it is widely used in various industrial automation scenarios.
