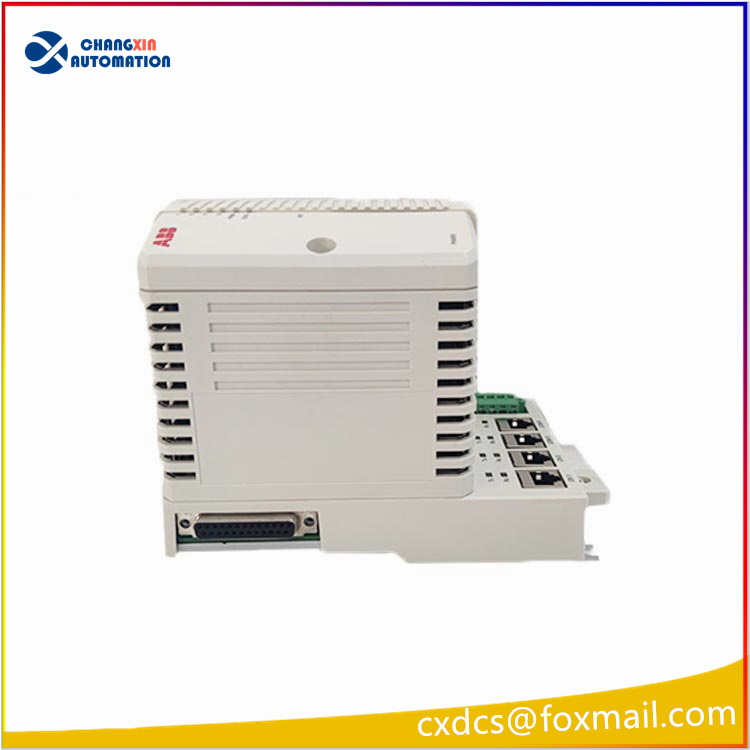

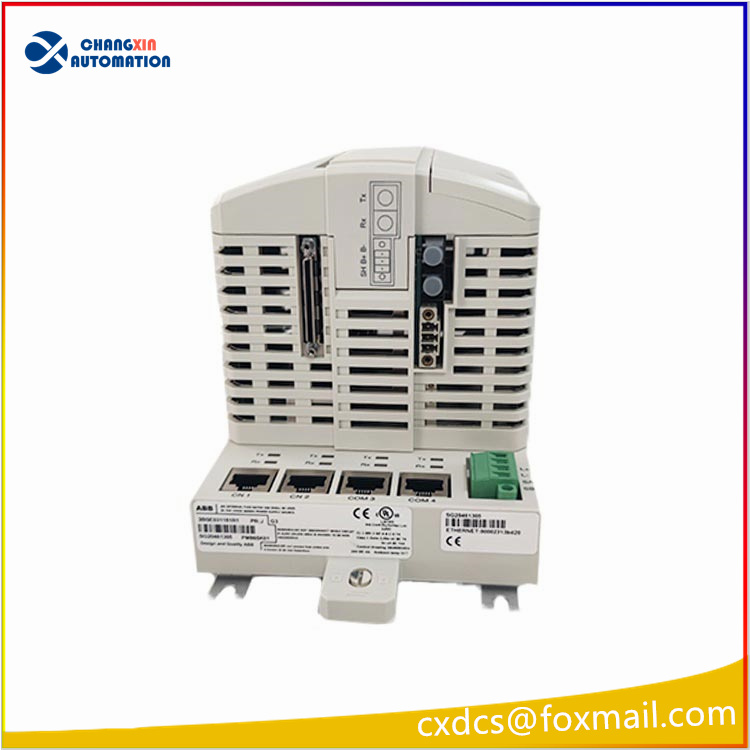

ABB PM865K01 3BSE031151R1 processor module

Product Description

The ABB PM865K01 3BSE031151R1 is a high-performance redundant controller module in the ABB AC800M series, specifically designed for core control tasks in large-scale industrial process automation systems. This module integrates key components such as a multi-core industrial-grade CPU, large-capacity memory, a real-time clock, LED indicators, an initialization button, and a CompactFlash interface, providing powerful data processing capabilities and rapid response characteristics. It supports redundant hot-standby configurations, enabling seamless switching in the event of critical component failures to ensure high system availability and continuity.

Parameters

• Brand: ABB
• Product Series: AC800M Series Redundant Controller
• Model: PM865K01 3BSE031151R1
• Operating Voltage: 24VDC wide-range adaptation (20.4-28.8VDC)
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Protection Class: IP20 (rack-mounted installation)
• Installation Method: 3U rack-mounted installation (compatible with ABB AC800M controller racks)
• Processor: Multi-core industrial-grade CPU, 1.2GHz clock speed
• Memory Configuration: 2GB DDR3 RAM, 4GB Flash
• Programming Environment: ABB ControlBuilderM (supports IEC 61131-3 standard programming languages)
• Control Cycle: Minimum 0.1ms
• Redundancy Function: Supports hot-standby redundancy (1:1 redundant configuration), switching time ≤10ms
• Communication Interfaces: 2 PROFINET IO interfaces, 2 PROFIBUS DP interfaces, 1 Ethernet/IP interface, 1 Modbus TCP interface, 2 RS485 serial ports
• I/O Expansion Capability: Supports up to 256 distributed I/O modules, maximum 65,536 I/O points
• Current Consumption: Typical 400mA (24VDC), maximum 600mA (24VDC)
• Dimensions: 130mm × 400mm × 220mm (length × width × height)
• Weight: 2.8kg
• Power Consumption: Typical 9.6W, maximum 14.4W
• Certifications: CE, UL, CSA, IEC 61010-1, IEC 61508 SIL 3, IEC 61850

Performance

• High-Speed Processing Capability: The multi-core industrial-grade CPU, with a clock speed of 1.2GHz and 2GB DDR3 RAM, can rapidly process complex control logic and large-scale I/O data, with a control cycle as low as 0.1ms, ensuring real-time response to control instructions.
• Highly Reliable Redundant Design: Supports 1:1 hot-standby redundancy configuration with a switching time ≤10ms, enabling seamless switching in the event of critical component failures to avoid production interruptions and meet industrial-grade high-availability requirements.
• Flexible Programming and Configuration: Compatible with IEC 61131-3 standard programming languages, it allows flexible configuration through the ABB Control Builder M programming environment, adapting to various application scenarios such as continuous and discrete control.
• Multi-Protocol Communication Support: Integrates multiple industrial protocol interfaces including PROFINET, PROFIBUS, and Ethernet/IP, enabling seamless interconnection with distributed I/O modules, intelligent instruments, and upper-level systems, breaking down device compatibility barriers.
• Strong Environmental Adaptability: Designed for industrial-grade wide-temperature operation, it can stably operate in temperature ranges from 0°C to 60°C and relative humidity from 5% to 95% (non-condensing), adapting to complex environments such as industrial workshops and control rooms.
• Large-Scale Expansion Capability: Supports the expansion of up to 256 distributed I/O modules, with a maximum of 65,536 I/O points, covering multi-region and multi-device control needs in large-scale industrial installations.
• Comprehensive Self-Diagnostic Function: Built-in comprehensive self-diagnostic capabilities, it continuously monitors hardware status, redundant links, communication connections, and I/O channels, providing intuitive feedback on fault information for rapid problem localization and reduced maintenance costs.
• Safety Certification Guarantee: Complies with the IEC 61508 SIL 3 safety standard, it can be applied to safety-critical control systems, ensuring safe and controllable industrial production processes.

Applications

The ABB PM865K01 3BSE031151R1 processor module is widely used in fields such as petrochemicals, power system automation, metallurgical industry, cement manufacturing, water treatment, pharmaceutical industry, food and beverage processing, paper industry, chemical parks, new energy power generation (photovoltaic/wind power), rail transit power supply control, intelligent manufacturing, process industry automation, and urban heating network control.

Summary

The ABB PM865K01 3BSE031151R1 processor module, with its high performance, high reliability, flexible expansion, and strong environmental adaptability, is an ideal choice for large-scale industrial process automation systems. It not only meets the demands of complex control tasks but also ensures stable system operation and production safety through redundant design and safety certifications.
