Product Description

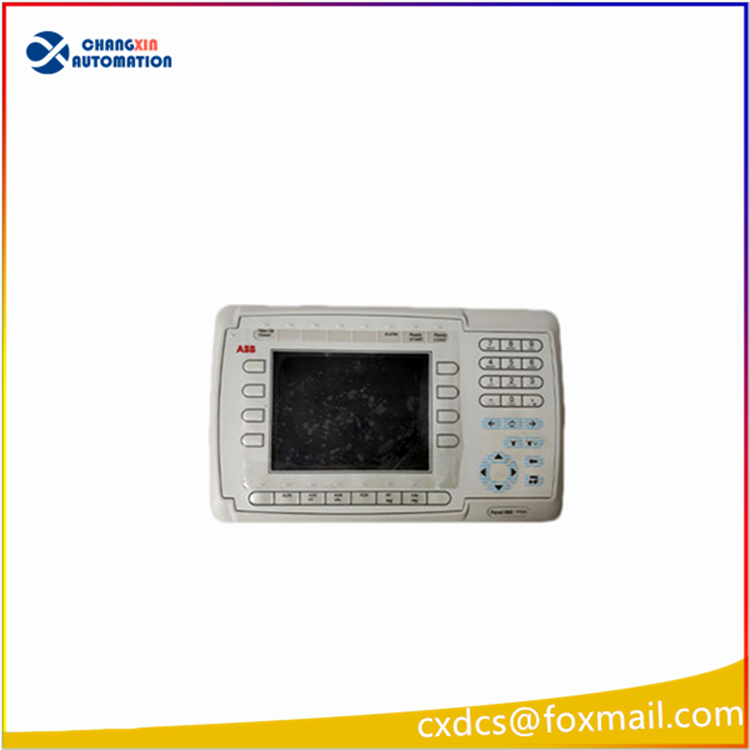

The ABB PP835 3BSE042234R1 is a robust operator interface panel (HMI) designed for the ABB Panel 800 series. It offers an intuitive, graphical interface that allows operators to efficiently monitor and control industrial processes. With its advanced features and rugged design, the PP835 is ideal for industrial environments that demand reliability and ease of use.
Key Features
- 15-inch TFT LCD Touch Screen: Provides excellent visibility and responsive touch input.
- Ethernet & Serial Communication: Supports seamless system integration with ABB 800xA and Compact Product Suite platforms.
- Advanced Visualization & Process Navigation: Combines intuitive graphics and alarm handling in a compact, panel-mounted form.
- Rugged Design: Front protection rated IP65, ensuring long-term durability even in harsh industrial conditions.
- Vibration, Dust & Temperature Resistance: Built to withstand varying temperatures, vibration, and dust, making it reliable in diverse environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PP835 |
| Part Number | 3BSE042234R1 |
| Type | Operator Panel (HMI) |
| Display Size | 15-inch TFT LCD |
| Resolution | 1024 × 768 pixels (XGA) |
| Touch Technology | Resistive touch screen |
| System Compatibility | ABB 800xA, Compact Product Suite, Panel 800 series |
| Interfaces | Ethernet, USB, RS-232/RS-485 |
| Power Supply | 24 V DC |
| Mounting | Panel-mounted |
| Protection Rating | IP65 (front), IP20 (rear) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions (W × H × D) | ~400 × 300 × 60 mm |
| Weight | 3.5 kg |
| Country of Origin | Sweden / Switzerland |
| Application Areas | Process monitoring, automation control, machine control |
FAQ
- Q1: What is the ABB PP835 used for?
A1: The PP835 is an operator interface panel (HMI) used for process visualization, control, and monitoring in industrial automation systems. - Q2: Is the ABB PP835 compatible with the ABB 800xA system?
A2: Yes, it integrates seamlessly with the ABB 800xA and Compact Product Suite systems for efficient process control. - Q3: What is the screen size and resolution of the PP835?
A3: The PP835 features a 15-inch TFT LCD display with a 1024 × 768 (XGA) resolution, offering clear visual output. - Q4: What kind of protection rating does it have?
A4: The front panel has an IP65 rating, ensuring protection against dust and moisture in industrial environments. - Q5: Can the PP835 replace newer ABB Panel 800 models?
A5: Although discontinued, the PP835 remains compatible with many existing ABB systems, making it ideal for legacy system maintenance.
