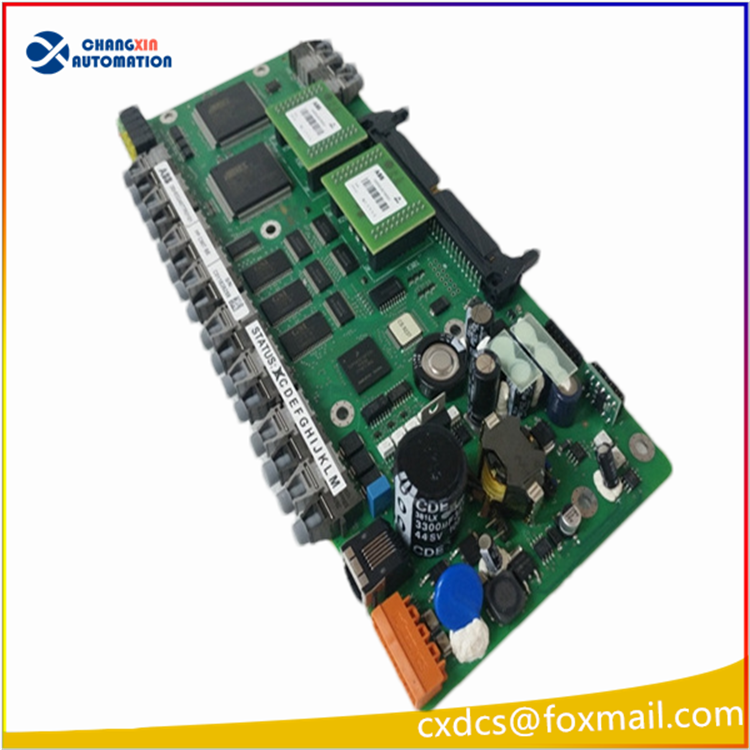

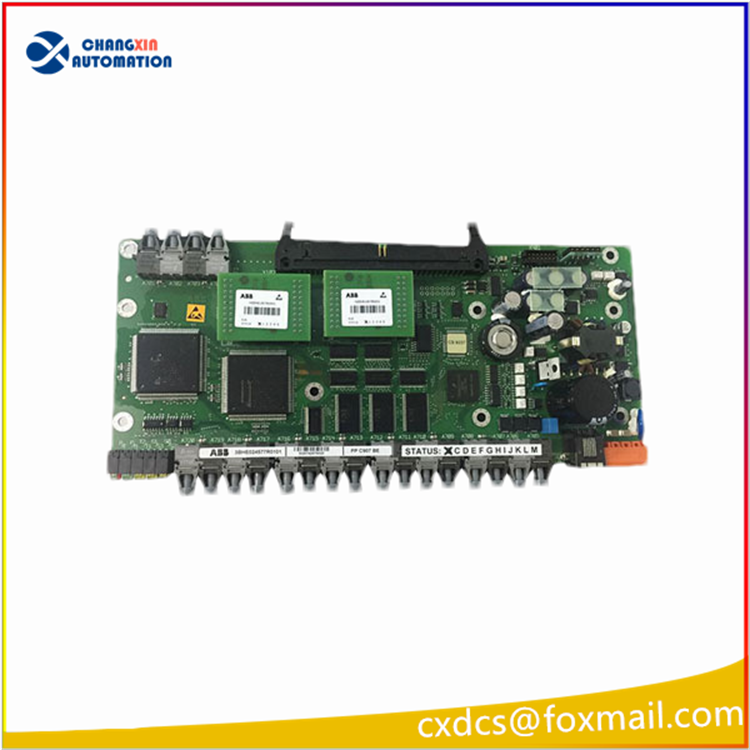

The ABB PPC907BE101 3BHE024577R0101 industrial control module is a high-performance and multi-functional industrial controller produced by ABB. It is part of the AC 800M series. Here is a detailed introduction to it:
I. Core Features
High-performance processor:
Equipped with a high-performance processor (such as a 32-bit ARM Cortex-A53 processor), it offers powerful computing and processing capabilities, capable of efficiently executing complex control algorithms and computing tasks, meeting the requirements for real-time control and data processing.
It adopts a multi-core processor architecture, enhancing parallel processing capabilities and system response speed, allowing for the simultaneous handling of multiple tasks and improving overall performance.
Large-capacity storage:
Built-in large-capacity RAM (such as 128MB) and Flash memory (such as 512MB) are used to store control programs, historical data, and configuration information.
Support for SD card expansion storage space, facilitating program backup, restoration, and data expansion.
Multiple communication interfaces:
Provides various industrial protocol interfaces such as Ethernet, PROFINET, EtherNet/IP, Modbus TCP, facilitating communication and data exchange with other devices.
Optional CAN, RS-232/RS-485 serial interfaces, compatible with various automation devices and upper-level systems.
May integrate redundant communication ports (such as dual Ethernet ports) to ensure communication reliability.
High reliability and durability:
Industrial-grade design, capable of adapting to a wide temperature range (-40°C to +70°C or -20°C to 60°C, depending on the model and configuration) and harsh electromagnetic environments.
Through strict quality control and testing, ensuring long-term stable operation.
Flexible expansion:
Supports multiple expansion slots, allowing connection of S800/S900 I/O modules, expanding digital and analog signal acquisition and control capabilities.
Modular design, facilitating system upgrades and maintenance.
Security:
Built-in rich security functions, meeting international safety standards such as IEC 61508, ensuring operational safety.
Functional Applications
Real-time Monitoring and Control:
Provides real-time monitoring and control functions, enabling operators to view the system status in real time and take necessary actions.
Supports visualization of equipment status and remote operation through human-machine interface (HMI) or SCADA system.
Programmable Logic:
Supports programmable logic, allowing users to define and configure logical functions to perform operations based on specific conditions.
Can be used to implement control and optimization of complex production processes.
Data Collection and Reporting:
Has data collection and reporting functions, which can be used to record historical data, generate reports, and conduct performance analysis.
Can collect data from various sensors and equipment, process it and output or upload to other systems.
Multiple Application Domains:
Suitable for various industries such as manufacturing, energy, chemical, construction, water treatment, etc.
In the field of industrial automation, it is widely used in various automation equipment and systems, such as robots, production line control, etc.
In the power system field, it can be used for power system monitoring, control, and data processing.
Technical Specifications
Model: PPC907BE101 3BHE024577R0101
Input voltage: DC 24V
Power consumption: Approximately 4.5 watts at maximum
Weight: Approximately 1.7 kilograms
Protection level: IP20 (some models may reach IP67)
Communication protocols: Supports Profibus DP/PA, Modbus RTU/TCP, OPC UA, Ethernet/IP, etc.
