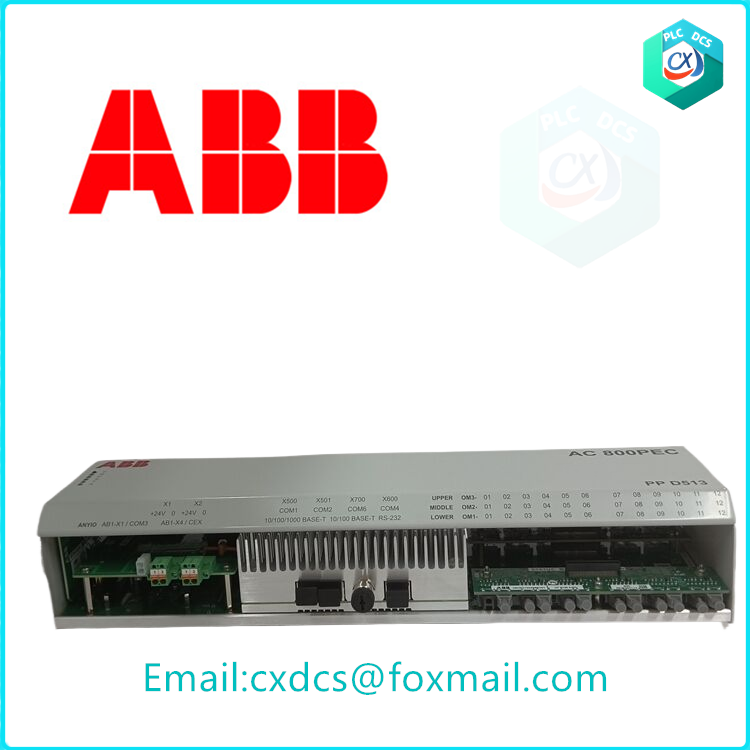

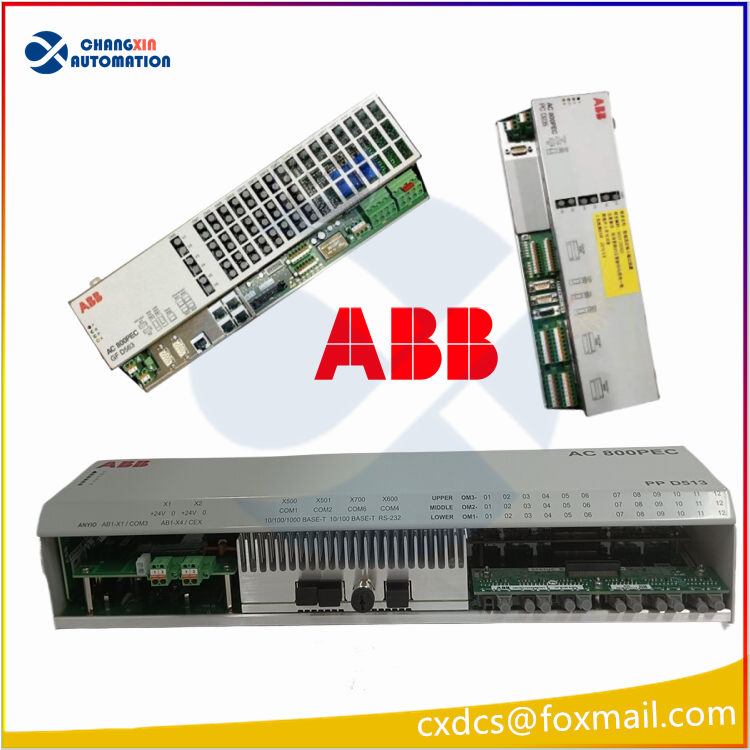

The ABB AC 800PEC excitation controller, identified by the model number PPD513AOC-100440, is a high-performance controller designed for both high-speed and low-speed process control tasks. It is part of ABB’s ControlIT product line, offering a versatile solution for various industrial applications, including power electronics, wind turbines, micro turbines, light rail propulsion, voltage restorers, drives, and more. Here’s a summary of its key features and capabilities based on the provided source:
High-Speed Performance
The AC800PEC is designed for high-speed control applications, providing very fast analog and digital process I/Os with a typical cycle time of 25 µs. This makes it suitable for demanding power electronics applications where speed and precision are critical.
Versatility for Different Processes
It can handle both high-speed processes and slow processes, such as cooling circuits and monitoring, making it a versatile controller for a wide range of industrial applications.
Integration and Programming
The controller is configured and programmed using Control Builder M, ABB’s well-established programming tool, and MATLAB®/Simulink® with Real-Time Workshop®. This allows for the development of complex control algorithms and the integration of the controller into larger automation projects.
Modular Design
The AC 800PEC features a modular design, allowing for flexible configuration according to the specific I/O requirements of the application. It supports up to 36 bi-directional fiber-optic PowerLinks for connecting I/O modules.
Connectivity
It offers extensive connectivity options, including two Ethernet ports, RS-232 / RS-422 serial ports, and on-board AnyIO ports for various fieldbus types. This ensures seamless integration with other control devices and systems.
Software and Tools
The AC 800PEC is fully integrated into ABB’s Control IT software environment, providing a comprehensive suite of engineering tools for all phases of automation projects, from engineering and installation to operation and main.
