ABB REF542PLUS 1VCF752000 Advanced Protection Relay Module
The ABB REF542PLUS 1VCF752000 protection relay represents the pinnacle of electrical fault detection technology for medium-voltage systems. Engineered for mission-critical applications across utility grids, industrial plants, and commercial infrastructure, this advanced relay combines precision protection algorithms with seamless digital integration capabilities.

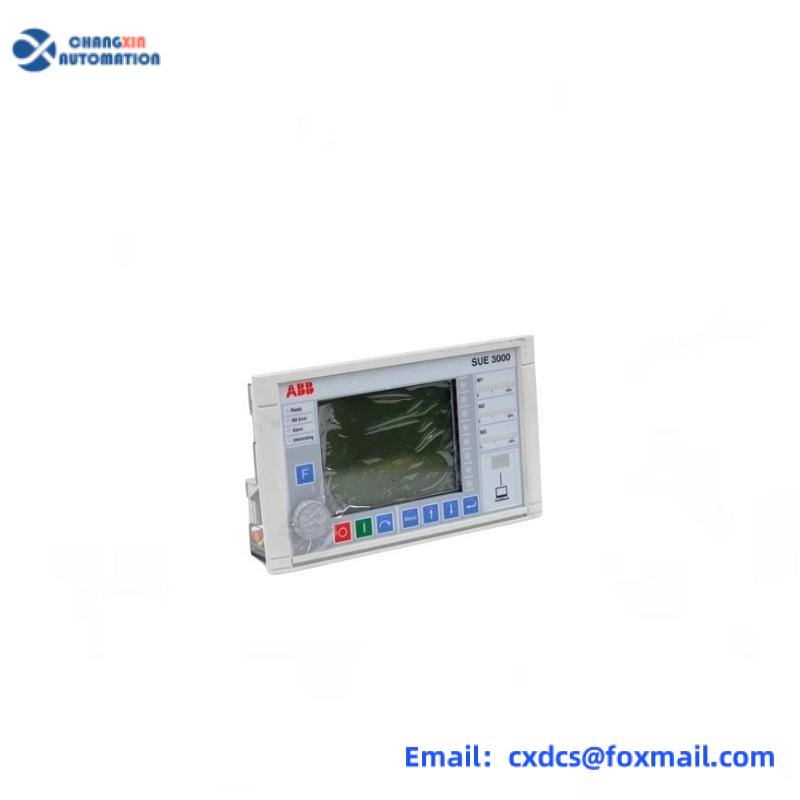

Front panel with status indicators
Typical wiring configuration
DIN rail mounting configuration
Key Features
- Real-Time Fault Analysis: Advanced protection algorithms with <3ms response time for critical fault detection
- Multi-Protocol Communication: Integrated IEC 61850 GOOSE messaging and Modbus RTU/TCP support
- Customizable Protection: 10 programmable protection zones with adaptive settings for transformer and feeder protection
- Durability: Industrial-grade construction with conformal-coated PCBs for harsh environments
- Remote Management: Built-in web server for configuration and diagnostics via Ethernet/IP
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB REF542PLUS 1VCF752000 |
| Power Requirements | 220V AC/DC ±20% |
| Operating Temperature | -25°C to +70°C |
| Communication Interfaces | 2x Ethernet (IEC 61850), RS485 (Modbus) |
| Certifications | IEC 60255-1, IEEE C37.90 |
Application Fields
This protection relay excels in medium-voltage distribution networks (3-36kV), particularly in transformer protection, motor protection, and busbar protection applications. Its advanced diagnostics and predictive maintenance features make it ideal for critical infrastructure including:
- Power generation plants (wind/solar/hydro)
- Industrial manufacturing facilities
- Smart grid implementations
- Commercial building management systems
