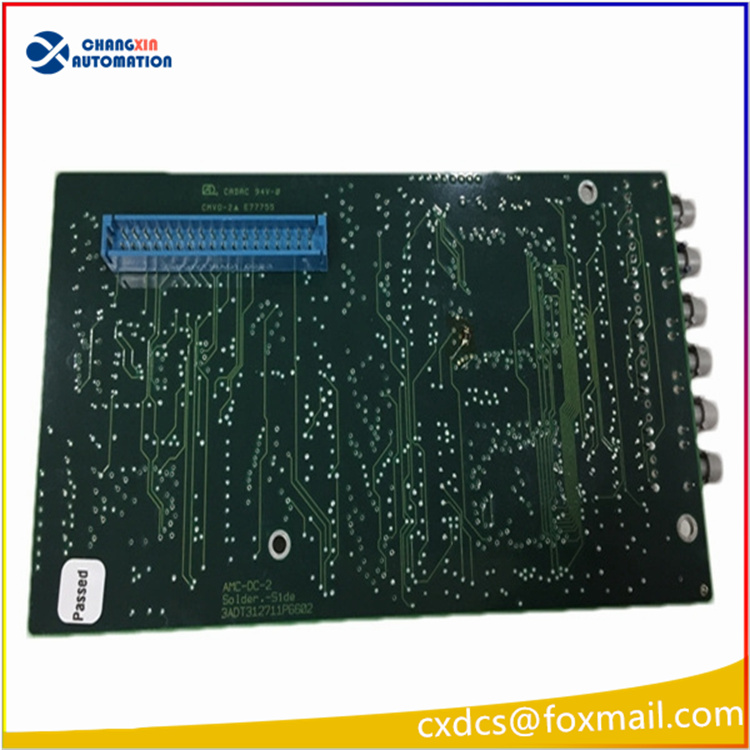

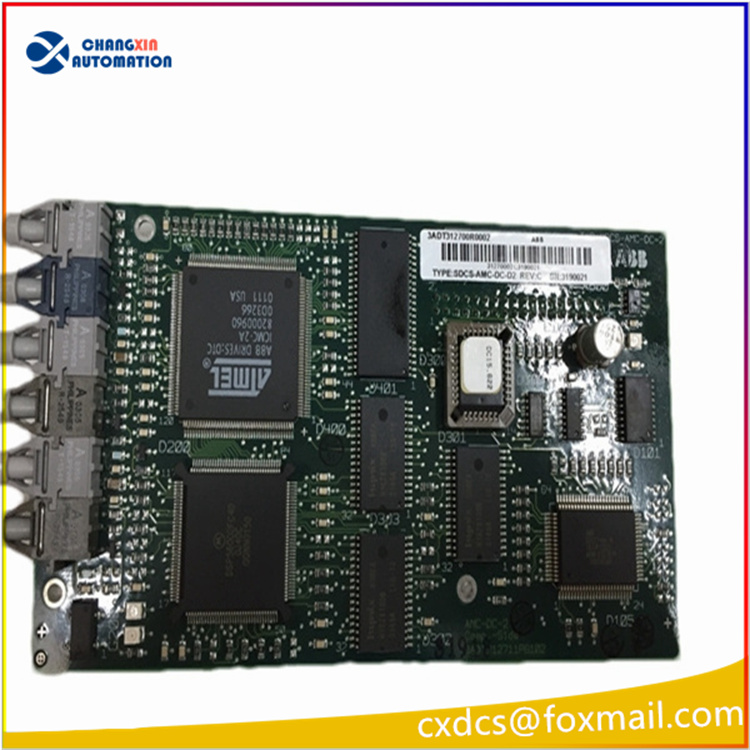

ABB SDCS-AMC-DC-D2 Direct Current Drive Control Board

The ABB SDCS-AMC-DC-D2 is a digital DC servo controller, mainly used for motor control and regulation in the industrial field. Here is a detailed introduction of it:
I. Core Functions
Motor Control: The SDCS-AMC-DC-D2 controller can achieve precise control of DC motors, including speed control, position control, and torque control.
Signal Processing: Utilizing digital signal processing technology, it offers high accuracy and reliability, and is capable of handling complex control algorithms.
Communication Function: Supports various communication interfaces, such as RS232, RS485, and CAN bus, facilitating communication with the host computer or other devices.

Technical Specifications
Power supply voltage range: DC 24V – DC 670V, suitable for different voltage levels of DC motors.
Maximum output current: 30A, meeting the driving requirements of most DC motors.
Control accuracy: ±0.1%, ensuring the stability and precision of motor operation.
Operating temperature range: 0℃ ~ 50℃, suitable for general industrial environments.
Size and weight: Dimensions are 48mm x 290mm x 275mm, weight is approximately 2kg, facilitating installation and maintenance.

Advantages and Features
High Precision Control: Utilizing digital signal processing technology, it offers high precision and reliability, capable of meeting various high-precision control requirements.
Multiple Control Modes: Supports various control modes such as position control, speed control, and torque control, facilitating users’ selection based on actual needs.
Strong Programmability: Equipped with programmable control algorithms and universal input/output interfaces, it enables users to customize programming and interface expansion as per their requirements.
Easy Integration: Supports multiple communication interfaces, facilitating data exchange and sharing with other devices, enabling system integration and optimization.

Application scenario
Automated production line: In an automated production line, the SDCS-AMC-DC-D2 controller can be used to drive various DC motors, enabling precise movement and positioning of the equipment.
CNC machine: In a CNC machine, this controller can be used to control the spindle motor and feed motor, achieving high-precision processing operations.
Robotics: In the field of robotics, the SDCS-AMC-DC-D2 controller can be used to drive the joint motors of the robot, enabling flexible movement of the robot.
