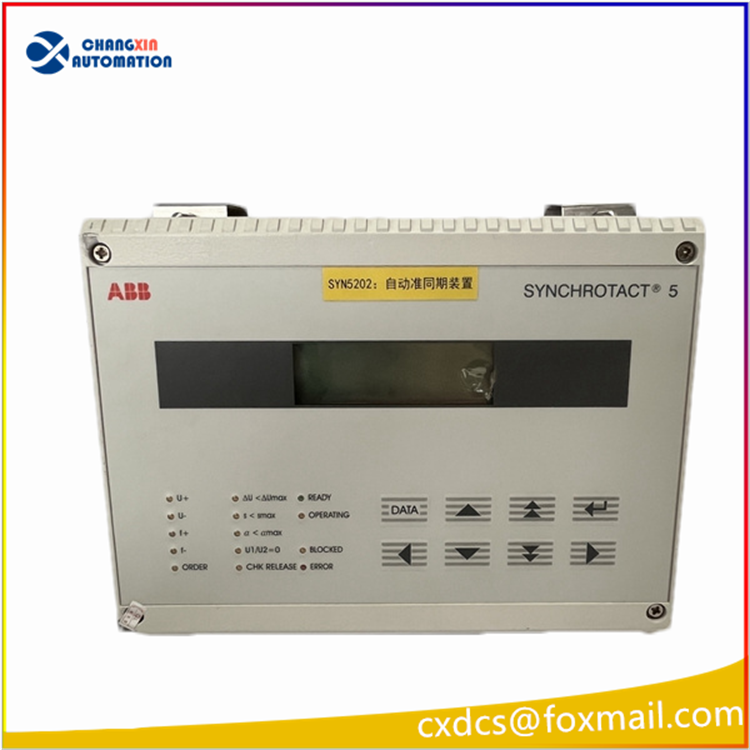

ABB SYN5201A-Z V277 3BHB006714R0277 is a synchronous device used in industrial automation systems. Here is a detailed introduction to it:
I. Core Functions
Synchronous Control: This function is mainly used for indicating, monitoring and controlling the grid connection operation in the power system. It ensures that the generator can synchronize precisely when connected to the grid, avoiding the impact current and voltage fluctuations caused by asynchronization.
Parameter Detection: It can detect whether the grid frequencies, voltage amplitudes and voltage phases on both sides of the connection point are consistent, ensuring the stable operation of the power system.
Multi-breaker Synchronization: The number of parameter sets has increased from 7 to 20, enabling up to 20 different breakers to be synchronized through a single device, enhancing the flexibility and scalability of the system.
Technical Specifications
Response Time: Millisecond level, ensuring rapid and accurate synchronous control.
Communication Interface: Supports multiple communication protocols such as RS485 and Modbus, facilitating data exchange and integration with other devices.
Compliance with Standards: Compliant with international standards such as IEC and IEEE, as well as IEC 61508 SIL2 safety standards, ensuring the safety and reliability of the product.
Operating Environment:
Operating Temperature Range: -25℃ to +55℃, suitable for various industrial environments.
Protection Grade: IP20, providing basic dust and water protection.
Auxiliary Voltage Range: AC voltage 100-230 volts, DC voltage 24-250 volts, frequency 50/60 Hz, meeting different power supply requirements.
Size and Weight: Dimensions are 263×58×28mm, weight is approximately 4.3kg, facilitating installation and integration.
Application scenario
Power system: Widely applied in power plants, substations and other power systems to ensure the precise synchronization and stable operation of power equipment.
Industrial automation: In the industrial automation fields that require high precision synchronization and control, such as robot control and automated production lines, this product can also play an important role.
