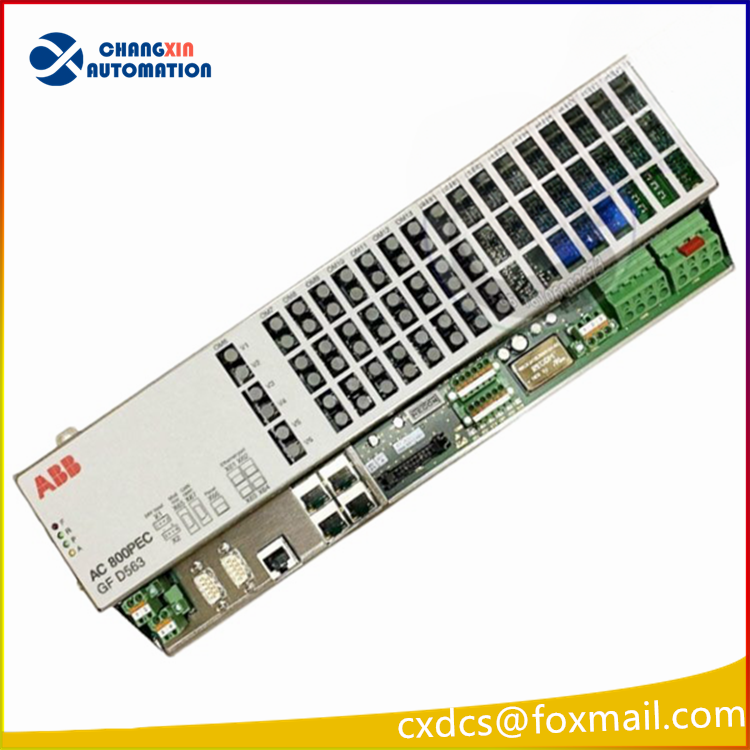

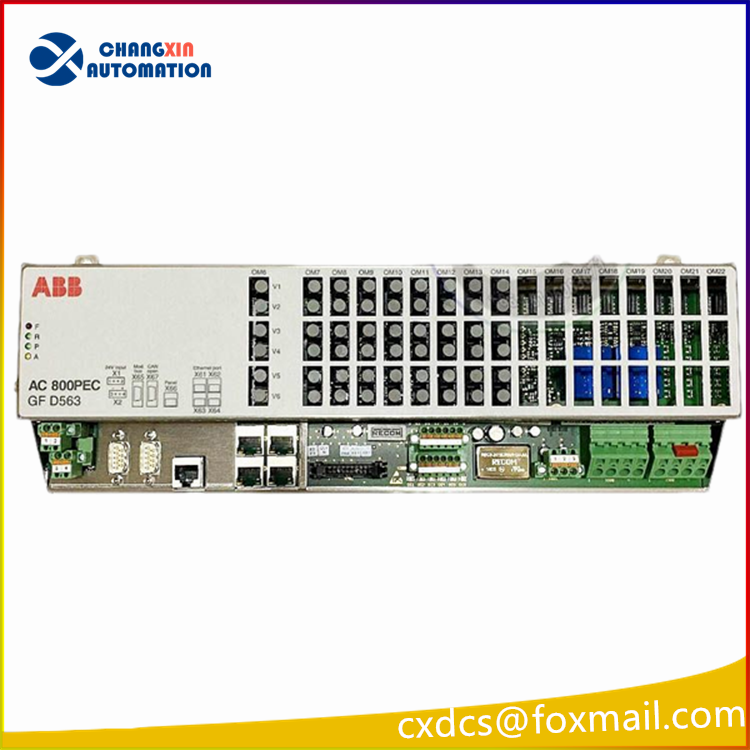

ABB System GFD563A102 3BHE046836R0102 Programmable Control Module Analysis
I. Product Positioning and Core Functions
GFD563A102 3BHE046836R0102 is a high-performance programmable control module launched by ABB. It is one of the core components of the AC 800PEC control system. This module is specifically designed for the fields of industrial automation and robotics, and supports various control functions, including:
Motion control: Precisely control the movement trajectories of devices such as motors and servo systems.
Logic control: Implement complex logical functions such as sequential control and timing control.
Data acquisition: Real-time acquisition of sensor signals, supporting process monitoring and analysis.
Technical Specifications and Performance Advantages
Input and Output Capacity
Standard Configuration: Supports 62 combinations of analog and digital inputs/outputs, including:
30 digital inputs (including 2 shaft encoder inputs)
2 analog inputs
28 digital outputs
2 high-speed digital outputs
Expansion Capability: Through additional expansion modules, the configuration can be extended to 1024 I/O points, meeting the requirements of large-scale automation systems.
Processing Performance
Utilizing high-performance processors and advanced control algorithms, it achieves rapid and accurate control responses.
It possesses strong data processing capabilities and precise motion trajectory planning functions, meeting the control requirements of high precision and high dynamic response.
Protection Functions
Integrated overcurrent, overvoltage, overheat, etc. protection mechanisms to ensure safe operation of the equipment.
Supports redundant configuration to enhance system reliability.
Communication and Integration
Supports multiple industrial communication protocols (such as Modbus, Profibus, etc.), facilitating interconnection with other devices.
Provides support for IEC 61131-3 standard programming languages to simplify programming and debugging processes.
III. Application Scenarios and Industry Adaptability
The GFD563A102 3BHE046836R0102 module is widely used in the following fields:
Industrial Automation
Machine Tool Control: Achieve high-precision processing path planning and real-time monitoring.
Packaging Machinery: Coordinate multi-axis movements to enhance packaging efficiency and quality.
Material Handling: Optimize equipment coordination and scheduling in the logistics system.
Process Control
Used in industries such as petrochemicals, power, and metallurgy to control key parameters such as temperature, pressure, and flow.
Robotics Technology
As the core module of robot controllers, it supports coordinated multi-joint movements and the execution of complex tasks.
Summary of Core Advantages
High Performance and High Reliability
Utilizing industrial-grade components and advanced manufacturing processes, it ensures stable operation in harsh environments.
Supports redundant configuration to reduce the risk of system downtime.
Flexibility and Scalability
Modular design, allowing for on-demand configuration of I/O points and functional modules.
Strong expansion capability, capable of meeting future system upgrade requirements.
Usability and Integration
Provides standardized programming interfaces and development tools to shorten project development cycles.
Supports multiple communication protocols, facilitating integration with existing systems.
