ABB UFC760BE143 3BHE004573R0143 Excitation Control Board

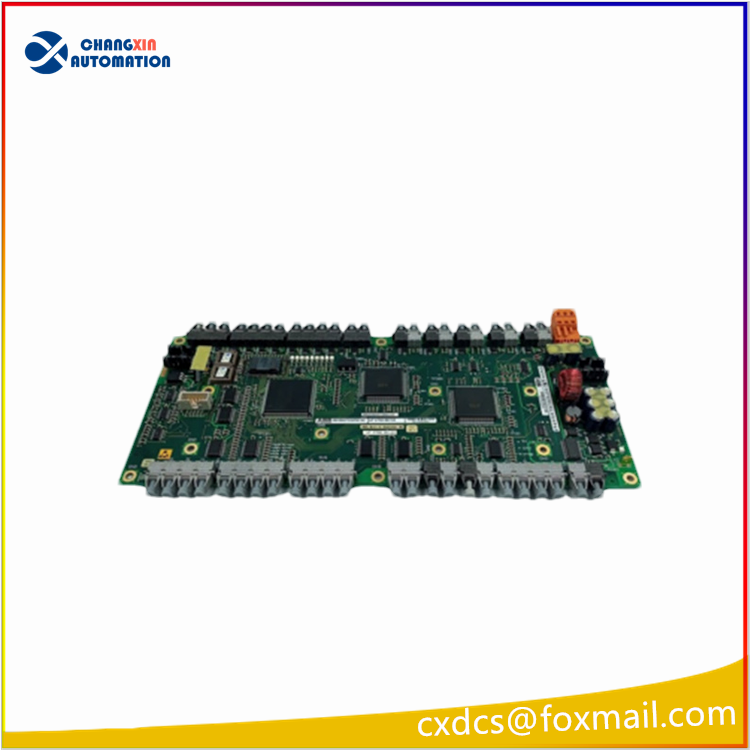

ABB UFC760BE143 3BHE004573R0143 The excitation control board is a high-performance control board produced by ABB. It is mainly used to control and regulate the operation of ABB’s AC excitation system, featuring precise control, high efficiency and energy saving, high reliability, and flexible configuration. Here is a detailed introduction about this excitation control board:
I. Core Functions
Precise Control: Utilizing advanced control algorithms, it achieves precise excitation control, ensuring the stable operation of the motor, reducing energy consumption, and improving energy utilization efficiency.
High Efficiency and Energy Saving: It possesses an efficient energy conversion function, which helps to lower energy consumption and enhance energy utilization efficiency, aligning with the trend of energy conservation and environmental protection.
High Reliability: Using high-quality materials and strict production processes, it ensures stable operation in various harsh environments and is applicable in various fields such as industrial automation, process control, power generation, robotics, and manufacturing.
Flexible Configuration: It supports multiple different configuration options, allowing for flexible configuration based on actual application requirements to meet various excitation control needs.

Protection Measures
Overvoltage Protection: Utilize a switching diode to detect the positive and negative overvoltages in the excitation circuit, effectively preventing transient overvoltages in both AC and DC systems and protecting equipment from damage.
CROWBAR Circuit: When there is a fault at the generator terminal, such as short circuit, incorrect synchronization, or asynchronous operation, an induced negative excitation current is generated. This current may cause high voltages in the excitation circuit. The CROWBAR circuit uses a switching diode to detect the positive and negative overvoltages in the excitation circuit. Whenever it operates, it triggers the related thyristors, immediately connecting the nonlinear magnetic field protection resistor in parallel with the rotor, limiting the overvoltage within a safe range for the insulation voltage of the excitation coil and the PIV value of the rectifier thyristor.

Application scenarios
The ABB UFC760BE143 3BHE004573R0143 excitation control board is suitable for various applications that require precise control of the excitation system, including but not limited to:
Electric power industry: It is used for excitation control of generators to ensure stable operation of the generators and precise regulation of the output voltage.
Industrial automation: In the field of industrial automation, this control board can be used in various scenarios where precise control of motor operation is required, thereby improving production efficiency and product quality.
Other fields: Such as in modern industrial sectors like metallurgy, papermaking, textiles, chemicals, water conservancy, etc., it can also be flexibly configured and applied according to actual needs.
