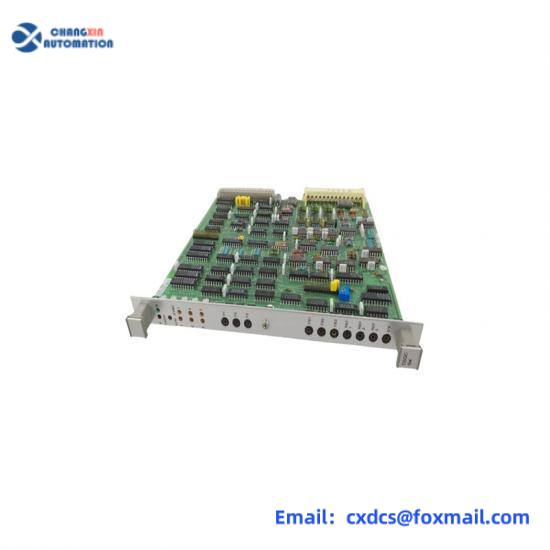

ABB YB161102-AE/7 Resolver Digital Board – High-Precision Industrial Speed & Position Measurement
The ABB YB161102-AE/7 Resolver Digital Board delivers exceptional measurement accuracy for industrial control systems requiring precise rotational speed and position feedback. Engineered for reliability in extreme operating conditions, this resolver interface board combines advanced digital signal processing with robust industrial design for mission-critical applications.
Key Features
- 12-bit Resolution: Provides 4096 discrete measurement positions per revolution for exceptional angular precision
- ±0.5% Full Scale Accuracy: Ensures reliable feedback for closed-loop control systems requiring tight tolerance maintenance
- Wide Operating Temperature: Functions reliably from -25°C to +70°C in demanding industrial environments
- Low Power Consumption: 5W maximum draw supports energy-efficient system designs
- Digital Pulse Output: Facilitates direct integration with PLCs and microcontroller-based control systems
- Panel-Mount Design: Ensures secure installation with simplified two-wire connection architecture
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB YB161102-AE/7 |
| Power Requirements | Max 5W @ 24V DC |
| Dimensions | 100 x 90 x 15 mm |
| Operating Temperature | -25°C to +70°C |
| Signal I/O | Resolver Input / Digital Pulse Output |
| Mounting | Panel-Mounted |
Application Fields
This resolver digital board excels in precision-critical applications including:
- Industrial robotics for accurate joint position feedback
- CNC machine tools requiring sub-micron positioning accuracy
- Automated production lines with high-speed motion control
- Heavy machinery for vibration-resistant position monitoring
- Process control systems needing reliable feedback in harsh environments
