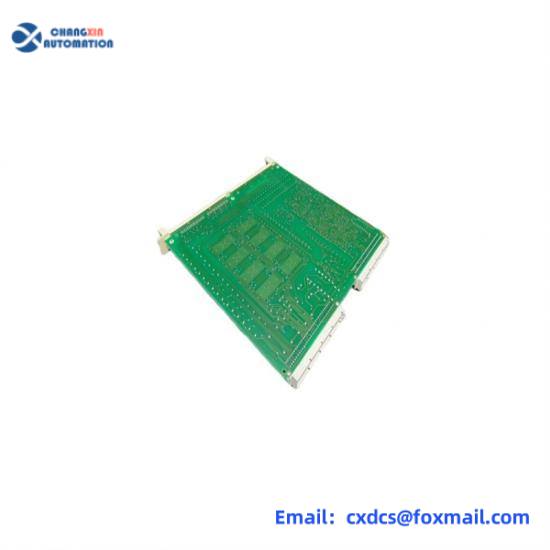

ABB YB560103-BD: Precision Digital I/O Board for Industrial Automation Systems
Engineered for mission-critical applications, the ABB YB560103-BD delivers
high-density digital input/output capabilities in a compact form factor. Designed for seamless integration with ABB’s S4 automation systems, this
industrial-grade board combines robust performance with energy efficiency to optimize control system reliability.
Featuring 16 isolated digital inputs and 16 relay outputs, the YB560103-BD supports diverse sensor/actuator configurations while maintaining
electrical isolation between channels for enhanced system protection.
Key Features
- High-Density I/O: 16 digital inputs and 16 relay outputs with channel-to-channel isolation
- Long-Distance Communication: RS-485 interface with noise-immune differential signaling
- Panel-Mount Design: Space-saving 100x100mm footprint with front-accessible terminals
- Wide Operating Range: Functions reliably from -25°C to +60°C industrial environments
- Energy-Efficient: 5W power consumption with thermal management for prolonged service life
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YB560103-BD |
| Power Requirements | 24V DC ±15%, 5W max |
| I/O Configuration | 16 DI (24V DC) / 16 DO (Relay 250V AC, 2A) |
| Communication | RS-485 with galvanic isolation |
| Environmental | -25°C to +60°C, 5-95% RH non-condensing |
Application Fields
This industrial I/O board excels in demanding environments such as:
- Manufacturing process control systems
- Energy infrastructure monitoring
- Water/wastewater treatment plants
- Building automation and HVAC systems
- Material handling and conveyor systems
Its robust design makes it particularly suitable for applications requiring electrical isolation and vibration resistance.
