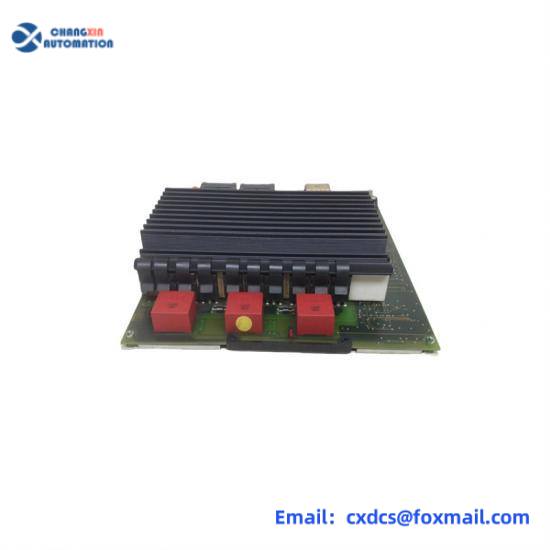

ABB YB560103-CE/024 Servo Axis Drive Board – Precision Motion Control Solution
The ABB YB560103-CE/024 Servo Axis Drive Board is engineered for high-precision industrial automation applications requiring dynamic motion control. This compact yet powerful drive board delivers reliable performance in demanding environments such as CNC machining centers, robotics, and automated production lines, where millisecond-level response times and positional accuracy are critical.
Key Features
- High-Performance EtherCAT Interface: Enables real-time communication with cycle times down to 50μs for synchronized multi-axis control
- 24V DC Power Architecture: Optimized for industrial power supplies with 10A peak current capability for high-torque applications
- Universal Motor Compatibility: Supports both induction and permanent magnet synchronous motors (PMSM) with field-oriented control
- Advanced Thermal Management: Operates reliably from -20°C to +60°C with integrated overtemperature protection
- Embedded Control Protocols: Implements PWM and CANopen standards for seamless integration with PLC systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | ABB YB560103-CE/024 |
| Power Requirements | 24V DC ±15%, 10A peak current |
| Operating Temperature | -20°C to +60°C |
| Communication Interface | EtherCAT (100BASE-TX) |
| Motor Compatibility | Induction/PMSM with resolver or encoder feedback |
| Control Method | Field-Oriented Control (FOC), PWM |
Application Fields
This drive board excels in precision-dependent applications including:
- Multi-axis CNC machine tools requiring ±1μm positioning accuracy
- High-speed packaging lines with synchronized motion control
- Industrial robots needing torque ripple reduction below 2%
- Test benches for motor characterization and validation
- Automated optical inspection systems with vibration suppression
Our Product Portfolio
We supply critical components from leading industrial automation brands:
- ABB: DSQC series, PM866, PP865A, 5SHY6545L0001
- GE Fanuc: VMIVME-7807, IC698CPE010, IS200SRTDH2A
- Triconex: 3008, 3720, 4351B, 3805E
- Foxboro: FCP270, FBM203, P0904HA
- Woodward: 8521-0312, 9907-164, 5466-2588
- Bently Nevada: 3500/44, 3300/15, 1900/20 systems
For technical inquiries about the ABB YB560103-CE/024 Servo Axis Drive Board or to request a datasheet, contact our engineering team.
