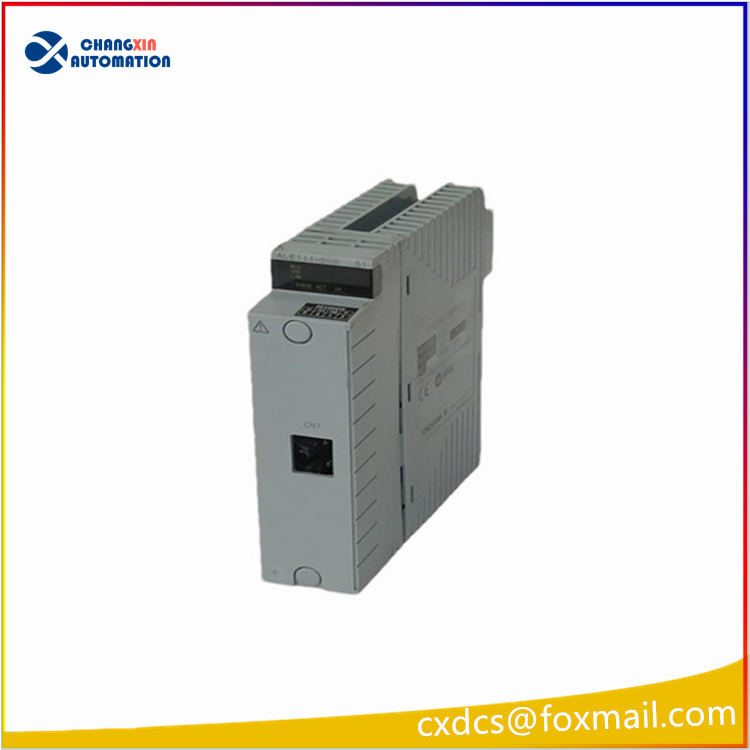

The following is the manual of Yokogawa ALE111-S50 Ethernet communication module:
Overview
ALE111-S50 is an Ethernet communication module designed for seamless data transmission in industrial environments. It is used in Yokogawa’s CENTUM VP and ProSafe-RS systems to ensure reliable connections.
Specifications
Physical layer interface: IEEE 802.3 10Base-T.
Connection method: point-to-point.
Connector: RJ-45.
Communication function: half-duplex.
Transmission speed: 10Mbps.
Transmission path: 100Ω unshielded twisted pair.
Transmission distance: 1 segment, 100 meters.
Installation method: Can be installed on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30 or AFV40.
Number of ports: 1.
Media access control: CSMA/CD.
Features
Durable and reliable: Made of rugged materials, it is able to maintain durability and reliability in harsh industrial environments.
Seamless integration: Supports direct connection with Yokogawa’s CENTUM VP and ProSafe-RS systems for seamless system integration.
Efficient transmission: Facilitates efficient data transmission and processing through optimized communication protocols.
Easy installation: Easy to install and compatible with a wide range of Yokogawa equipment, ensuring minimal downtime and rapid deployment.
Safety and compliance: Meets international safety standards to ensure the highest level of operational safety and compliance.
Applications
This module is mainly used in industrial automation control systems in the petroleum, energy, electronics, electrical and other industries to achieve data communication and interaction between devices, such as connecting PLC, DCS systems, sensors, actuators and other devices to achieve monitoring and control of the production process.
