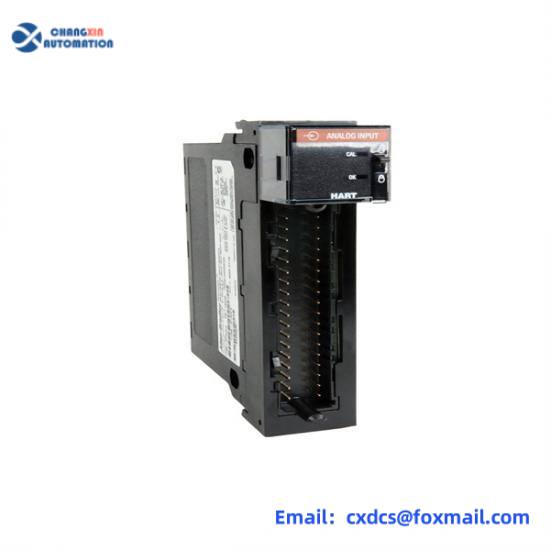

Allen Bradley 1756-IF16H ControlLogix Analog Input Module: Precision Signal Acquisition for Industrial Automation
The Allen Bradley 1756-IF16H ControlLogix Analog Input Module delivers high-precision analog signal processing for demanding industrial automation applications. With 16 differential voltage/current input channels and real-time sampling capabilities, this ControlLogix module ensures accurate data acquisition from critical process sensors and measurement devices.
Key Features
- 16-Channel Differential Input: Supports simultaneous acquisition of voltage (±10V, ±5V) and current (0-20mA, 4-20mA) signals with 16-bit resolution
- Advanced Diagnostics: Real-time error detection for under-range, over-range, and wire-off conditions with integrated process alarms
- Flexible Configuration: Selectable data formats (integer, scaled, engineering units) and programmable input ranges
- High-Speed Connectivity: 10/100 Mbps Ethernet/IP communication with built-in USB programming port
- Industrial-Grade Design: Operating temperature range 0-60°C, 5-95% non-condensing humidity tolerance, and 30G shock resistance
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | Allen Bradley 1756-IF16H |
| Power Requirements | 3 mA at 24V DC (Backplane), 6.2W max power dissipation |
| Dimensions | 175 x 120 x 45 mm (Standard ControlLogix chassis format) |
| Signal Types | Voltage: ±10V, ±5V | Current: 0-20mA, 4-20mA |
| Communication | Ethernet/IP, 10/100 Mbps, 802.3 compliant |
| Environmental Rating | IP20 enclosure, 5-95% RH non-condensing |
Application Fields
Engineered for mission-critical industrial environments including:
- Process control systems in oil & gas, chemical, and pharmaceutical industries
- Manufacturing automation with precision sensor integration
- Power generation and energy management systems
- Water/wastewater treatment facilities requiring accurate flow/level monitoring
- Automotive production lines with high-speed analog signal requirements
