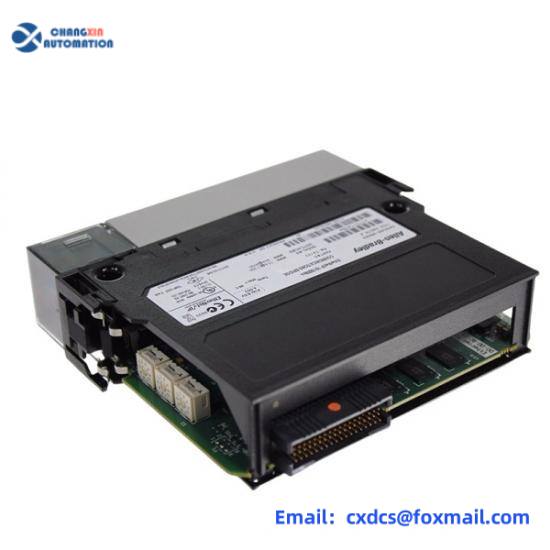

Allen-Bradley 1756-M02AS/A – Dual-Axis Servo Motion Control Module
The Allen-Bradley 1756-M02AS/A is a high-precision motion control solution engineered for demanding industrial automation applications. Designed to integrate seamlessly with ControlLogix programmable automation systems, this module delivers exceptional position control accuracy for servo drives in harsh industrial environments.
Key Features
- High-Performance Integration: Native compatibility with Allen Bradley ControlLogix systems via Ethernet/IP backplane communication
- Precision Motion Control: Dual-channel analog voltage output (-10V to +10V) for simultaneous control of two servo axes
- Industrial-Grade Durability: Operating temperature range 0°C to 60°C with conformal coating protection
- Advanced Diagnostics: Real-time status monitoring and fault detection capabilities
- Compact Design: Space-saving 35mm DIN rail mountable form factor (1756 series standard)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | Allen-Bradley 1756-M02AS/A |
| Power Requirements | 24V DC (supplied via ControlLogix chassis backplane) |
| Signal Output | 2 × Analog Voltage Outputs (-10V to +10V, 20mA max) |
| Communication | Ethernet/IP via ControlLogix chassis (5/50 Mbps) |
| Environmental Rating | IP20 protection, 0°C to 60°C operating temperature |
Application Fields
This dual-axis motion control module excels in precision manufacturing applications including:
- Automotive assembly robotics
- Packaging machinery with synchronized motion
- High-speed CNC machine tools
- Web handling systems in converting processes
- Test and measurement equipment requiring position accuracy
Main Brands and Models
As a professional distributor, we offer comprehensive industrial control solutions from leading brands:
- Allen Bradley: 1756 series, 1769 compact I/O, Servo Drives
- ABB: AC800M controllers, DSQC robotics, PM860 series
- Schneider Electric: Modicon M580, Quantum series, Vijeo Citect
- Emerson: DeltaV DCS, OVATION systems, Provox controllers
- Honeywell: Experion PKS, UMC800, FSC systems
