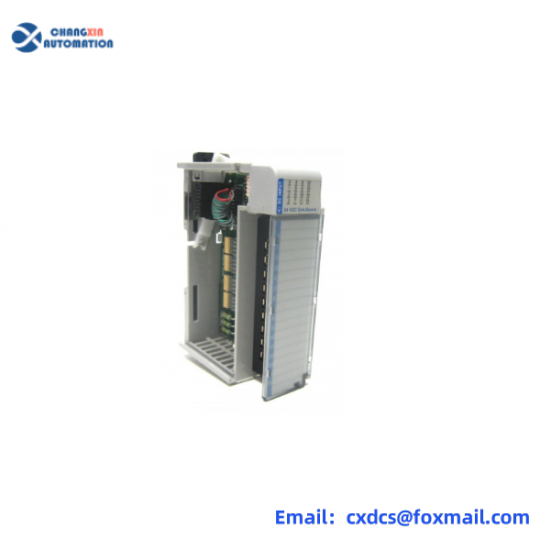

Allen-Bradley 1769-IG16/A Compact Input Module – Precision Signal Acquisition for Industrial Control Systems
The Allen-Bradley 1769-IG16/A Compact Input Module delivers high-precision signal processing for industrial automation systems, combining robust performance with compact design. Featuring 16 digital inputs and a wide -29 to 29V DC operating range, this module ensures reliable data acquisition in demanding manufacturing, process control, and machinery applications.
Key Features
- 16 Digital Input Channels: Enables integration with multiple sensors and switches for comprehensive system monitoring
- Wide Voltage Range: Operates from -29 to 29V DC for compatibility with diverse industrial equipment
- Low Power Consumption: Draws less than 1.0 watt to reduce operational energy costs
- Advanced Noise Filtering: Built-in signal processing eliminates electrical interference for accurate data transmission
- Extreme Temperature Tolerance: Functions reliably from -40°C to 70°C with storage capability up to 85°C
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | Allen-Bradley 1769-IG16/A |
| Power Requirements | ≤ 1.0 watt |
| Dimensions | 5.1″ x 3.7″ x 1.0″ |
| Operating Temp | -40°C to 70°C |
| Communication | Modbus RTU Protocol |
Application Fields
Engineered for mission-critical environments, this module excels in manufacturing automation lines, complex machinery control systems, and process monitoring applications. Its compact form factor and industrial-grade construction make it ideal for integration into PLC control panels requiring space optimization and high reliability.
