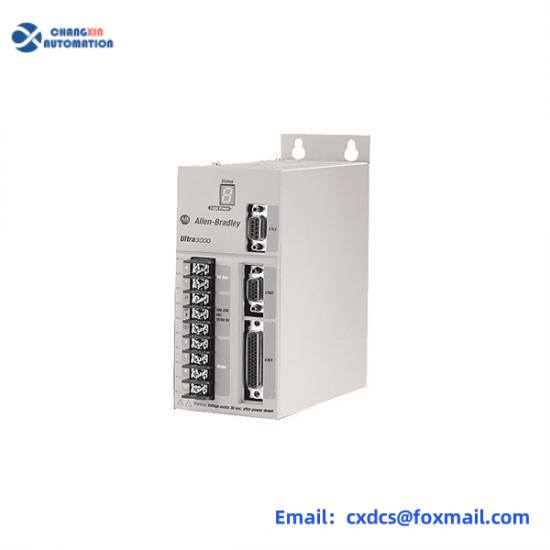

Allen-Bradley 2098-DSD-020 Digital Servo Drive – Precision Motion Control for Industrial Automation
The Allen-Bradley 2098-DSD-020 Digital Servo Drive is a high-performance motion control solution engineered for precision indexing and preconfigured drive operations. Designed for seamless integration into complex industrial automation systems, this Ultra 3000 Series drive delivers exceptional torque control and dynamic response for demanding manufacturing applications.
Key Features
- Wide Input Voltage Range: Operates on 100-240VAC single-phase power for global compatibility
- High Dynamic Performance: 30A peak current capacity for rapid acceleration/deceleration
- Compact Design: Space-saving 5.68″ x 2.86″ footprint (198.12 x 144.27 x 72.64 mm)
- Multi-Protocol Communication: Supports RS232, RS485, and DeviceNet interfaces
- Thermal Protection: Built-in safeguards against overheating and overcurrent conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Requirements | 100-240VAC, 47-63Hz (18A nominal input) |
| Output Capacity | 1.0 kW continuous / 30.0A intermittent |
| Operating Temperature | 0°C to 55°C (standard industrial range) |
| Communication | RS232/RS485 + DeviceNet interface |
| Mounting | DIN rail or panel mount options |
Application Fields
This digital servo drive excels in applications requiring precise motion control including:
- Assembly line automation with complex indexing patterns
- Packaging machinery requiring high-speed positioning
- Material handling systems with synchronized motion axes
- Test equipment demanding repeatable motion profiles
- Converting equipment with tension control requirements
