ALSTOM |TRVC062105000 | Controller module.ALSTOM TRVC062105000 is an automation control module used to control single extraction, exhaust/intake, or intake steam turbines. It is a controller based on a 32-bit microprocessor. The data stored in ALSTOM TRVC062105000 is grouped into set values and actual values. The set points can be read and written by the host computer, while the actual values are read-only. All set values and actual values are stored as two-byte values, and each register address is an address of a two-byte value. The address is listed in hexadecimal, and the data values are represented in decimal.
To work with ALSTOM TRVC062105000 one needs to understand the power supply circuit. The power supply circuit is a part of the circuit that provides energy to each unit circuit on the entire circuit board. The power supply circuit works in a high-voltage and high-current environment and is the most susceptible part of the circuit to failure. The function of the power supply circuit is to convert 220VAC or 380VAC AC power into DC power.

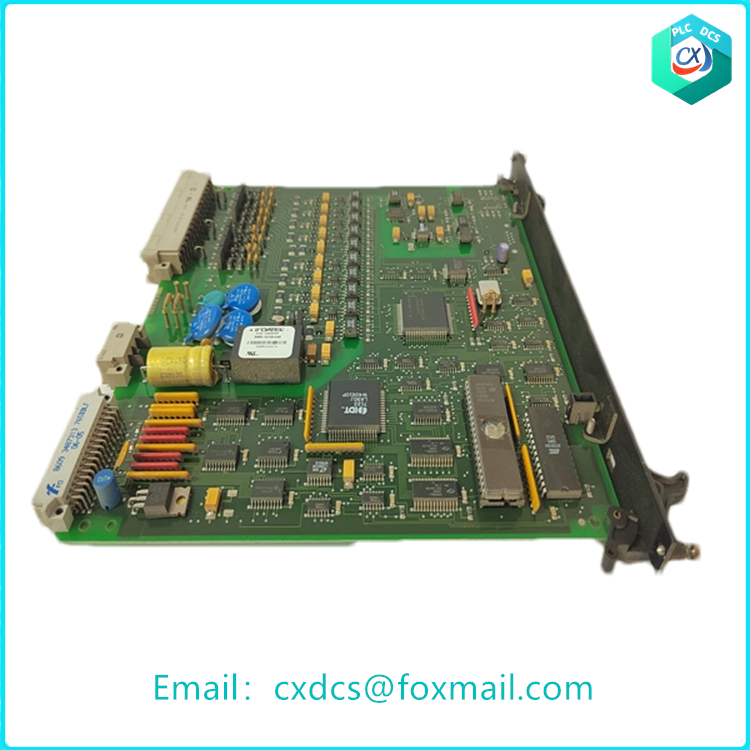

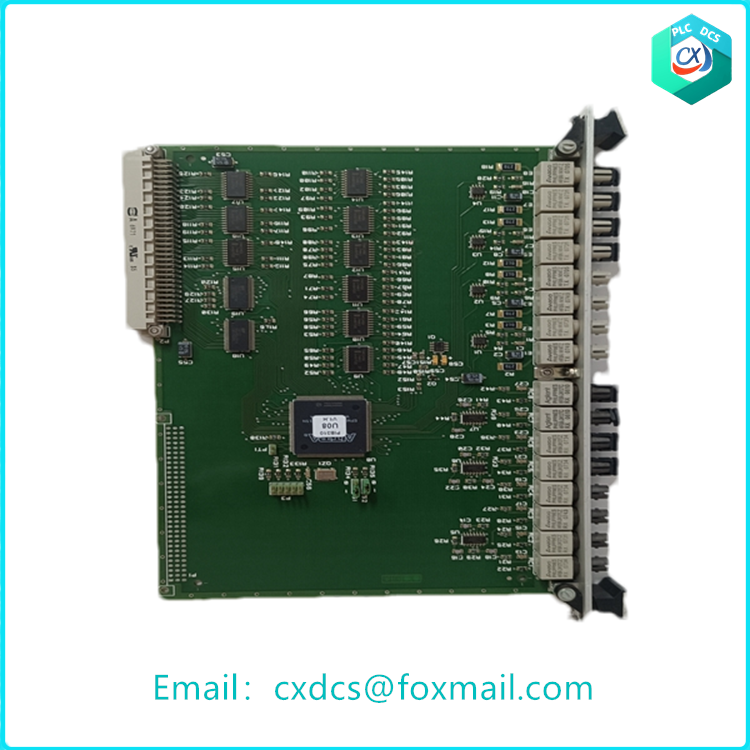

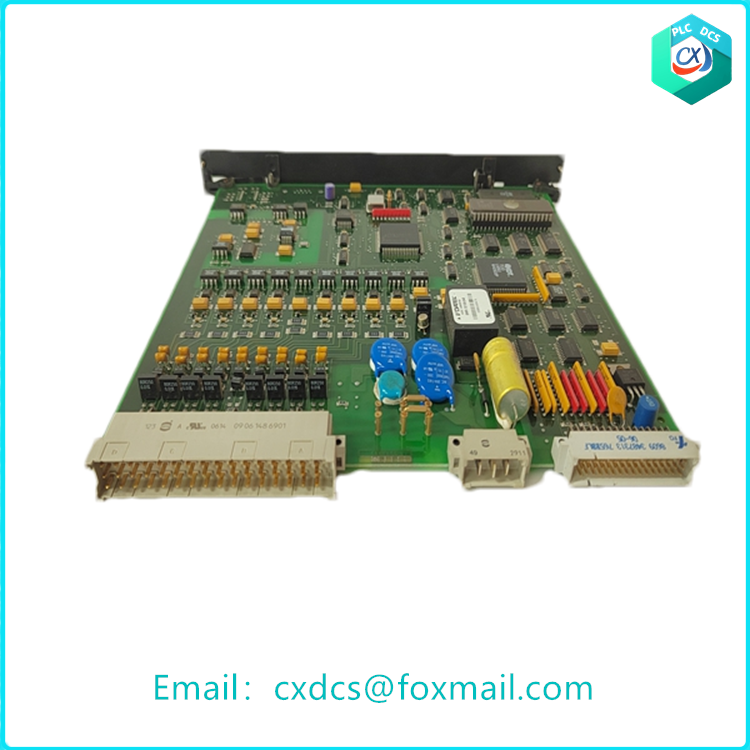

ALSTOM PCB
If an error other than a CRC error is detected by ALSTOM TRVC062105000, it will send a response to the host. The MSbit of the FUNCTION CODE byte will be set to 1 (i.e., the function code sent from the device will be equal to the function code sent from the device plus 128). The following bytes of ALSTOM TRVC062105000 will be an exception code indicating the type of error that occurred. ALSTOM TRVC062105000 will ignore transmissions received from a host with a CRC error. The response of the slave to the error (except for the CRC error) is: Slave address: 1 byte, Function code: 1 byte (MSbit set to 1), Exception code: 1 byte, and CRC: 2 bytes.
