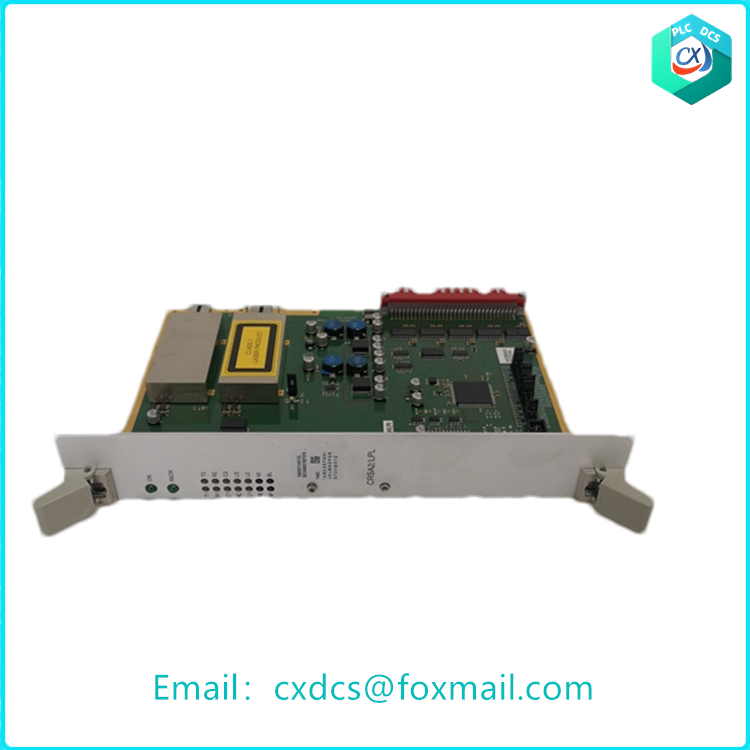

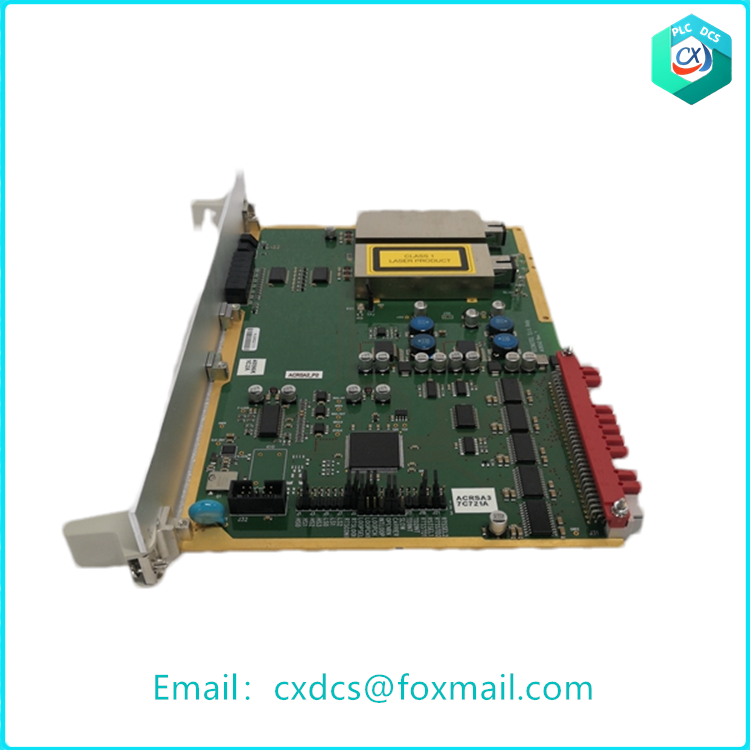

The LSTOM SDK-C0147 industrial control modules are high-performance hardware components designed by Alstom for complex industrial scenarios. The following is an analysis from the aspects of functional characteristics, application scenarios, technical advantages and market positioning:
I. Core Functions and Features
High-precision control capability
It supports multi-axis cooperative motion control (such as 8-axis linkage), can achieve micron-level positioning accuracy, and is suitable for fields with strict requirements for dynamic response, such as semiconductor manufacturing and precision processing.
It is equipped with a high-speed anti-interference PLC (Programmable Logic Controller), supporting the processing of 200 numerical control instruction blocks per second, meeting the real-time control requirements of high-speed continuous production lines.
Multi-protocol communication support
Compatible with mainstream industrial Ethernet protocols such as Modbus TCP/IP, PROFINET, and EtherCAT, it can be seamlessly integrated into the DCS/SCADA systems of manufacturers such as Siemens and Schneider.
It provides dual redundant communication interfaces and supports a ring topology network architecture to ensure that critical equipment can remain online and operate even when communication is interrupted.
Wide temperature range and high protection design
The operating temperature range covers from -20℃ to +70℃, meeting the demands of extreme environments such as polar energy exploitation and desert photovoltaic power stations.
With an IP67 protection rating and an M12 aviation plug, it features dust-proof, water-proof and anti-vibration capabilities, making it suitable for mobile equipment scenarios such as construction machinery and rail transit.
Typical application scenarios
Energy and power industry
In the gas turbine control system, the N897092520B module collects parameters such as the pressure and temperature of the combustion chamber in real time and combines the PID algorithm to achieve millisecond-level adjustment of the fuel/air ratio, thereby increasing the power generation efficiency by 3%-5%.
It supports redundant control of wind power pitch control systems. When the main control module fails, the backup module can take over the control within 10ms to avoid losses caused by wind turbine shutdown.
The field of rail transit
As a core component of the Alstom TRENO high-speed train traction system, this module precisely controls the IGBT switching frequency through PWM pulse width modulation technology, reducing the motor torque fluctuation to within 0.5% and significantly enhancing the ride comfort.
The integrated train Network management System (TCMS) can simultaneously handle over 2,000 I/O signals such as braking instructions, door status, and axle temperature monitoring, achieving visual monitoring of the entire vehicle’s status.
Industrial automated production line
In the automotive welding robot system, the N897092500E module reduces the robot trajectory planning delay to 50μs through the 30-forward-looking block pre-reading function, increasing the welding speed to 3m/min while maintaining the weld seam accuracy of ±0.1mm.
Support multi-robot collaborative operation, achieve microsecond-level synchronization through Time-sensitive Network (TSN) technology, and meet the precision requirements for parallel assembly of 12 robots on an automotive assembly line.
