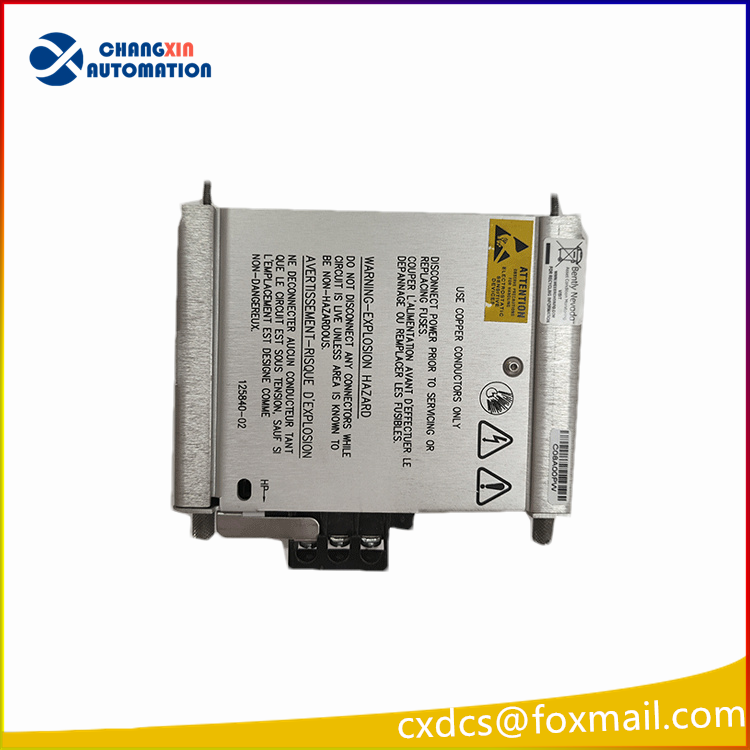

BENTLY 3500/15 125840-02 is a low-voltage AC power input module in the Bently Nevada 3500 series mechanical protection and condition monitoring system. Here is a detailed introduction to it:
I. Main Functions
Power Supply: Provides stable and reliable DC power for the monitoring module and sensors in the 3500 system.
Redundancy Protection: Supports redundant power configuration, offering two independent power inputs to ensure the system can operate normally even if one power source fails.
Power Monitoring: Monitors the power status in real time, providing status information and fault alarms through LED indicators and system interfaces.
Overload Protection: Features overload protection to prevent power modules and system components from being damaged due to excessive current.
BENTLY 3500/15 125840-02 is a low-voltage AC power input module in the Bently Nevada 3500 series mechanical protection and condition monitoring system. Here is a detailed introduction to it:
I. Main Functions
Power Supply: Provides stable and reliable DC power for the monitoring module and sensors in the 3500 system.
Redundancy Protection: Supports redundant power configuration, offering two independent power inputs to ensure the system can operate normally even if one power source fails.
Power Monitoring: Monitors the power status in real time, providing status information and fault alarms through LED indicators and system interfaces.
Overload Protection: Features overload protection to prevent power modules and system components from being damaged due to excessive current. Technical Specifications

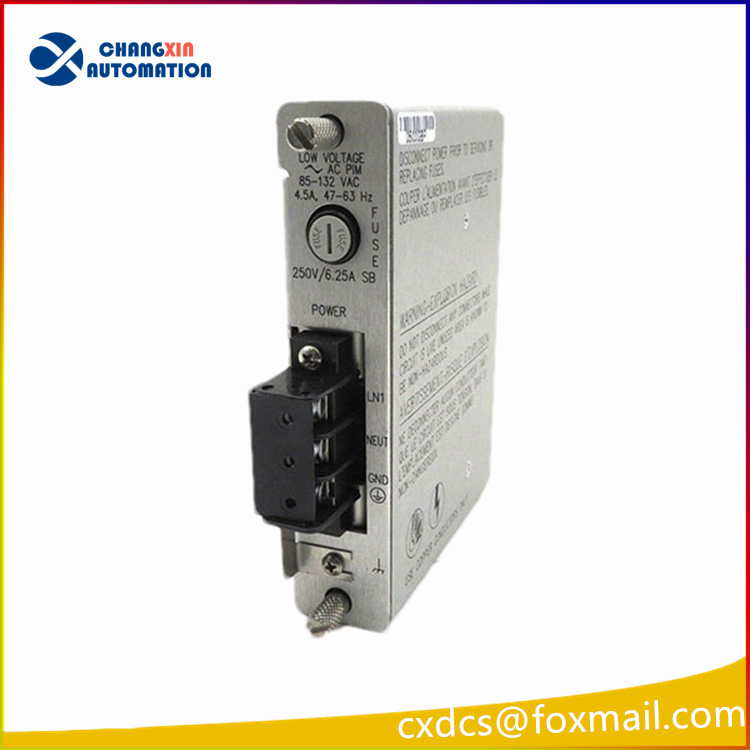

Input voltage range: 85~132Vac rms (typically 110V low-voltage AC power input module).
Output voltage: 24V DC.
Power consumption: 8.0 watts.
Maximum current: 5A.
Dimensions (height x width x depth): 9.50 inches x 0.96 inches x 9.52 inches (or 120.7mm x 25.4mm x 114.3mm).
Weight: 0.34kg (0.75lbs.).
Operating temperature: -30℃ to +65℃ (-22℉ to +150℉).
Storage temperature: -40℃ to +85℃ (-40℉ to +185℉).
Humidity: 95%, non-condensing.
Application scenario
Power plant: Used for monitoring and protecting power generation equipment such as steam turbines and generators to ensure their safe operation.
Oil and gas: In the oil and gas industry, used for monitoring and protecting rotating equipment such as compressors and pumps.
Chemical plant: Used for monitoring and protecting key rotating equipment in chemical plants to prevent safety issues caused by equipment failures.
Metallurgy and mining: Used in metallurgy and mining industries for monitoring and protecting various large-scale rotating machinery to ensure stable operation.
Offshore platform: Used for monitoring and protecting offshore oil platforms and drilling equipment to prevent production disruptions caused by equipment failures.
