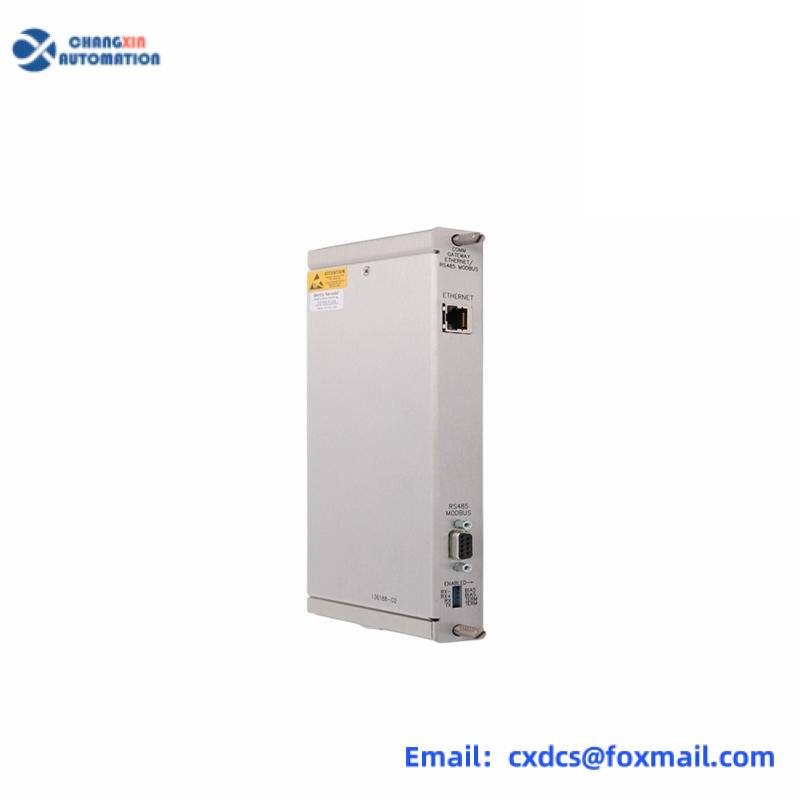

Bently Nevada 136188-02 Vibration Monitoring Module – High-Precision Machinery Protection System
Engineered for critical rotating equipment protection, the Bently Nevada 136188-02 vibration monitoring module delivers real-time mechanical health diagnostics with ±0.25% measurement accuracy. Part of the industry-standard 3500 Series, this module ensures reliable vibration analysis for turbines, compressors, and pumps in power generation, oil & gas, and heavy industrial applications.
Key Features
- Real-Time Vibration Analysis: Monitors shaft vibration, bearing health, and casing acceleration simultaneously
- Advanced Diagnostics: Built-in FFT spectrum analysis for early fault detection in rotating machinery
- Redundant Architecture: Dual-channel monitoring with 2-out-of-2 voting for SIL 3 compliance
- Seamless Integration: Direct interface with 3500 rack systems and PLC/DCS via 4-20mA or Modbus RTU
- Extreme Environment Resilience: Operational from -25°C to +70°C with IP65 front panel rating
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand/Model | Bently Nevada 136188-02 |
| Power Requirements | 220V AC ±10%, 50Hz |
| Input Channels | 4 independent vibration channels |
| Measurement Range | 0-50 mm/s (0-2.0 in/s) RMS |
| Output Interface | 4-20mA + Modbus RTU over RS485 |
| Certifications | CE, UL, ATEX, IECEx |
Application Fields
This vibration monitoring module is specifically designed for:
- Turbine generator sets in power plants
- Centrifugal compressors in LNG terminals
- Refinery catalytic crackers
- Steel mill rolling mills
- Marine propulsion systems
Global Industrial Automation Partner
We distribute premium industrial control products from leading brands including:
- ABB: PM866, 5SHY6545L0001
- Allen Bradley: 1756-L71
- Bently Nevada: 3300 XL
- Schneider: Modicon M580
- Honeywell: TPS LCN
- Woodward: 8521-0312
