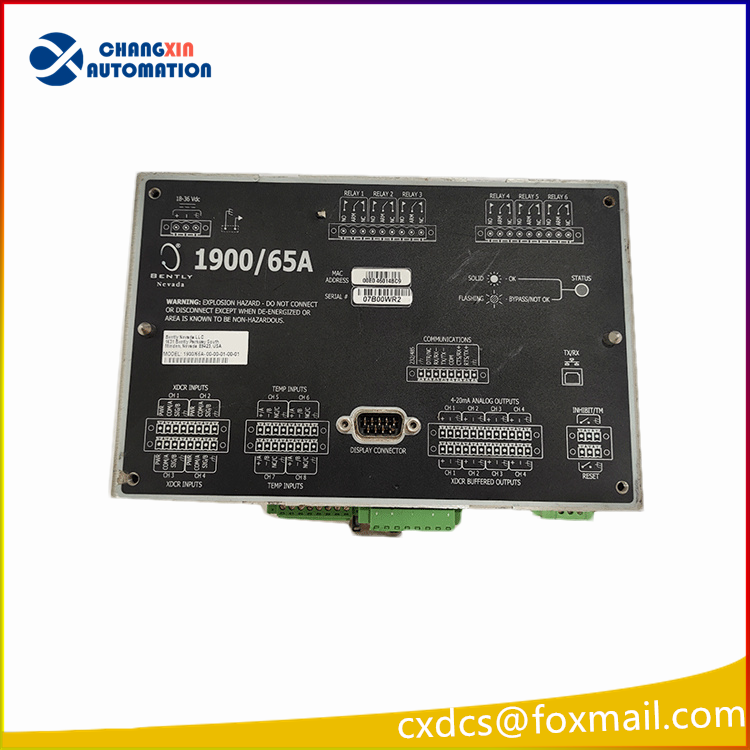

BENTLY 1900/65A-01-02-01-00-00 The vibration monitor is a high-performance and highly reliable device, suitable for vibration monitoring and fault diagnosis of rotating machinery in the industrial automation field. The following is a detailed analysis of its core functions and features:
Core functions
Real-time vibration monitoring
Continuous monitoring of key parameters such as vibration amplitude and frequency of the equipment, providing real-time data support to help users promptly grasp the operating status of the equipment.
High-precision measurement
Utilizing advanced measurement technology, it can accurately capture the subtle changes in vibration signals, providing reliable basis for fault diagnosis.
Fault diagnosis and prediction
By analyzing vibration data through built-in algorithms, it can diagnose common mechanical faults such as imbalance, centering issues, and bearing wear, and predict potential failure risks, supporting preventive maintenance.
Alarm and protection functions
Users can customize vibration thresholds. When the vibration level exceeds the safety range, the monitor will trigger an alarm (such as relay output, LED indicator light), alerting operators to take measures to avoid equipment damage.
Data recording and analysis
Supports historical data storage and trend analysis, helping users understand the vibration change patterns of the equipment, optimize maintenance plans, and extend equipment lifespan.
Easy integration
Provides Modbus communication interface (optional), which can be seamlessly integrated into industrial control systems such as DCS, SCADA, and PLC, achieving data sharing and remote monitoring.
Technical Characteristics
Multi-channel Input
Supports four vibration sensor inputs (accelerometer, speed sensor or eddy current displacement sensor), allowing simultaneous monitoring of multiple vibration points and comprehensive assessment of equipment status.
Temperature Monitoring
Equipped with four temperature input interfaces, supporting E, J, K, and T type thermocouples and 2-wire/3-wire RTD, enabling synchronous monitoring of equipment temperature and assisting in fault diagnosis.
Flexible Output
Provides six relay outputs (for alarms or protection logic), four 4-20mA recorder outputs (for connecting external instruments or PLC), and a dedicated buffer output (supporting signal playback for each sensor input).
Communication Protocols
Supports Modbus TCP/IP and Modbus RTU (via RS232/485 serial ports), compatible with various industrial networks, meeting different scenario requirements.
Durable Design
Uses industrial-grade hardware, featuring corrosion resistance, high temperature resistance, and high humidity resistance, capable of adapting to harsh industrial environments and ensuring long-term stable operation.
User-Friendly Configuration
Creates configuration files through dedicated software (such as Bently 1900 configuration tool) on a laptop or PC, and downloads them to the monitor via Ethernet, supporting remote parameter adjustment and fault troubleshooting.
Typical application scenarios
Power industry
Monitor the vibration and temperature of equipment such as generators, motors, and transformers to prevent equipment damage caused by abnormal vibration and ensure the stable operation of the power grid.
Petrochemical industry
Applied to key equipment such as pumps, fans, and compressors, it can monitor the vibration status in real time to avoid production disruptions or safety accidents caused by faults.
Metallurgical industry
Deployed in high-load equipment such as rolling mills and motors, it uses vibration analysis to optimize equipment operating parameters, increase production efficiency, and reduce maintenance costs.
Water treatment and environmental protection
Monitor the vibration of equipment such as water pumps and fans to ensure the continuity of the water treatment process and prevent environmental pollution caused by equipment failures.
Papermaking and textile
Applied in paper machines and textile machinery, it improves equipment reliability through vibration monitoring and reduces losses caused by paper jams or fabric damage.
