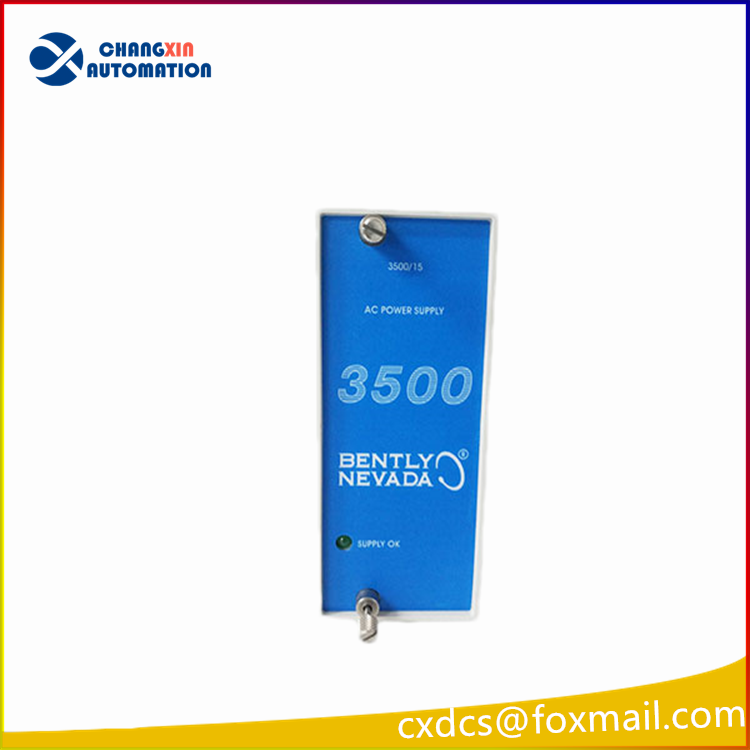

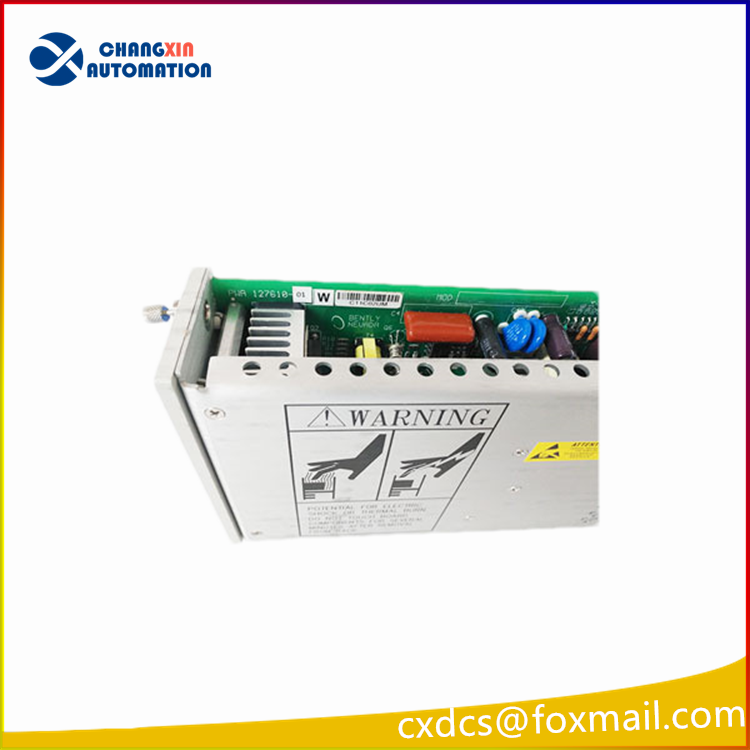

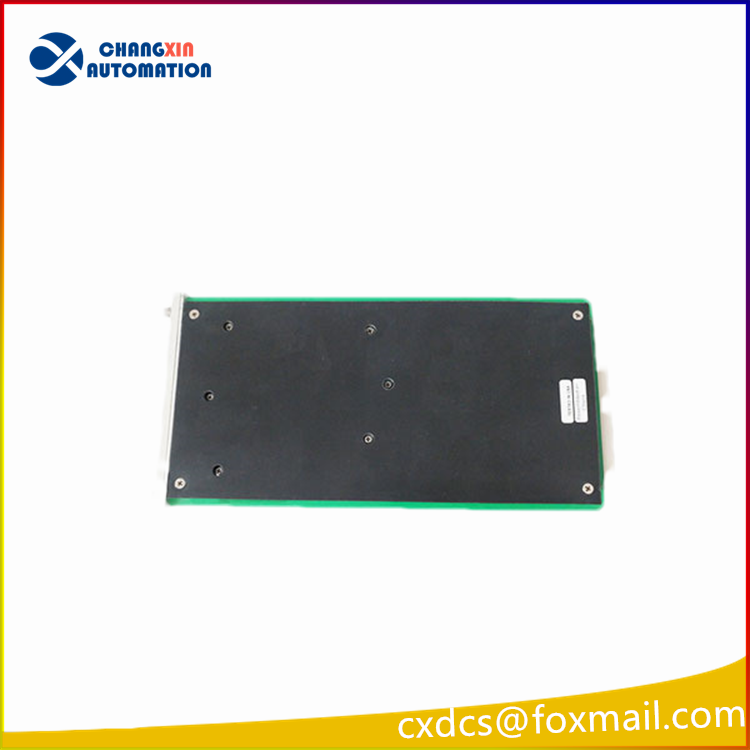

BENTLY 3500/15 127610-01 is an AC power module produced by Bently Nevada Company, which is part of the 3500 series mechanical protection and condition monitoring system. The following is an introduction to this module:
I. Main Functions
Provide stable power supply: Provide stable and reliable 24VDC power support for other modules in the 3500 series monitoring system (such as vibration monitoring module, displacement monitoring module, etc.).
Redundant configuration: Support dual power supply mode, that is, two power module (AC and/or DC combination) can be installed in the rack. When two power modules are installed, the lower module serves as the main power supply and the upper module serves as the backup power supply. Either power module can supply power for the entire rack, ensuring uninterrupted operation in case of a power failure. Any power module can automatically take over and ensure continuous operation when one power module fails.
Status indication: The module has LED indicator lights that can display the working status of the power module, such as whether the power is normal, whether there is a fault, etc., making it convenient for users to monitor and maintain.
Technical Specifications
Input voltage range: Typically 100-240VAC, 50/60Hz. It can accept a wide range of input voltages and convert them into voltages that the 3500 module can use.
Output voltage: 24VDC.
Output current: Depending on different sources, the output current may vary, but it is generally between 5A and 5.5A.
Power: Calculated based on the output voltage and current, the power is approximately between 120W and 132W.
Operating temperature range: Usually -40°C to +85°C or -30°C to +65°C, depending on different sources. However, in any case, this module can work stably under extreme temperature conditions.
Size and weight: The size is approximately 168mm x 98mm x 36mm to 180mm x 130mm x 45mm, and the weight is approximately 1kg to 1.5kg.
Protection level: Some sources mention its protection level as IP67 or IP20. This mainly depends on the specific design and application of the module. The IP67 level indicates that the module can prevent dust and water from entering, suitable for use in harsh environments; while the IP20 level indicates that the module has a lower ability to protect against dust and water, suitable for use in general environments.
Application scenario
Oil and gas industry: Used to monitor the vibration and displacement of key equipment such as compressors and pump sets in refineries, as well as gas turbines and pumps on offshore platforms, to ensure the safe operation of the equipment.
Electricity industry: Used to monitor the vibration and displacement of equipment such as steam turbine generators, feedwater pumps, and main pumps in large coal-fired and gas-fired power plants, and in nuclear power plants, to prevent equipment failures that could cause power outages.
Chemical and metallurgical industries: Used to monitor the vibration and displacement of key equipment such as large compressors, blowers, crushers, and rolling mills, to improve the operational efficiency and reliability of the equipment.
Other industries: Such as papermaking and shipping industries, it can also be used to monitor the vibration and displacement of equipment such as rollers of large paper machines and propulsion turbines of ships.
