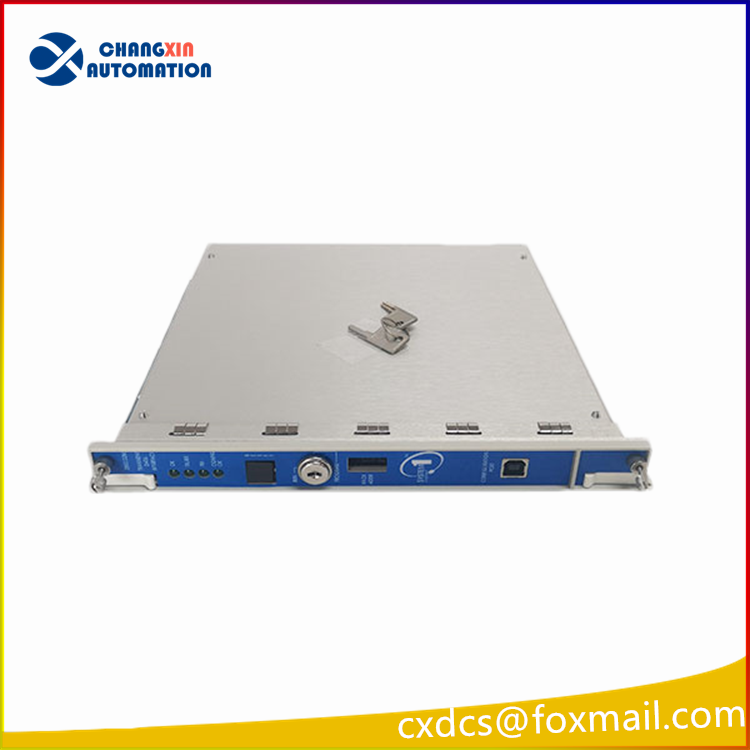

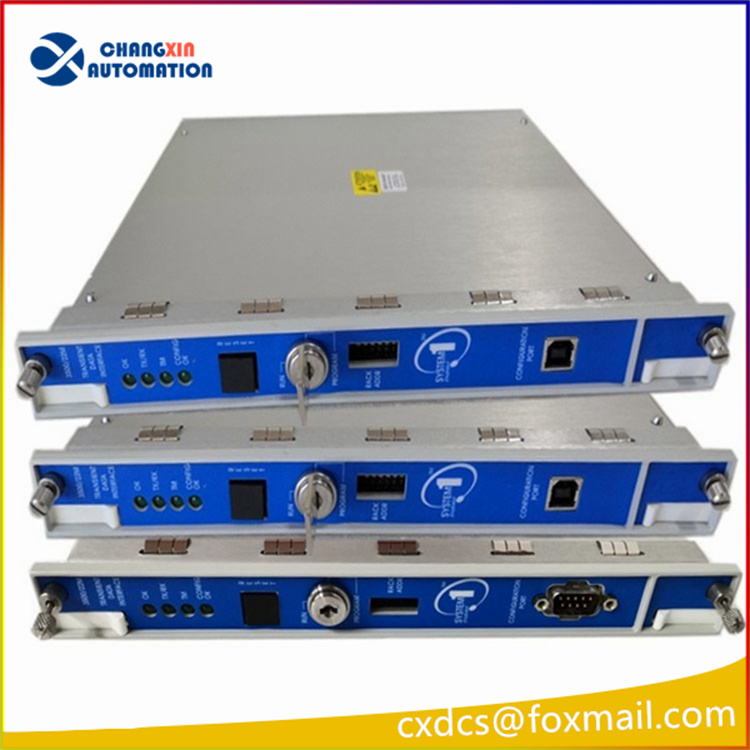

BENTLY 3500/22M 138607-01 is a transient data interface (TDI) module produced by Bently Nevada Company, and it is part of the 3500 series mechanical protection and condition monitoring system. The following is an introduction to this module:
I. Main Functions
Data Collection: The BENTLY 3500/22M 138607-01 module is capable of continuously collecting both steady-state and transient waveform data, which is extremely useful for analyzing the operating status of mechanical equipment and diagnosing potential issues.
Data Transmission: Through Ethernet connection, this module can quickly transmit the collected data to the main computer software, ensuring the real-time and accuracy of the data.
Compatibility: Compatible with the 3500 monitoring system and the BENTLY System 1™ mechanical management software, it can be easily integrated into existing industrial automation systems.
Scalability: Combining the functions of the 3500/20 rack interface module (RIM) and the data collection function of the communication processor, it has strong scalability. Users can add more monitoring points or upgrade the system configuration as needed to meet different monitoring requirements.
Technical Specifications
Interface type: Ethernet, supports 10Base-T or 100Base-TX auto-adaptation, as well as 100Base-FX fiber Ethernet.
Data transmission rate: 100 Mbps, ensuring high-speed data transmission.
Protection level: IP20, suitable for general industrial environments.
Operating temperature: -20°C to +55°C, capable of stable operation within a wide temperature range.
Size: 115 mm x 60 mm x 22 mm, the compact size facilitates installation and integration.
Power consumption: 7.7 watts to 10.5 watts, depending on configuration and usage.
Application scenario
The BENTLY 3500/22M 138607-01 module is widely used in industries such as power, chemical engineering, petroleum, and steel, helping enterprises achieve efficient and stable automated production. Specific application scenarios include:
Power plant: Used to monitor the power generation units to ensure their safe operation.
Petroleum refining plant: Used to monitor the pumps during the refining process, helping to improve the operational efficiency and reliability of the refining facilities.
Automobile production line: Used to monitor the motors on the production line, enabling timely detection of motor faults and preventing the production line from stopping.
Product advantages
High reliability: Adopting industrial-grade design, it has strong anti-interference ability and environmental adaptability, and can operate stably in various harsh environments.

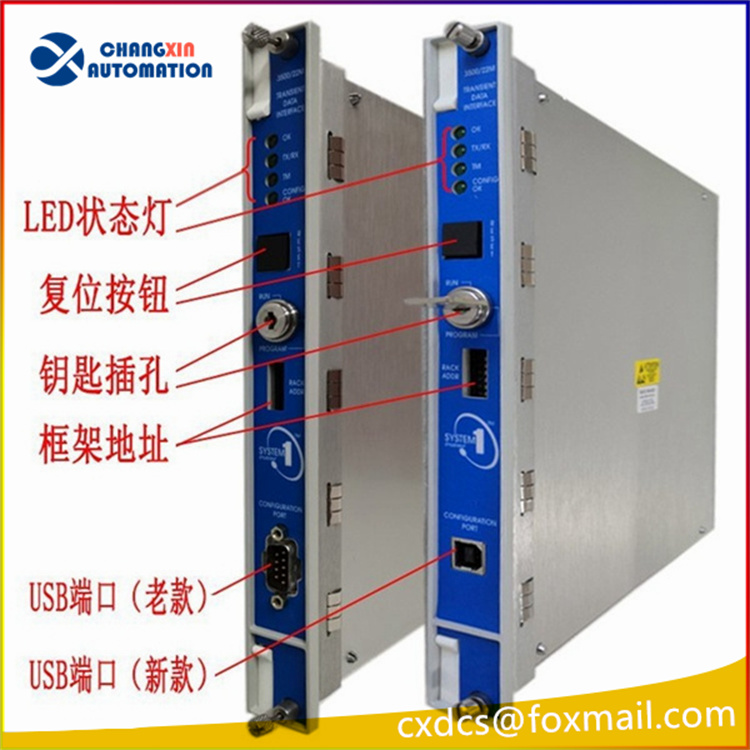

Easy maintenance: The front panel is equipped with LED indicators, which can display the working status of the module, facilitating users’ monitoring and maintenance work.
Flexible configuration: Supports redundant configuration and various input/output module options, allowing for flexible configuration and expansion according to actual needs.
