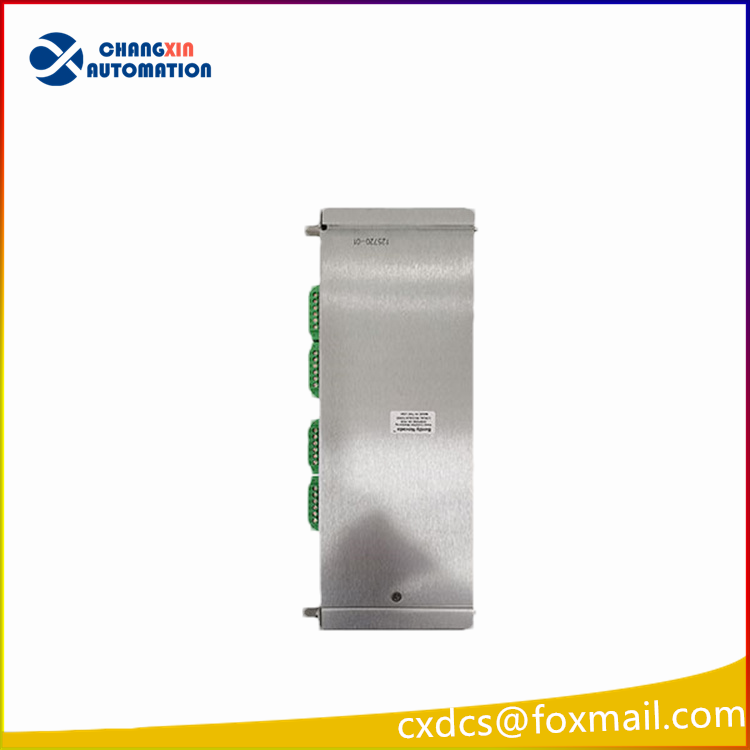

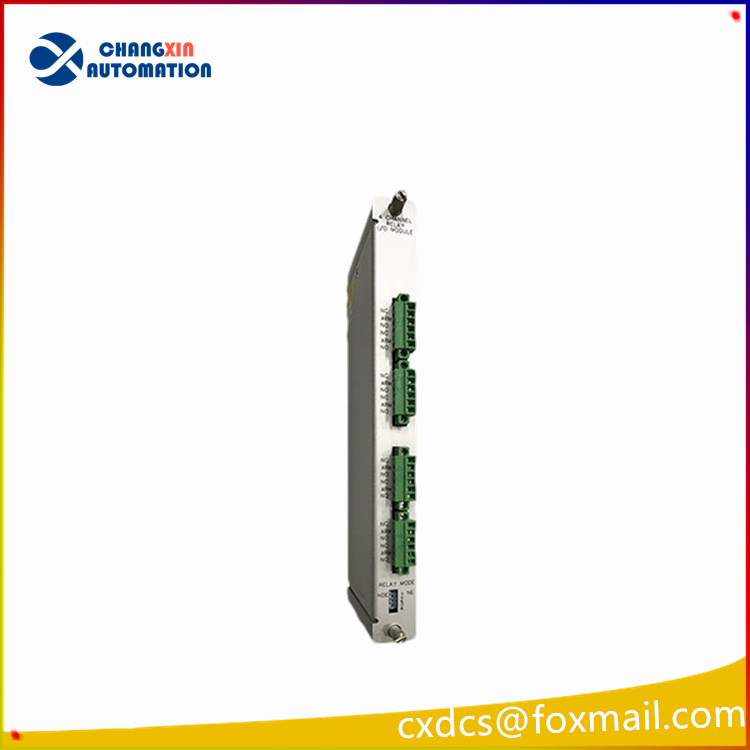

BENTLY 3500/70 125720-01 is a backup 4-channel relay input/output module produced by Bently Nevada Company, and it is part of the 3500 series mechanical condition monitoring system. The following is an introduction to this module:
I. Main Functions
Relay Output: Provides 4 independent relay output channels, each of which can be independently programmed to achieve various alarm and control functions.
Alarm Function: When the monitored parameters exceed the preset range, the relay module will trigger an alarm to notify the operator for handling.
Control Function: Can be integrated with other control systems to achieve automatic control of equipment, such as starting and stopping machines or systems.
Redundancy Configuration: Supports redundancy configuration to ensure that the system can still operate normally even if one module fails, providing high availability.
Event Recording: Records alarm and control events for easy analysis and troubleshooting afterwards.
Technical Specifications
Product Type: Redundant 4-Channel Relay Input/Output Module.
Output Channels: 4 (Form C Contacts).
Relay Type: Electromechanical Relay.
Contact Type: Normally Open (NO), Normally Closed (NC), Common Terminal (COM).
Maximum Switching Voltage: 250 VAC, 30 VDC.
Maximum Switching Current: 2 A (Resistive Load).
Electrical Life: 100,000 Operations (Under Rated Load).
Mechanical Life: 20 x 10^6 Operations.
Isolation Voltage: 1500 VAC (Between Contacts and Between Contacts and Rack).
Operating Temperature: According to the 3500 System Rack Environmental Requirements.
Storage Temperature: According to the 3500 System Environmental Requirements.
Relative Humidity: According to the 3500 System Environmental Requirements.
Installation Method: Insert into the I/O Module Slot of the Bently Nevada 3500 System Rack.
Application scenario
Power plant: Used to monitor and protect power generation equipment such as steam turbines and generators, providing alarm and control functions to ensure safe operation of the equipment.
Oil and gas: In the oil and gas industry, used to monitor and protect rotating equipment such as compressors and pumps, providing alarm and control functions to ensure the safety and stability of the production process.
Chemical plant: Used for monitoring and protecting key rotating equipment in chemical plants, through alarm and control functions, preventing equipment failures from causing safety issues and improving production safety.
Metallurgy and mining: Used in metallurgy and mining industries to monitor and protect various large-scale rotating machinery equipment, providing alarm and control functions to ensure stable operation and efficient production of the equipment.
Offshore platform: Used for monitoring and protecting offshore oil platforms and drilling equipment, through alarm and control functions, preventing equipment failures from causing production interruptions and ensuring the continuity of offshore operations.
