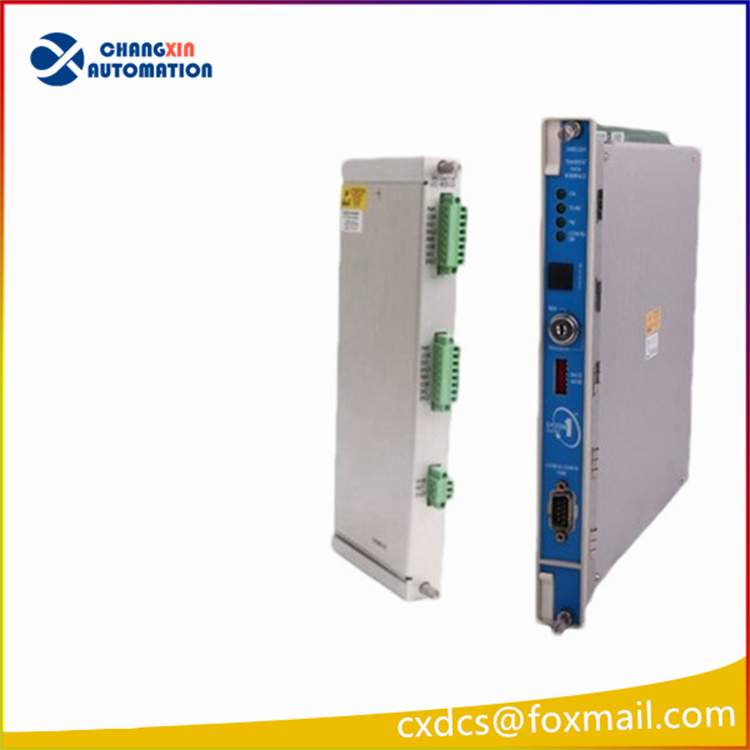

BENTLY 3500/70 140471-01 is an analog I/O module produced by Bently Nevada Company, which is part of the 3500 series mechanical protection and condition monitoring system. The following is an introduction to this module:
I. Main Functions
Signal Reception and Transmission: As a crucial component of the 3500/42M preamplifier/earthquake monitoring system, the BENTLY 3500/70 140471-01 is responsible for receiving signals from sensors at the site and transmitting them to the monitor for processing and judgment.
Mechanical Protection: This module continuously compares the real-time data (such as vibration, displacement) collected by the sensors with the preset alarm thresholds in the system. Once an anomaly is detected, an alarm is triggered immediately, thereby protecting critical equipment.
Data Provision: In addition to triggering alarms, this module can also provide key machine information to operation and maintenance personnel, serving as an important data source for implementing predictive maintenance.
Product advantages
High reliability: Designed for industrial environments, it features high reliability and durability, and can operate stably for a long time under harsh conditions.
Multifunctionality: Through the dedicated 3500 framework configuration software, engineers can independently program each channel of the module, enabling it to perform various monitoring tasks, such as radial vibration monitoring, axial thrust position monitoring, casing differential expansion monitoring, eccentricity monitoring, as well as speed and acceleration measurement.
Ease of maintenance: The front panel of the module has LED indicators that can display the module status and activities, facilitating real-time monitoring and fault diagnosis. Additionally, the modular design also makes installation, maintenance, and replacement easier.
Compatibility: Compatible with other modules of the 3500 series, providing consistent interfaces and electrical characteristics to ensure the overall coordination of the system.
Application scenario
The BENTLY 3500/70 140471-01 module and the 3500 monitoring system to which it belongs are specifically designed for industries with extremely high requirements for reliability and safety. They are mainly applied in fields with large, high-speed, and critical rotating equipment, such as the power industry (gas turbines, steam turbines, hydroelectric generators, nuclear power plants, etc.), the oil and gas industry (centrifugal compressors, reciprocating compressors, pumps, gas turbines, etc.), and the chemical and process industries (large compressors, fans, pump sets, etc., for critical equipment).
