The Bently Nevada 114M5330-01 low-voltage DC power module is a power component specifically designed for the 3500 series vibration monitoring system. It features stable power output, wide voltage adaptability, multiple protection functions, and redundant support capabilities, and is suitable for critical equipment monitoring scenarios in industrial environments. Here is the detailed introduction:
I. Product Positioning and Core Functions
114M5330-01 is a dedicated power module for the Bently Nevada 3500 series vibration monitoring system. Its main function is to provide a stable DC power supply for the monitoring modules within the rack (such as vibration sensors, temperature sensors, communication gateways, etc.). The design of this module meets the stringent requirements of industrial environments for power reliability, stability, and safety.

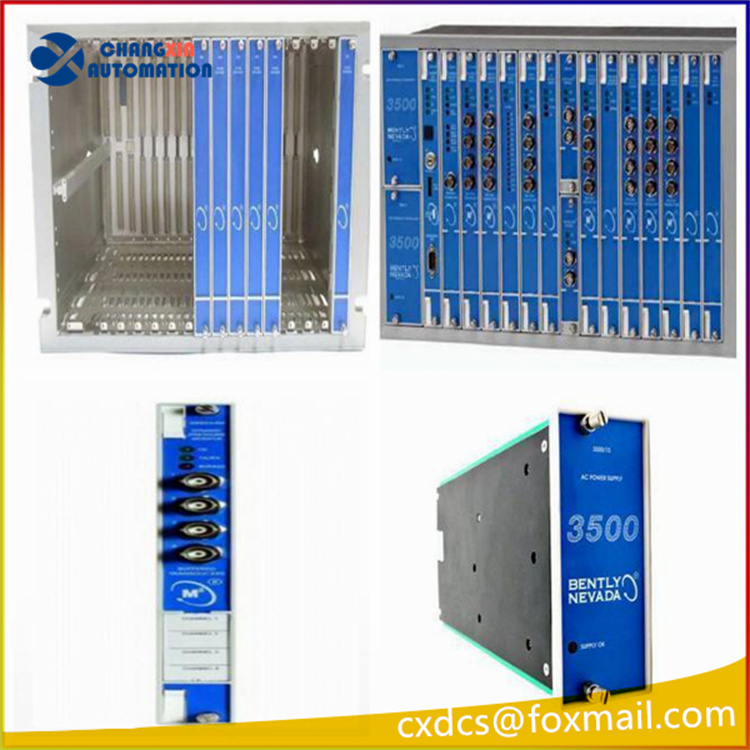

The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack. When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one. Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed. The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System: l Universal AC Power l High Voltage DC Power Supply l Low Voltage DC Power Supply
Key technical features
Low-voltage DC input:
Accepts low-voltage DC input within the range of 20-30 Vdc, compatible with common industrial power supplies (such as 24 Vdc systems).
The input voltage range is flexible, adapting to different power supply conditions to ensure stable system operation.
Power output and conversion:
Converts the input voltage to the precise voltage required by the monitoring module, supporting multi-module collaborative operation.
The output voltage has high stability, avoiding distortion of monitoring data or equipment failure due to voltage fluctuations.
Redundancy support and hot-swapping:
Redundant configuration: The 3500 rack can accommodate two 114M5330-01 modules, with seamless switching between primary and backup power supplies to ensure uninterrupted system operation.
Hot-swappable design: Supports live insertion and removal, eliminating downtime for maintenance or replacement of power modules, reducing downtime.
Protection functions:
Overload protection: Automatically disconnects the power supply or limits the output when the load exceeds the rated range to prevent equipment damage.
Overvoltage protection: Automatically cuts off the power supply when the input voltage exceeds the safety threshold to protect the downstream equipment.
Short-circuit protection: Quickly cuts off the power supply when an output short circuit is detected to prevent the expansion of faults.
Self-monitoring and diagnosis:
The module has built-in self-monitoring function, which can detect whether the output voltage is normal in real time.
The front panel is equipped with an “Power Normal” LED indicator light, providing quick visual status confirmation.
Environmental adaptability:
Complies with industrial-grade design standards, capable of withstanding vibration, shock, high temperatures, etc., in harsh environments.
Wide operating temperature range to ensure stable operation in extreme conditions.
Application scenario
The 114M5330-01 low-voltage DC power supply module is widely used in the following fields:
Power system monitoring:
Provide a stable power supply for the vibration monitoring systems of power plants and substations to ensure real-time monitoring of power equipment status.
Oil and gas industry:
Used for vibration monitoring of equipment such as drilling platforms and oil pipeline pumps to ensure the reliable operation of key equipment.
Metallurgy and mining:
Provide uninterrupted power support in the monitoring of heavy machinery such as mining crushers and ball mills.
Water treatment industry:
Monitor the vibration status of equipment such as pumps and fans to prevent faults from occurring.
Pulp and paper industry:
Suitable for vibration monitoring of equipment such as paper machines and drying machines to optimize production processes.
