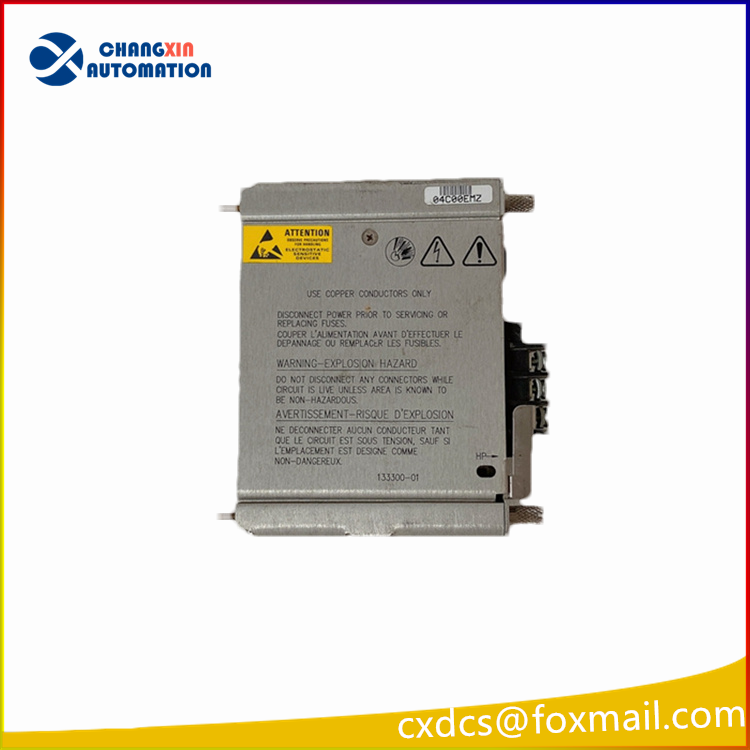

Bently Nevada 133300-01 Power Input Module

Bently Nevada Power Input Module 133300-01

The Bently Nevada? Electronic Overspeed Detection System for the 3500 Series Machinery Detection System provides a highly reliable, fast response,redundant tachometer system intended specifically for use as part of an overspeed protection system. It is designed to meet the requirements of American Petroleum Institute (API) Standards 670 and 612 pertaining to overspeed protection. 3500/53 modules can be combined to form a 2-out-of-2 or a 2-out-of-3 (recommended) voting system. The Overspeed Detection System requires the use of a 3500 rack with redundant power supplies.

Description of Bently Nevada 133300-01:

Place of Origin:USA

Brand Name:Bently Nevada

Model Number:3500/53 133300-01

Guarantee:360 days

Description The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to fully meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. It represents our most capable and flexible system in a traditional rack-based design, and represents numerous features and advantages not provided in other systems.

Features:

Highly Reliable

Fast Response

Combines to Form a 2-Out-Of-2 or 2-Out-Of-3 Voting System

The system’s highly modular design consists of:

3500/05 Instrument Rack (required);

One or two 3500/15 Power Supplies (required);

3500/22M Transient Data Interface or 3500/20 Rack Interface Module (required);

One or two 3500/25 Keyphasor Modules (optional);

3500 Rack Configuration Software (required);

One or more 3500/XX Monitor Modules (required);

One or more 3500/32 4-channel relay modules or 3500/33 16-channel relay modules);

One or more 3500/92 Communication Gateway Modules (optional);

3500/93, 3500/94, or 3500/95 display OR 3500 Operator Display Software running on a compatible PC (optional);

Internal or external intrinsic safety barriers, or galvanic isolators for hazardous area installations (optional)

Others:

3300/35-13-01-01-00-02 330930-065-02-00

3300/15 330905-06-14-10-02-00

3300/12 125720-02

3300/16 18745-03

3300/20-12-01-01-00-00 125704-01

3300/16-15-01-03-00-00-00 3300/20

3300/65-14-01-00-00-01-00 3300/46
