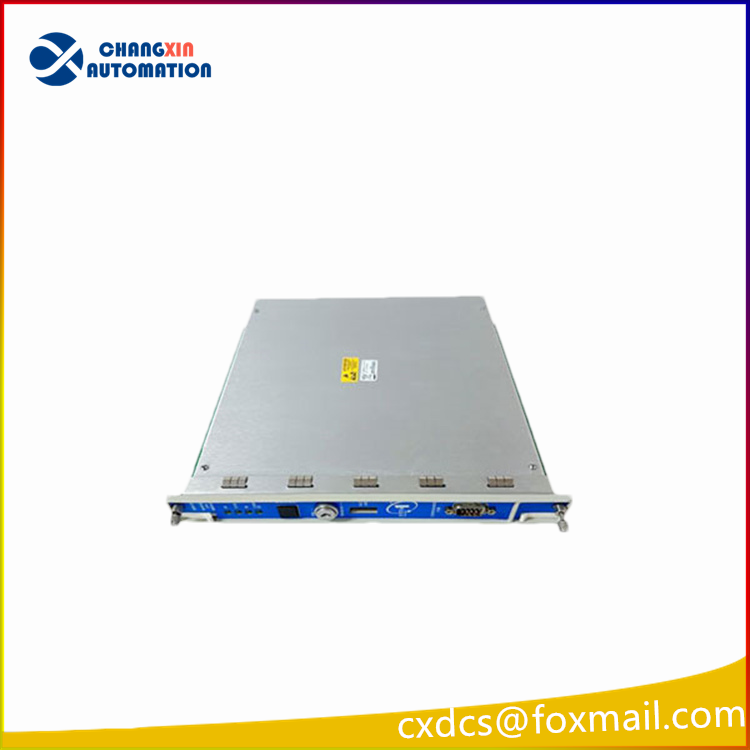

Bently Nevada 135799-01 Display Interface Module

Product Specifications of 135799-01

Manufacturer:Bently Nevada

Part Number:3500/93 135799-01

Description:Display Interface Module

Dimensions:2.5×25.5x24cm

Weight:0.8 kg

The features of this module include:

High reliability: The use of high-quality electronic components and reliable manufacturing processes, with a long service life and high reliability.
Multiple interface types: Multiple types of interfaces CAN be provided, such as RS-232, RS-485, CAN bus, etc., to meet different display device connection needs.
Configurability: The input and output ports can be flexibly configured according to different application requirements to achieve different display and control functions.
Data processing function: The collected data can be processed and analyzed, such as filtering, linearization, data conversion, etc., to ensure the quality and accuracy of the signal.
Remote control function: The control and monitoring of the module can be achieved through remote control, and the automation degree and intelligence level of the system can be improved.

The 3500/93 System Display is designed to meet the requirements of American Petroleum Institute (API) Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including:

§ System Event List

§ Alarm Event Lists

§ All Channel, Monitor, Relay Module, Keyphasor* Module or Tachometer Module data

Other Accessories

135785-01 3500/93 Display Unit, non backlighted

135785-02 3500/93 Display Unit, backlighted

137412-01 3500/93 Manual

135799-01 3500/93 Display Interface Module

135799-02 3500/93 Display Interface Module

135813-01 3500/93 Display Interface I/O Module

175374 ATEX External Power Supply

136634-0010-01 10 Foot (3 metres) Cable (PVC)

136634-0050-01 50 Foot (15 metres) Cable (PVC)

136634-0050-02 50 Foot (15 metres) Cable (Teflon?)

136634-0100-01 100 Foot (30 metres) Cable (PVC)

136634-0100-02 100 Foot (30 metres) Cable (Teflon?)

130121-02-01 500 Foot (152 metres) Extension Cable (PVC)

130121-02-02 500 Foot (152 metres) Extension Cable (Teflon?)

137224-01 System Mounting Assembly (sheet metal for A01 & A05 options)

136977-01 Panel Mounting Clamp (sheet metal for A03 & A07 options)
