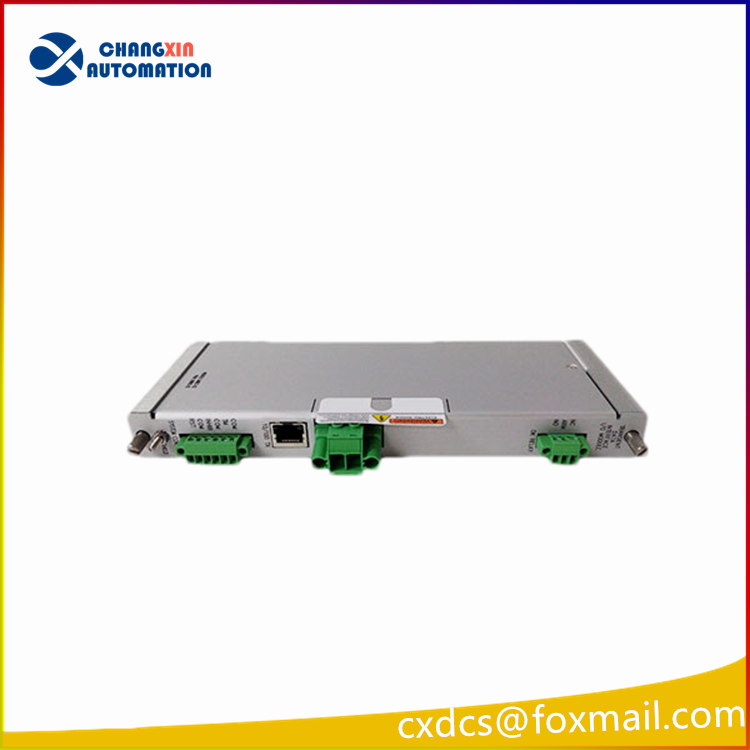

Bently Nevada 146031-01 3500/22 Transient Data Interface Module

product description

The Bently Nevada 146031-01 3500/22 Transient Data Interface Module is a high-performance interface module developed by Bently Nevada. It is mainly used for data acquisition and transmission in the 3500 monitoring system.
I. Functional Features
Data Collection and Transmission:
It can collect steady-state and transient dynamic data, such as waveform data.
The data is transmitted to the host software via Ethernet link, enabling remote monitoring and analysis.
Compatibility:
Compatible with the 3500 monitoring system, supporting system 1 status monitoring and diagnostic software as well as 3500 system configuration software.
Interacts with M-series monitors (such as 3500/40M, 3500/42M, etc.) to achieve real-time data collection and transmission.
Flexibility:
Supports multiple communication protocols, facilitating communication and control with various devices.
Provides optional channel enablement disks for recording dynamic, high-resolution transient data.
High Reliability:
Uses high-quality materials and design, featuring high reliability and long lifespan.
Has fault self-diagnosis function, capable of promptly detecting and reporting fault status.

Technical Specifications
Input/Output Points: Some information mentions that this module has a configuration of 24 inputs/16 outputs, but the specific configuration may vary depending on the model and version.
Operating Voltage: The standard operating voltage may vary depending on the specific model and configuration, but it is usually capable of adapting to voltage fluctuations in industrial environments.
Operating Temperature: The operating temperature range is wide, typically capable of adapting to environmental temperatures ranging from -30°C to +65°C.
Storage Temperature: The storage temperature range is also extensive, typically capable of adapting to environmental temperatures ranging from -40°C to +85°C.
Environmental Humidity: Up to 95% (non-condensing), capable of stable operation in high-humidity environments.

Application fields
The Bently Nevada 146031-01 3500/22 Transient Data Interface Module is widely used in the monitoring and protection of rotating machinery in industries such as petroleum and natural gas, power, metallurgy, and chemical engineering. For example, in the petroleum and natural gas industry, this module can be used for vibration monitoring and data collection of equipment such as oil drilling platforms and natural gas compression units; in the power industry, it can be used for condition monitoring and fault diagnosis of key equipment such as power generators and steam turbines.
