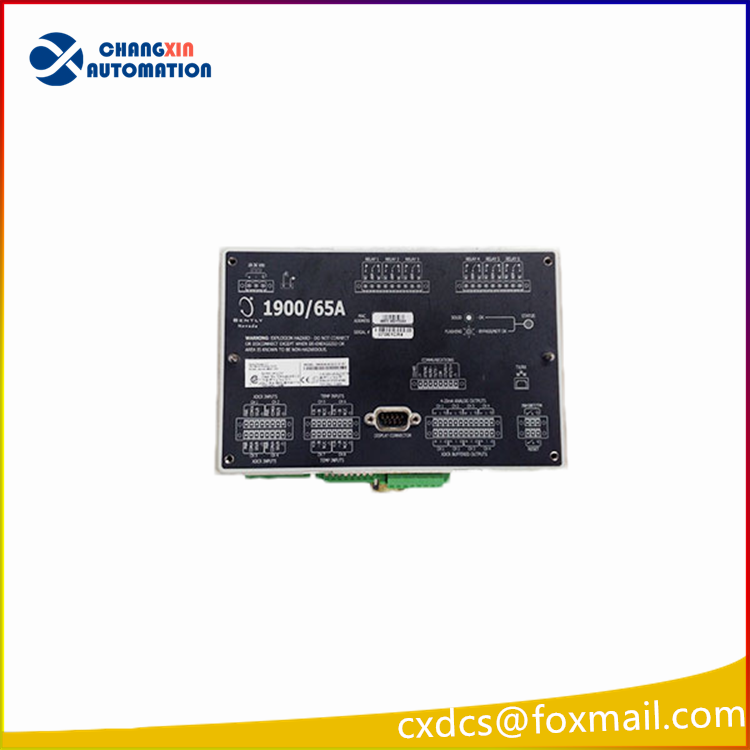

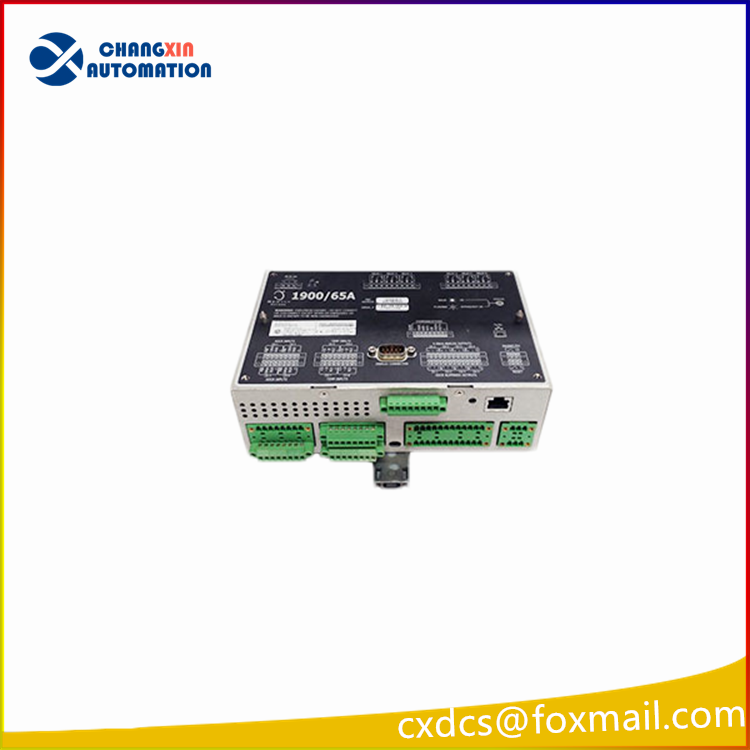

Bently Nevada 1900/65A-00-01-01-00-00 General Purpose Equipment Monitor

PRODUCT DETAIL

Bently Nevada 1900/65A-00-01-01-00-00 General Purpose Equipment Monitor
Description:
The 1900/65A General Purpose Equipment Monitor is a machinery vibration monitor designed to continuously monitor and protect equipment used in a variety of applications and industries. The monitor’s low cost makes it an ideal solution for general-purpose machines and processes that can benefit from continuous monitoring and protection.
Inputs
The 1900/65A provides four transducer inputs and four temperature inputs. Software can configure each transducer input to support 2- and 3-wire accelerometers, velocity sensors or proximity sensors. Each temperature input supports Type E, J, K, and T thermocouples, and 2- or 3-wire RTDs.

Outputs
The 1900/65A provides six relay outputs, four 4-20 mA recorder outputs, and a dedicated buffered output. The user can use the 1900 Configuration software to configure the relay contacts to open or close according to the OK, Alert and Danger statuses of any channel or combination of channels, and to provide data from any variable from any channel on any recorder output. The dedicated buffer output can provide the signal for each transducer input.
A Modbus Gateway option allows the monitor to provide static variables, statuses, event list, time and date information directly to any Modbus client, including Distributed Control Systems (DCSs), Supervisory Control and Data Acquisition (SCADA) systems, Programmable Logic Controllers (PLCs), or System 1 software. The monitor uses an internal counter and a Modbus client/master time reference to generate time and date information. Users can upgrade monitors without the Modbus Gateway by ordering the 1900/01 Communications Upgrade (see the Ordering Information section). The 1900/65A supports Modbus communications via Ethernet and a software-configurable RS232/485 serial port.
Configuration
The user defines monitor operation and the Modbus Gateway register map by using software running on a laptop or PC to create a configuration file and download the file to the monitor through the built-in Ethernet connection. The 1900/65A permanently stores configuration information in non-volatile memory, and can upload this information to the PC for changes.
Display Module
The 1900/65A supports an optional display/keypad to view channel information or make minor configuration changes. This allows the 1900/65A to operate as a stand-alone package. If desired, the user can mount the display up to 75 metres (250 feet) from the Monitor Module.
Ordering Information:
1900/65A-AA-BB-CC-DD-EE

Accessories

168547-0050-02-02 1900/65A Display Module

167699-02 15 m (50 ft) TEF cable,unassembled

168547-0100-01-01 30 m (100 ft) PVC cable,assembled

173400-01 1900/65A Product Manual

172250-01 1900/65 Modbus Gateway Users Guide

168547-0100-01-02 30 m (100 ft) PVC cable, unassembled

173089-01 1900/65A Field Wiring Diagrams

168547-0100-02-01 30 m (100 ft) TEF cable, assembled

02200794 Power supply, 110/220 Vac to 24 Vdc 2.5 A DIN rail mount

168547-0100-02-02 30 m (100 ft) TEF cable, unassembled

02200121 DIN rail end bracket

168547-0250-01-01 75 m (250 ft) PVC cable, assembled

168374 35mm DIN rail mounting clip for 1900/65A Monitor Module

168495 Bulkhead mounting plate

168547-0250-01-02 75 m (250 ft) PVC cable, unassembled

168547-0010-01-01 3 m (10 ft) PVC cable, assembled
