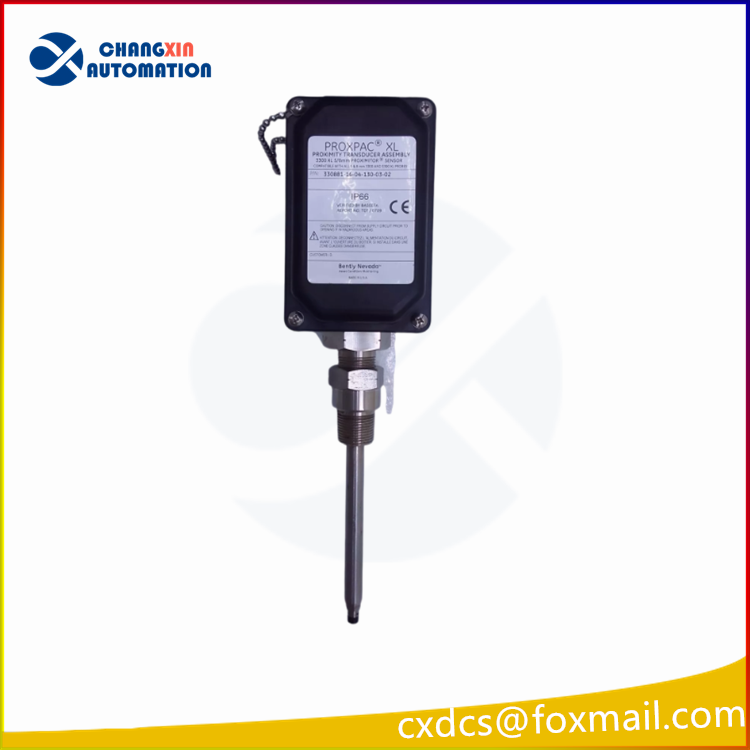

24701-28-10-00-040-00-02 Bently Nevada PROXPAC XL Proximity Transducer Assembly

`Description`

The Bently Nevada 24701-28-10-00-040-00-02 PROXPAC XL Proximity Transducer Assembly is a self‑contained, industrial‑grade vibration and position sensor used

for rotating machinery condition monitoring. It combines a 3300 XL proximitor sensor with an 8 mm proximity probe in one

rugged assembly, eliminating the need for separate proximitor housings or extension cables.

FAQ

1. What exactly is the 24701‑28‑10‑00‑040‑00‑02?

It’s a proximity sensor assembly that includes both a Bently Nevada 3300 XL 8 mm proximity probe and a 24701

stainless‑steel housing for mounting the probe on machinery.

2. What does the part number configuration mean?

Brief breakdown of typical codes (consistent with Bently Nevada 24701 series):

24701: Proximity probe housing family
28: Probe option — 3300 XL 8 mm with connector
10: 1.0 m cable length
00: No standoff adapter (direct mount)
040: ~4 in probe penetration depth
00: No additional fittings
02: 3/4‑14 NPT mounting threads

3. What does the proximity assembly measure?

It detects changes in gap between the probe tip and a rotating target (shaft/shaft component), converting mechanical

position/vibration into an electrical signal used by monitoring systems.
