Description
Product Introduction
The 3300 system has been enhanced to upgrade the computer/communications interface options.
The 3300/03 SDI/DDI communication protocols were released in April
1992 with external SDIX/DDIX, TDIX, and TDXnet? communication processors released in August 1992, July 1993, and December 1997, respectively.
The internal Transient Data-enabled (Tue) communications processor was released in July 2004.
3300 components that have been changed to implement these interface options are the System Monitor, AC and DC Power Supply, Rack Backplane, and individual monitor firmware.
3300 systems that consist of all the upgraded components are referred to as an SDI/DDI system or the system.
The SDI/DDI system uses the 3300/03 System Monitor and the TDe system uses the 3300/02 System Monitor.
The information in this guide is divided into these two sections:
Section 2, System Identification, lists the four configurations of the 3300 Monitoring System which are authorized by Bently Nevada LLC and show how to identify each one.
Identifying your system will help you make decisions about replacement parts and computer/communications interfaces.
Section 3, System Compatibility, describes the compatibility between 3300 systems, communication interfaces, and monitoring and diagnostic software.
Original System
This is the first generation 3300 System. This system may have serial communication capability, but it predates and is not compatible with the internal data interfaces (TDe or SDI/DDI) and most recent external communication processors (SDIX/DDIX, TDIX and
TDXnet? CPs).
The Original System can, however, communicate with a Digital Control System (DCS) or with DM2000 Software through a DDM, PDM, or TDM CP.
These systems can be upgraded to the Mixed System, TDe, or SDI/DDI System configuration, depending on your interface requirements.
Mixed System
This is the Original System with a 3300/03-01 System Monitor that does not have internal SDI/DDI capabilities but can interface to a DDM, TDM, PDM CP.
In order to interface to an SDIX/DDIX, TDIX, or TDXnet? CP, the firmware in each monitor must be SDI/DDI compatible.
SDI/DDI System

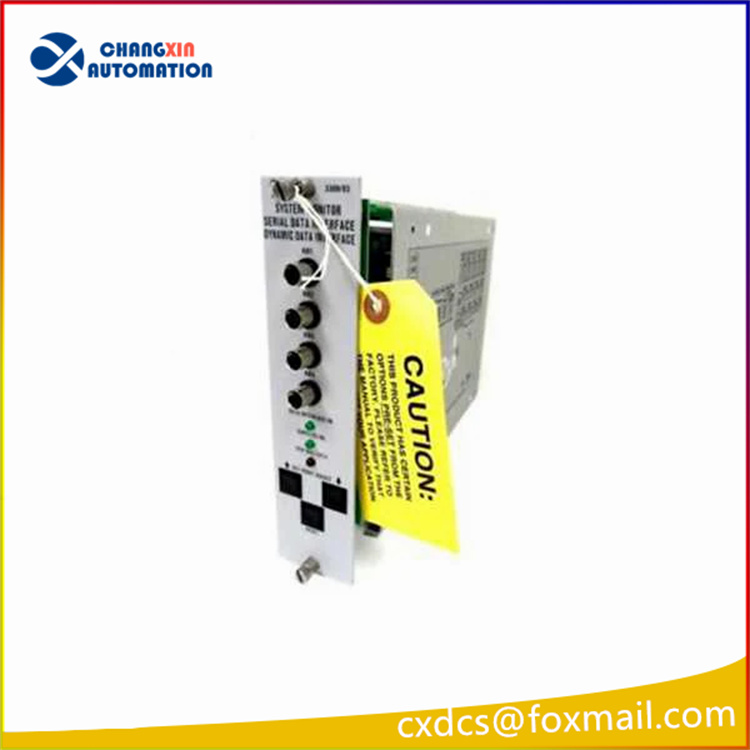

This generation of the 3300 System uses 3300/03 System Monitor.
The System Monitor, Power Supply, and Backplane are all SDI/DDI-compatible, with the System Monitor configured with or without internal SDI/DDI communications and the firmware in each of the monitors is SDI/DDI compatible.
