Description

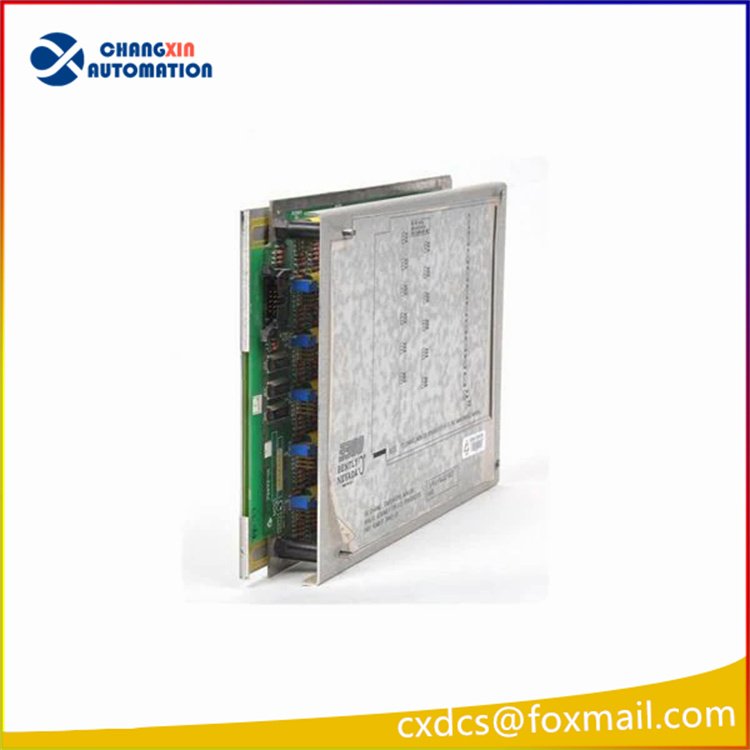

Bently Nevada manufactures the 3300/16-15-01-03-00-00-02, a dual vibration monitor designed for precise and reliable machinery condition monitoring. This device supports two vibration input channels and features a compact, rugged design suitable for harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3300/16-15-01-03-00-00-02 |
| Channels | 2 dual vibration input channels |
| Input Type | Proximity and velocity sensor inputs supported |
| Power Supply | +24 Vdc nominal |
| Output | Analog and relay alarm outputs |
| Dimensions | Standard 3300 series monitor size |
| Weight | Approximately 1.5 kg (3.3 lbs) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Certifications | CSA, ATEX, IECEx |
| Origin | Made in the USA |
Features and Benefits
- Dual input channels provide flexible vibration monitoring options.
- Supports multiple sensor types, including proximity and velocity sensors.
- Rugged construction ensures reliable operation in industrial settings.
- Compact size allows easy integration into existing monitoring racks.
- Outputs include analog signals and relay alarms for versatile system integration.
- Technical Characteristics and Performance Parameters
Modular Design
Half-height, dual-channel structure: Saves frame space and supports flexible expansion.
Building-block architecture: Compatible with other modules of the 3300 system (such as power supply, system monitor), allows on-site expansion of frame size, and reduces long-term usage costs.
Anti-interference Capability
Optimized filtering algorithm: Can accurately identify signals even in strong electromagnetic interference environments (such as power plants, petrochemical workshops).
Low-speed support: Can generate phase-locked pulses stably even in low-speed or mechanical noise scenarios.
Redundancy and Reliability
Main-standby dual-module parallel: Supports dual-module redundant configuration to avoid single-point failure risks.
Triple-module redundancy (TMR) compatibility: In the TMR architecture, two phase-locked modules can work collaboratively to provide dual-phase signal guarantee.
Self-check and Diagnosis
Real-time status monitoring: Directly displays the operating status through front-panel LED lights (OK/TX/RX/channel alarm).
Fault warning: When a probe open circuit, short circuit or signal out of range is detected, it immediately triggers system event recording and activates alarm logic.
