Description

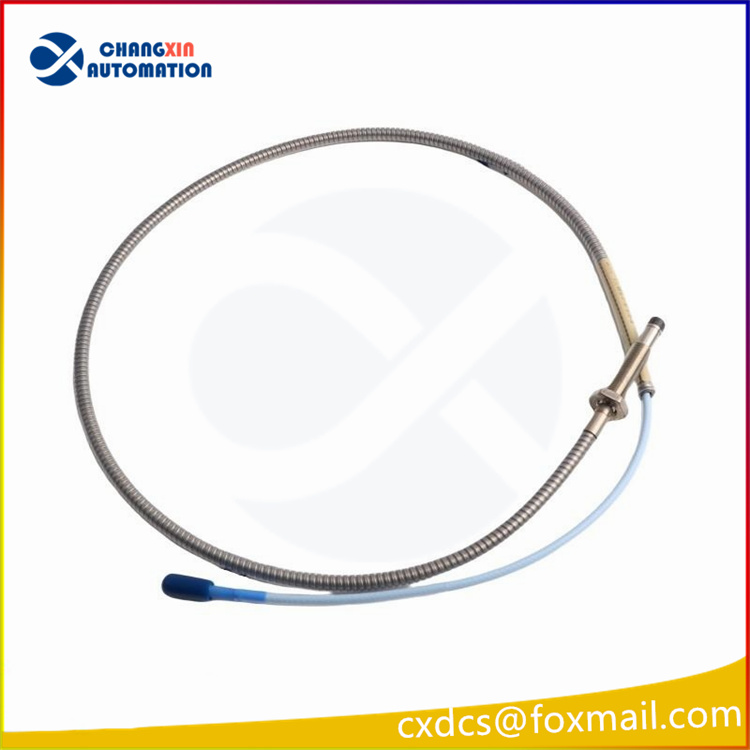

The Bently Nevada 330103-00-04-10-01-00 is a high-precision non-contacting proximity probe from the 3300 XL series. It is engineered for vibration and position measurements on fluid-film bearing machines. Its design ensures reliable and accurate monitoring even in demanding industrial conditions.
Technical Specifications
Probe Materials
- Probe Tip: Polyphenylene sulfide (PPS) for high resistance and durability
- Probe Case: AISI 303 or 304 stainless steel (SST) for corrosion resistance
- Weight: 423 g (0.423 kg)
Part Number Breakdown
- 330103: Product family and type
- 00: Unthreaded length option (0.0 inches)
- 04: Overall case length (40 mm)
- 10: Total length (1.0 m / 3.3 ft)
- 01: Miniature coaxial ClickLoc connector with connector protector and FluidLoc cable
- 00: No agency approval required
Performance Characteristics
- Operating Temperature: +18°C to +27°C (+64°F to +80°F)
- Maximum Altitude: 2000 meters
- Power: -24 V DC, 10 kΩ load, with AISI 4140 steel target
- Probe Gap: 1.27 mm (50 mils)
Electrical Specifications
- Proximitor Sensor Input: Supports 3300-series 5 mm or 3300 XL 8 mm Proximity Probes and extension cables
- Power Supply:
- Voltage Range: -17.5 V DC to -26 V DC (non-incendive circuit)
- Maximum Current: 12 mA
- Operates at -23 V DC to -26 V DC with barriers
- Sensitivity: Less than 2 mV output change per volt input change
- Output Resistance: 50 Ω
Applications
- Rotating Equipment Monitoring: Enables early detection of unbalance, misalignment, or bearing wear.
- Machine Health Diagnostics: Provides precise data for predictive maintenance systems.
- Industrial Environments: Built to perform reliably in oil & gas, power generation, and heavy machinery sectors.
-
Features
- Non-contact vibration measurement ensures minimal wear and high reliability.
- Robust stainless steel case with armor for durability in industrial settings.
- Wide operating temperature range suitable for harsh environments.
- High accuracy with ±0.005 inch resolution for precise machinery monitoring.
