Description

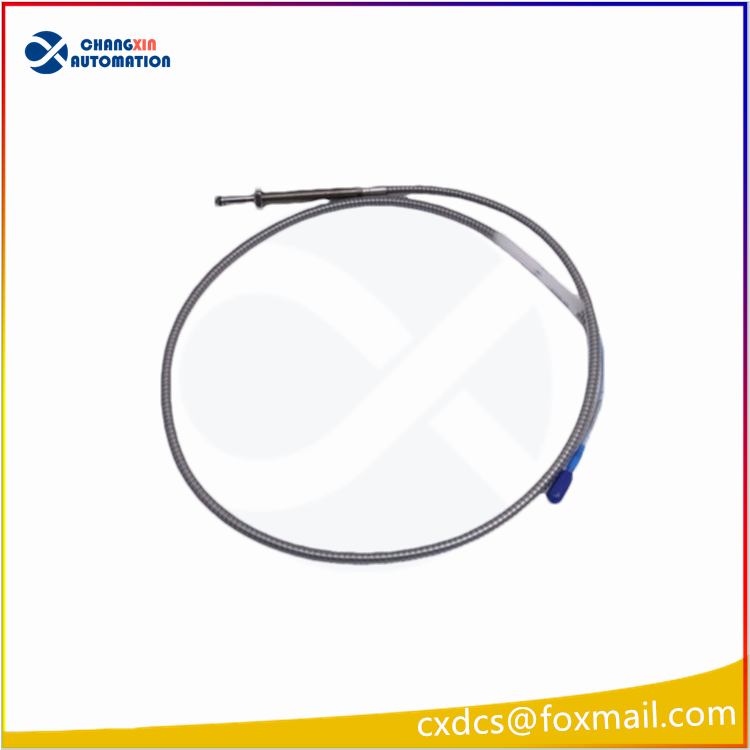

The Bently Nevada 3300 XL 8 mm Proximity Probe (Part No. 330103-00-07-10-02-05) is a high-performance industrial sensor used for measuring radial displacement, position, and vibration in rotating machinery. This probe is specifically designed for precision monitoring in harsh environments, ensuring reliable performance and durability. Made in the USA, it offers superior build quality and is ideal for a wide range of machinery protection and monitoring applications.
Key Features
- High-Quality Materials: Probe tip made of Polyphenylene Sulfide (PPS) and the case crafted from AISI 303 or 304 stainless steel (SST) for enhanced durability.
- Precision Monitoring: Provides accurate vibration and position measurements for critical machinery.
- Wide Compatibility: Compatible with Bently Nevada 3300 XL series systems for seamless integration.
- Industry Certifications: CSA, ATEX, IECEx approvals ensure compliance with international safety standards.
- Sealing Technology: Viton® O-ring for sealing between the probe tip and case to prevent leakage of differential pressure.
- Compact Design: The probe features a miniature ClickLoc™ coaxial connector for easy connection and installation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-07-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Country of Manufacture | Made in U.S.A. |
| Unthreaded Length Option | 00 = 0 mm |
| Overall Case Length Option | 07 = 70 mm |
| Total Length Option | 10 = 1.0 meter (3.3 feet) |
| Connector and Cable Type | 02 = Miniature coaxial ClickLoc™ connector, standard cable |
| Agency Approval Option | 05 = CSA, ATEX, IECEx approvals |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel (SST) |
| Probe Pressure | Sealed differential pressure, Viton® O-ring for sealing |
| Weight | 0.323 kg |
| Shipping Weight | 1.3 kg |
Applications
The Bently Nevada 3300 XL 8 mm Proximity Probe is widely used in the following applications:
- Vibration Monitoring: Ideal for monitoring radial vibration in rotating machinery.
- Axial Position Measurement: Measures the axial position of shafts or other rotating components.
- Machinery Protection: Prevents equipment failure by detecting misalignments, vibrations, or changes in position early.
- Industrial Settings: Used across industries such as power generation, oil and gas, and manufacturing, ensuring reliable machinery performance.
