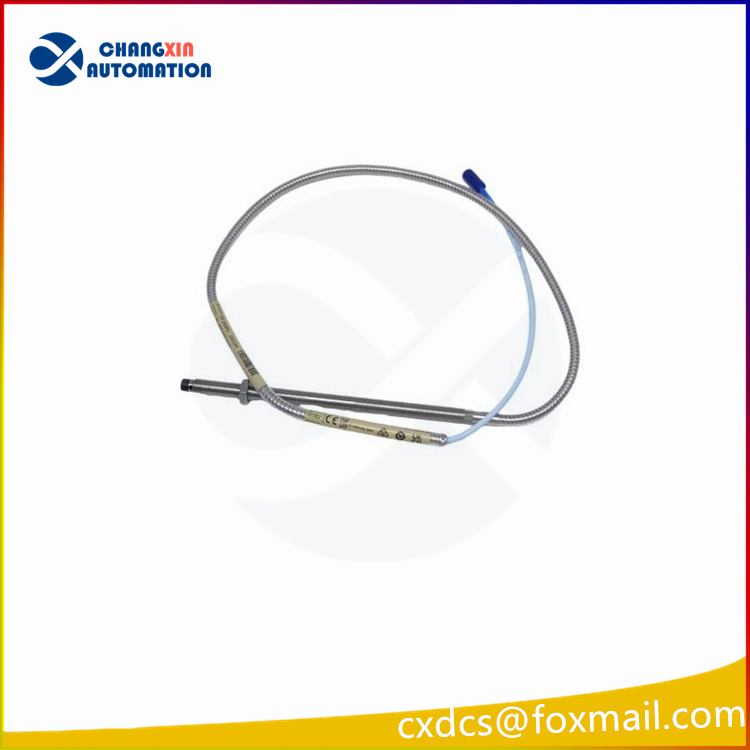

▲ Bently Nevada 330104-00-20-15-12-05 Proximity Probe
| 330104 3300 XL 8 mm Probe, M10 x 1 thread, with armor | |
| Part Number-AA-BB-CC-DD-EE | |
| A: Unthreaded Length Option | |
| 00 | 0 mm |
| B: Overall Case Length Option | |
| 20 | 200 mm |
| C: Total Length Option | |
| 05 | 0.5 meter (20 in) |
| 10 | 1.0 meter (39 in) |
| 15 | 1.5 meter (4.9 feet) |
| 20 | 2.0 meters (6.6 feet) |
| 50 | 5.0 meters (16.4 feet) |
| 90 | 9.0 meters (29.5 feet) |
| D: Connector and Cable-Type Option | |
| 01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| 02 | Miniature coaxial ClickLoc connector, standard cable |
| 11 | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
| 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E: Agency Approval Option | |
| 00 | Not required |
| 05 | CSA, ATEX, IECEx Approvals |

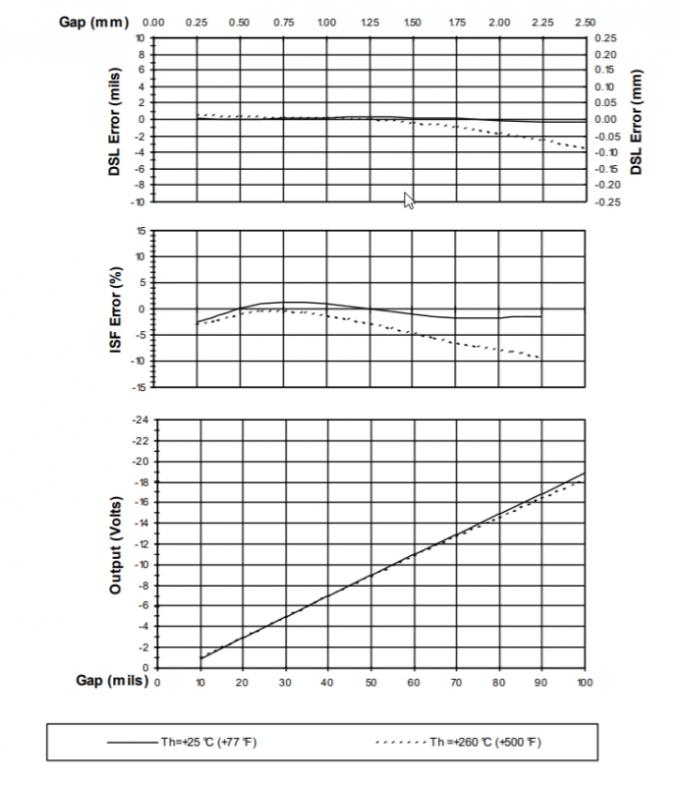

Description:
The 3300 XL 8 mm Proximity Transducer System consists of:
- One 3300 XL 8 mm probe
- One 3300 XL extension cable1 , and
- One 3300 XL Proximitor Sensor.
- Probe tip, 8.0 mm (0.31 in) diameter
- 9/16 in for 3/8-24 threads, M17 for M10 threads (see Note 2)
- Case thread
- 5/16 in wrench flats for 3/8-24 threads; 8mm wrench flats for M10 threads.
- 75 Ω cable, 3.68 mm (0.145 in) maximum outside diameter, 3.94 mm (0.155 in) maximum outside diameter for FluidLoc cable, 7.67 mm (0.302 in) outside diameter of armor, 9.5 mm (0.38 in) maximum diameter of armor ferrule
- Miniature male coaxial connector, 7.24 mm (0.285 in) maximum outside diameter “D”
- Unthreaded length “A”
- Case length “B”
- 6.0 mm (0.235 in) maximum
- Total length “C”, +30%, -0%3
