The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip. You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.
The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors. These connectors require only finger-tight torque (the connectors will “click” when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal. You can order the 3300 XL 8 mm probes and extension cables with connector protectors already installed. We can also supply connector protectors separately for field installations (such as when an application must run the cable through restrictive conduit). We recommend connector protectors for all installations to provide increased environmental protection8.
Application scenario

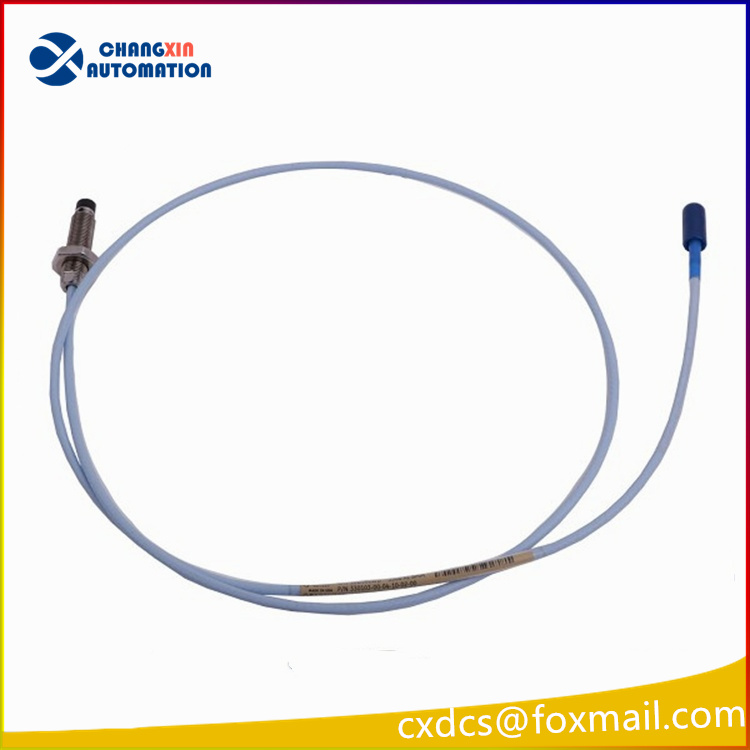

The Bently Nevada 330103-00-09-10-02-05 probe is widely used in the following fields:
Rotating machinery monitoring: Monitoring of shaft vibration and shaft displacement for rotating machinery such as steam turbines, hydro turbines, fans, compressors, etc.
Mechanical protection: As part of the mechanical protection system, it monitors the operating status of mechanical equipment in real time. When the monitored parameters exceed the preset threshold, it can trigger an alarm or shutdown signal to protect the equipment safety.
Predictive maintenance: By long-term monitoring of vibration and displacement data of mechanical equipment, analyzing the operation trend of the equipment, it helps users formulate reasonable maintenance plans, detect potential faults in advance, reduce unplanned downtime, and lower maintenance costs.
System composition
The Bently Nevada 330103-00-09-10-02-05 probe is usually used in conjunction with the following components to form a complete sensor system:
Extension cable: Used to connect the probe with the preamplifier to transmit measurement signals.
Preamplifier: Amplifies and filters the signal output by the probe, and outputs standard voltage or current signals for use in the monitoring system.
