Description

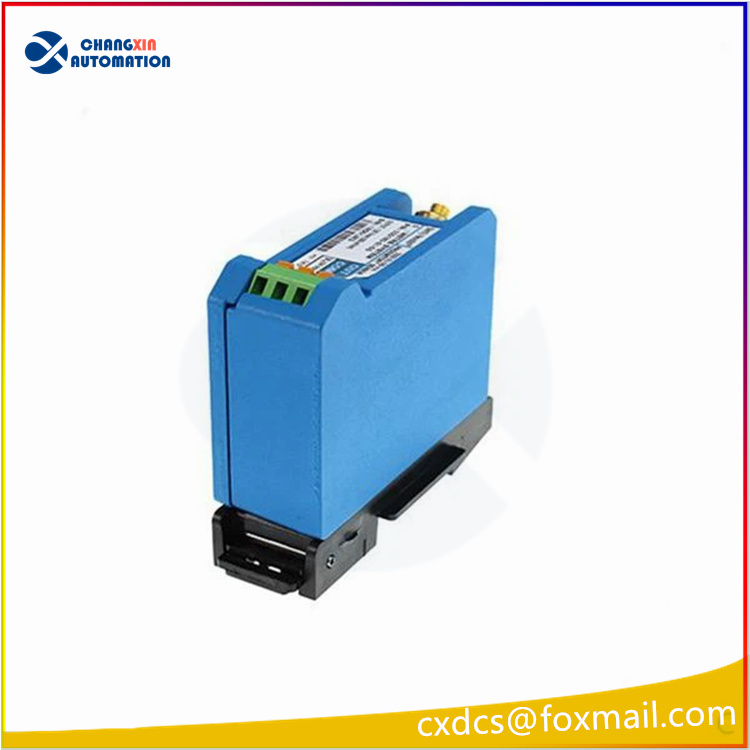

330180-51-05 Bently Nevada 3300XL 5 Metre Proximity Sensor
Bently Nevada 330180-51-05 3300 XL Proximitor Sensor, CSA, ATEX, IECEx Approvals | 5.0 Meter (16.4 feet) System Length, DIN Mount Simple Type: Proximity Sensors
Quick Details
Condition: In stock and new with factory sealed
Lead time: within 3 days after payment
Ship: can delivery to all over the world by DHL/Fedex/UPS
Our service: 365 days warranty from delivery date
General Specifications
Current Limiting: 23 mA typical
Frequency Response: 5 Hz to 6,000 Hz +0, -3 dB
Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Leadwire Length: Maximum for Proximitor Sensor Output (BNC connector), maximum cable distance is 3 meters
Loop Accuracy: Within ±1.5% over specified full-scale range
Maximum Loop Resistance: 1,000 O including cable at 35 Vdc
Minimum Target Size: 9.5 mm diameter
Power: Requires +12 to +35 Vdc input at the transmitter terminal
Signal Output: 4-20 mA
Temperature Stability: Incremental scale factor remains within ±10% of 7.87 mV/µm from 0 °C to +70 °C
Zero and Span: Non-interacting external adjustments
