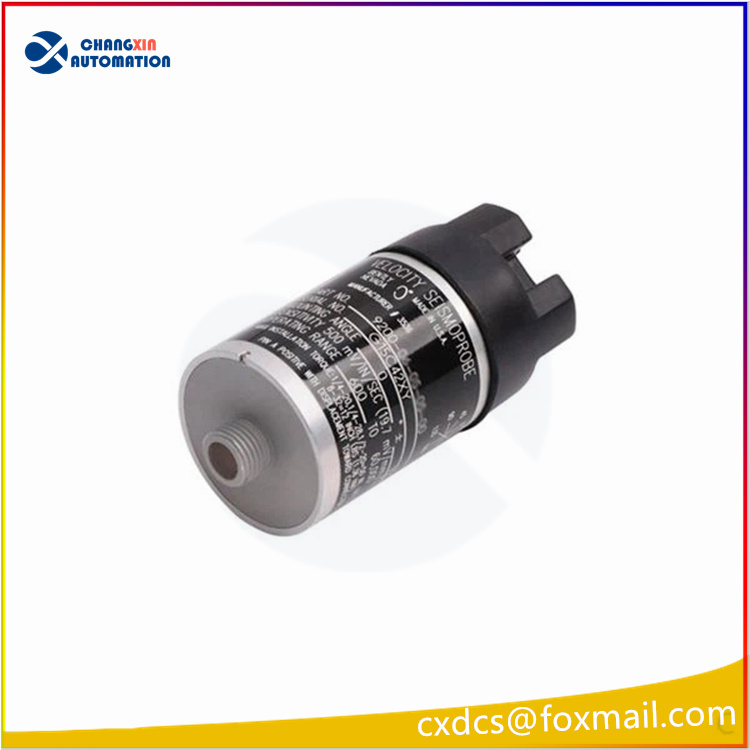

BENTLY NEVADA 330500-02-RU is a piezoelectric velocity sensor produced by BENTLY NEVADA COMPANY. It is mainly used for vibration measurement and condition monitoring of rotating machinery, and is particularly suitable for machines with rolling bearings. The detailed introduction is as follows:
Technical parameters:
Sensitivity: 3.94 mv/mm/s (100 mv/in/s) ± 5%.
Frequency range: 4.5 Hz to 5 kHz ± 3.0 dB; 6.0 Hz to 2.5 kHz ± 0.9 dB.
Measurement range: Capable of measuring absolute (relative to free space) vibration of bearing housings, shells or structures.
Maximum peak speed: 1270 mm/s (50 in/s).
Maximum cable length: 305m (1,000 ft).
Operating temperature range: -55°C to 121°C (-67°F to 250°F).
Installation thread adapter: M8 x 1.
Overall dimensions: Height 63.2 mm (2.49 in), diameter 25.3 mm (0.995 in).
Weight: 0.142 kg (0.31 lb)
Product features:
Durable and reliable: With a stainless steel casing, combined with environmental protection connectors and cable assemblies, when installed correctly, it can meet the protection requirements of IP-65 and NEMA 4X, and can be used in humid environments without the need for additional enclosure protection.
Accurate measurement: Capable of precisely measuring mechanical vibration parameters, providing reliable data for equipment condition monitoring.
Reliable design: Utilizing a solid-state design, integrating embedded electronic components, without moving parts, it is less susceptible to mechanical performance degradation and wear, and can be installed vertically, horizontally, or at any angle.
Good compatibility: Can be used in conjunction with various vibration monitoring modules from Bently Nevada, such as 3500/42M, etc.
Description
Bently Nevada Velomitor Piezo-velocity Sensors are designedto measure absolute (relative to free space) bearing housing,
casing, or structural vibration. The 330500 is a specializedpiezoelectric accelerometer that incorporates embeddedintegrated electronics in a solid-state design.Because the 330500 incorporates solid-state electronics andhas no moving parts, it does not suffer from mechanicaldegradation and wear, and can be mounted vertically,horizontally, or at any other angle of orientation
