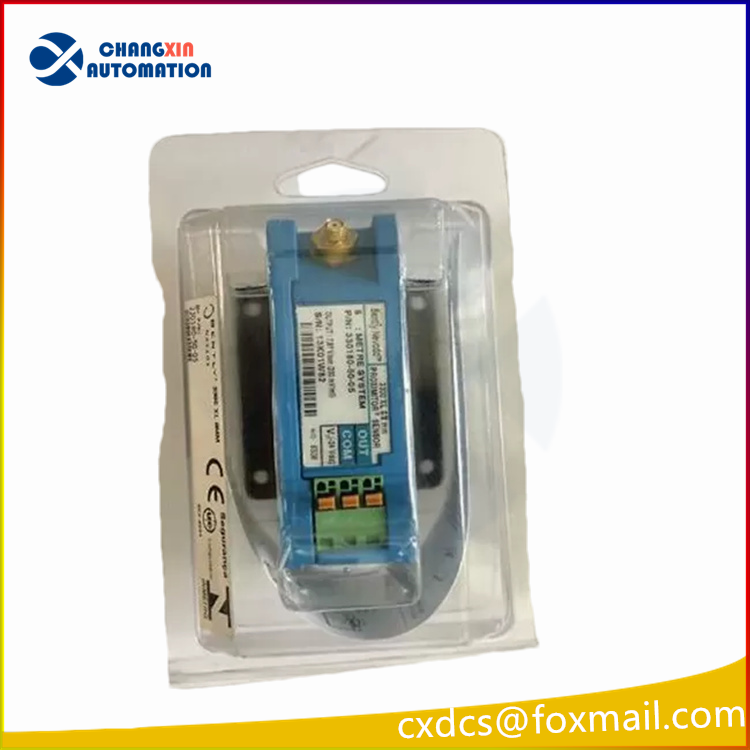

Bently Nevada 330850-51-05 3300 XL 25 mm Proximitor Sensor

Bently Nevada 330850-51-05 3300 XL 25 mm Proximitor Sensor Key Information Summary
I. Product Basic Information
Model: 330850-51-05
Series: 3300 XL 25 mm
Type: Proximitor Sensor (Frontier/Signal Processor)
Brand: Bently Nevada (now a brand under Baker Hughes)
Origin: United States
Core Functions:
Provide signal processing and power support for the 3300 XL 25 mm eddy current sensor.
Convert the gap voltage signal collected by the sensor into a standard voltage output (such as -24V DC power supply, output proportional to the displacement).
Support mechanical condition monitoring such as differential expansion (DE), axial displacement, vibration, etc.

Technical Specifications and Performance Electrical parameters:
Power supply voltage: -24V DC (standard industrial-grade power supply).
Output signal: Linear voltage output (such as 0.787 V/mm or 20 mV/mil), the specific ratio varies depending on the configuration.
Linear range: 12.7 mm (500 mil), suitable for medium and large-sized unit differential expansion measurement.
Environmental adaptability:
Operating temperature: -51°C to +177°C (-60°F to +351°F), adaptable to extreme industrial environments.
Explosion-proof certification: Supports CSA/NRTL/C certification, suitable for hazardous areas (such as explosive gas environments).
Mechanical characteristics:
Package size: 20.4 cm × 22.2 cm × 3.7 cm (length × width × height), compact design for easy installation.
Protection level: Complies with industrial standards, dustproof and waterproof (specific level needs to refer to the product manual).
Compatibility:
Fully compatible with 3300 XL 25 mm probe and extension cable, supports hot plugging and plug-and-play.
Complies with API 670 standards (mechanical configuration, linear range, accuracy, temperature stability, etc.)
