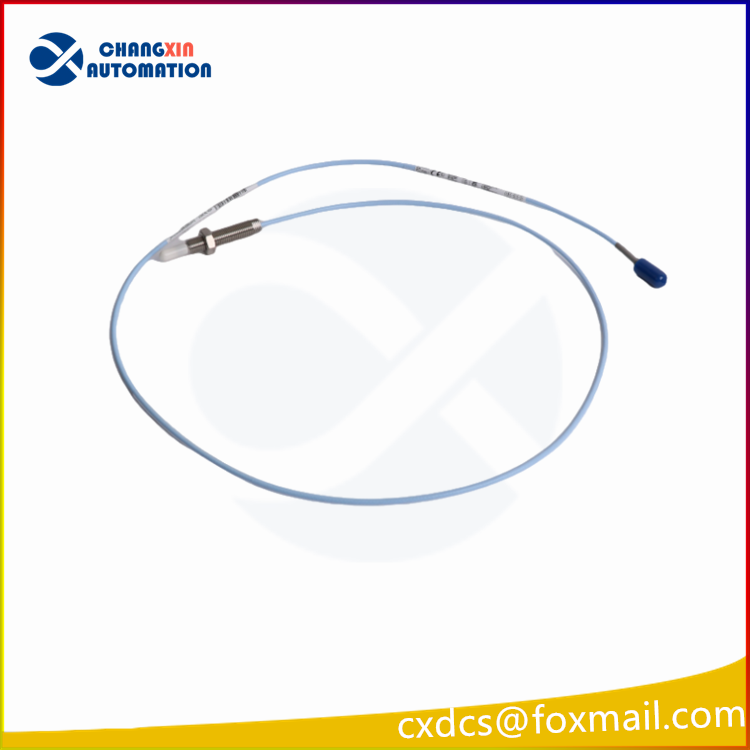

Bently Nevada 330908-39-71-05-01-00 Proximity Probe
Additional Information:
| Description |
| One-meter systems do not use an extension cable. |
| Proximitor sensors are supplied by default from the factory calibrated to AISI 4140 steel. Calibration to other target materials is available upon request. |
| Consult Bently Nevada Applications Note, Considerations when using Eddy Current Proximity Probes for Overspeed Protection Applications, when considering this transducer system for tachometer or overspeed measurements. |
| 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components. |
| Mixing XL and non-XL 3300-series 5 mm and 8 mm system components limits system performance to the specifications for the nonXL 3300 5 mm and 8 mm Transducer System. |
| The 3300-series 5 mm probe (refer to Document 141605) uses smaller physical packaging, but does not reduce the side view clearances or tip-to-tip spacing requirements as compared to an 8mm probe. |
| 8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip. |
| Each 3300 XL extension cable includes silicone tape that you can use instead of connector protectors. |
Description:
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.
The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.
Product Details:
| Brand Name | Bently Nevada |
| Model | 3300XL |
| Ordering information | 330104-00-04-10-02-00 |
| Catalog | 3300XL |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
