Bently Nevada 330980-50-00 Proximity Sensor

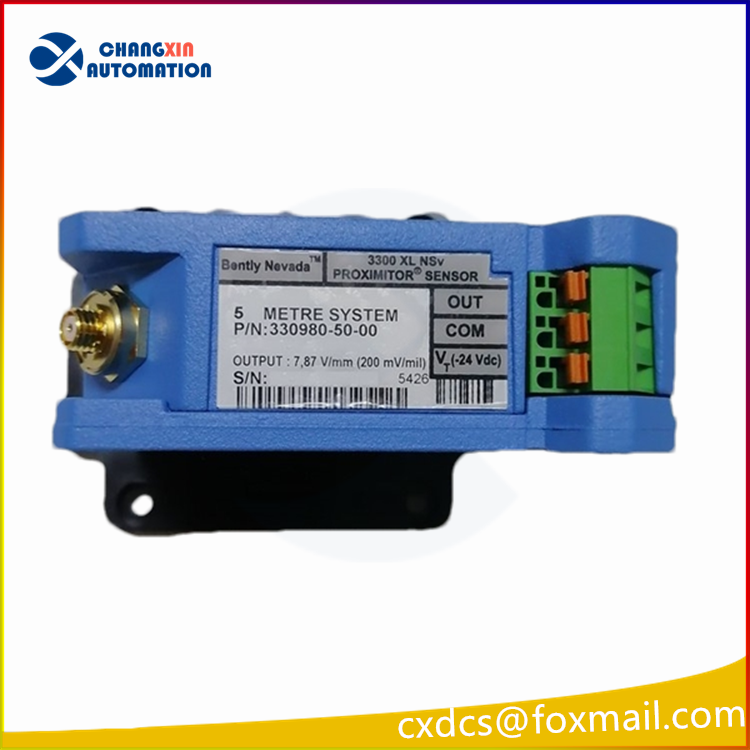

Bently Nevada 3300XL NSV 330980-50-00 Proximity Sensor

Part Number:330980-50-00 330980-50-CN

Manufacturer:Bently Nevada

Estimated Lead Time : Contact

Manufacturer : Bently Nevada

Product No. : 330980-50-00 330980-50-CN

Product type : 3300 XL NSv Proximitor Sensor

Made in U.S.A

Can add on Certificate Of Origin (COO)

Total Length and Mounting Option : 50 = 5.0 metre (16.4 feet) system length, panel mount

Agency Approval Option : CN = Approvals country specific (CN Approvals Option Quick Reference Guide and Field Notification Letter are in the download section)

Operating Temperature: -35°C to +85°C (-31°F to +185°F)

Storage Temperature: -51°C to +105°C (-60°F to +221°F)

Proximitor Sensor Material: A380 aluminum

Proximitor Sensor Input : Accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable.

Power : Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.

Weight : 0.2 Kg

Shipping weight : 1.5 Kgs

Bently Nevada 3300XL NSV 330980-50-00 Proximity Sensor 330980-50-00. I am interested in buying 13 Pieces. KIT, 4 PROXIMITOR 330180-50-05 / 3300 XL PROXIMITOR 3300 XL SERIES ACIER 4140 CALIBRATION STANDARD TOTAL LENGTH & MOUTING: 5 METRE PANEL MOUNT AGENCY APPROVAL: MULTIPLE APPROVALS.
